AJ-64 Conveyor Series Technical Manual 7610-003-30-93
Issued: 05-02-2006 Revised: N/A
SECTION 5: PARTS SECTION
84

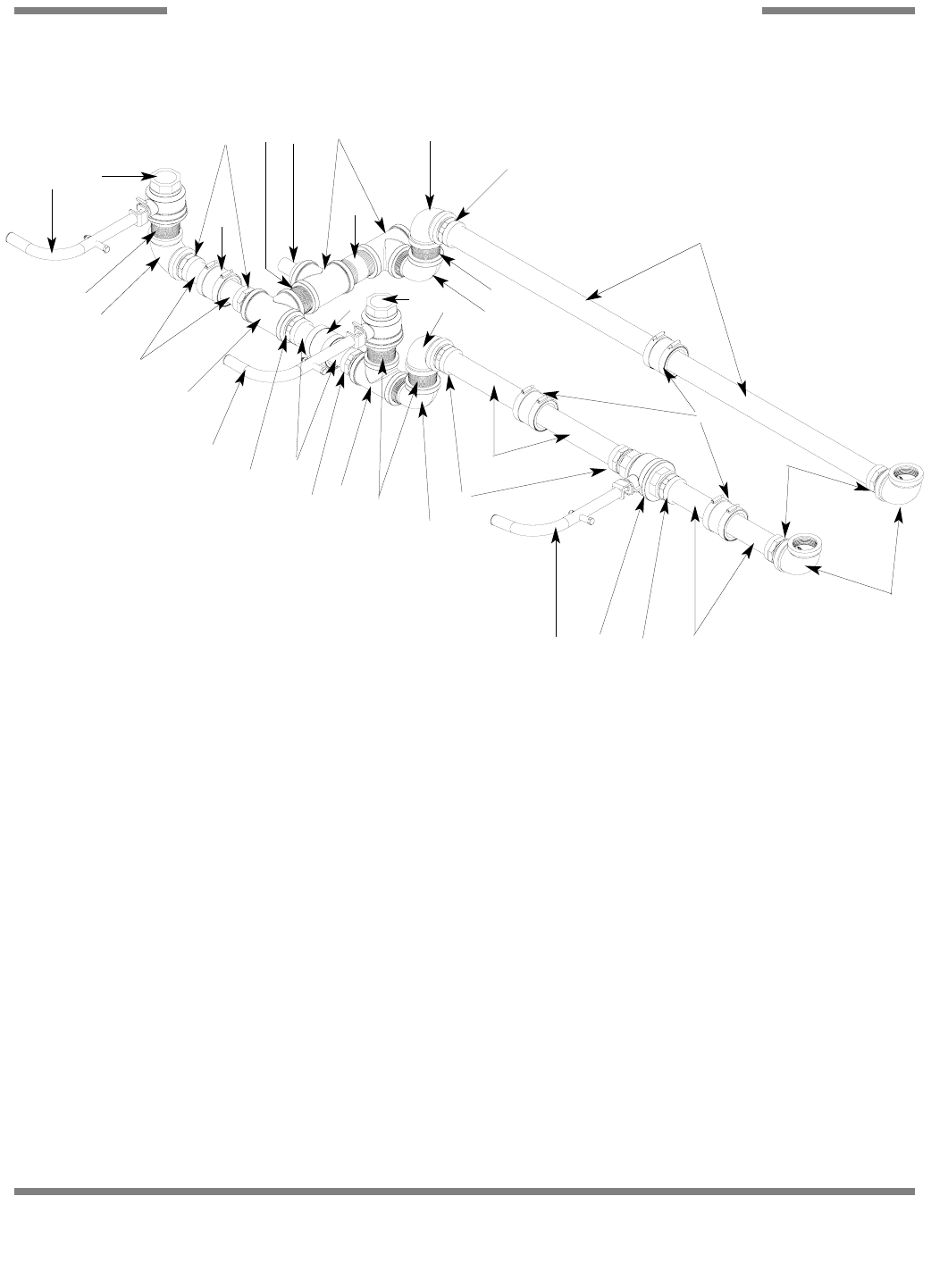

AJ-86 & AJ-100 DRAIN PLUMBING ASSEMBLY (RIGHT TO LEFT MODELS)
ITEM QTY DESCRIPTION Mfg. No.
1 2 Ball Valve Handle Assembly 05700-021-83-53
Spacer (Not Shown) 05700-002-87-05
2 1 Ball Valve Handle Assembly 05700-021-84-74
Spacer (Not Shown) 05700-002-87-05
3 5 Elbow, 1-1/2” FNPT, 90°, Brass 04730-011-73-77
4 10 Adapter, 1-1/2” NPT 04730-401-25-01
5 2 Tube, 1-1/2” x 20-1/8” Long (AJ-86 Models) 05700-021-84-29
2 Tube, Copper, 1-1/2” x 27-1/2” Long (AJ-100 Models) 05700-021-84-28
6 5 Connector, No Hub, 1-1/2” 04720-604-06-00
7 5 Nipple, 1-1/2” NPT, Brass, Close 04730-207-40-00
8 4 Tee, 1-1/2” NPT x 1-1/2” NPT x 1-1/2” NPT 04730-011-69-93
9 1 Nipple, 1-1/2” NPT x 3 Long, Brass 04730-011-87-04
10 1 Rinse Nipple Weldment 05700-021-84-61
11 4 Tube, Copper, 1-1/2” x 2” Long 05700-011-87-16
12 2 Elbow, 1-1/2” NPT, 90°, Brass, Street 04730-206-32-00
13 2 Tube, Copper, 1-1/2” x 7-3/4” Long (AJ-86 Models) 05700-021-84-24
2 Tube, Copper, 1-1/2” x 13-3/4” Long (AJ-100 Models) 05700-021-88-17
14 3 Valve, Ball, 1-1/2” NPT 04820-011-71-46
15 2 Tube, Copper, 1-1/2” x 4-7/16” Long (AJ-86 Models) 05700-011-84-22
2 Tube, Copper, 1-1/2” x 5-1/4” Long (AJ-100 Models) 05700-002-79-12
1
1
2
14
7
3
3
4
15
414
5
6
11
4
4
13
6
12
12
4
8
8
7
7
10
14
3
3
9
8
7
4
11
6
4
