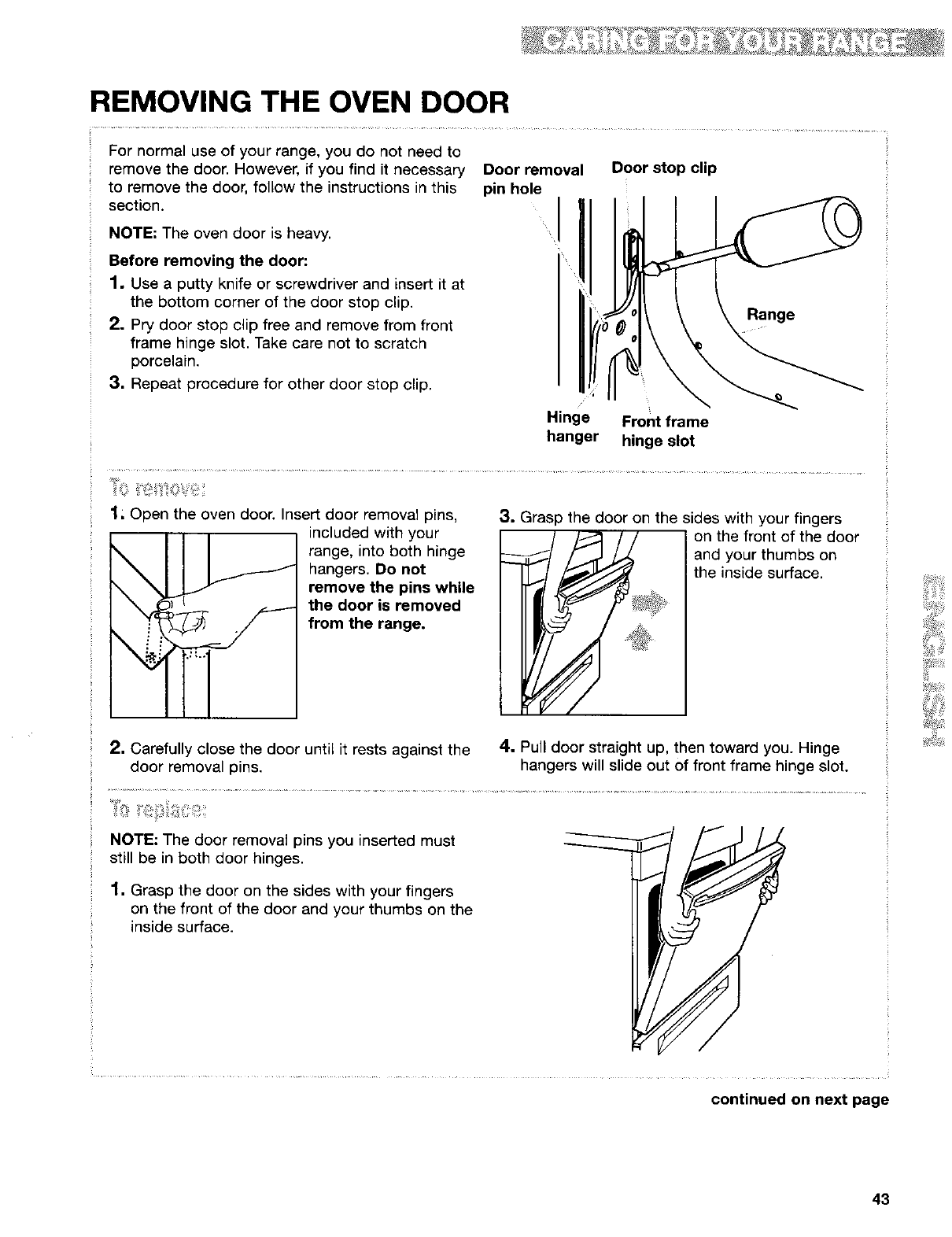

REMOVING THE OVEN DOOR
For normal use of your range, you do not need to
remove the door. However, if you find it necessary Door removal
to remove the door, follow the instructions in this pin hole
section.
NOTE; The oven door is heavy.
Before removing the door:
1. Use a putty knife or screwdriver and insert it at
the bottom corner of the door stop clip.
2. Pry door stop clip free and remove from front
frame hinge slot. Take care not to scratch
porcelain.
3. Repeat procedure for other door stop clip.
Door stop clip
Range
Hinge Front frame
hanger hinge slot
1; Open the oven door. Insert door removal pins,
included with your
range, into both hinge
hangers. Do not
remove the pins while
the door is removed
from the range.
3. Grasp the door on the sides with your fingers
on the front of the door
and your thumbs on
the inside surface.
2. Carefully close the door until it rests against the
door removal pins.
4. Pull door straight up, then toward you. Hinge
hangers will slide out of front frame hinge slot.
NOTE: The door removal pins you inserted must
still be in both door hinges.
1. Grasp the door on the sides with your fingers
on the front of the door and your thumbs on the
inside surface.
continued on next page
43
