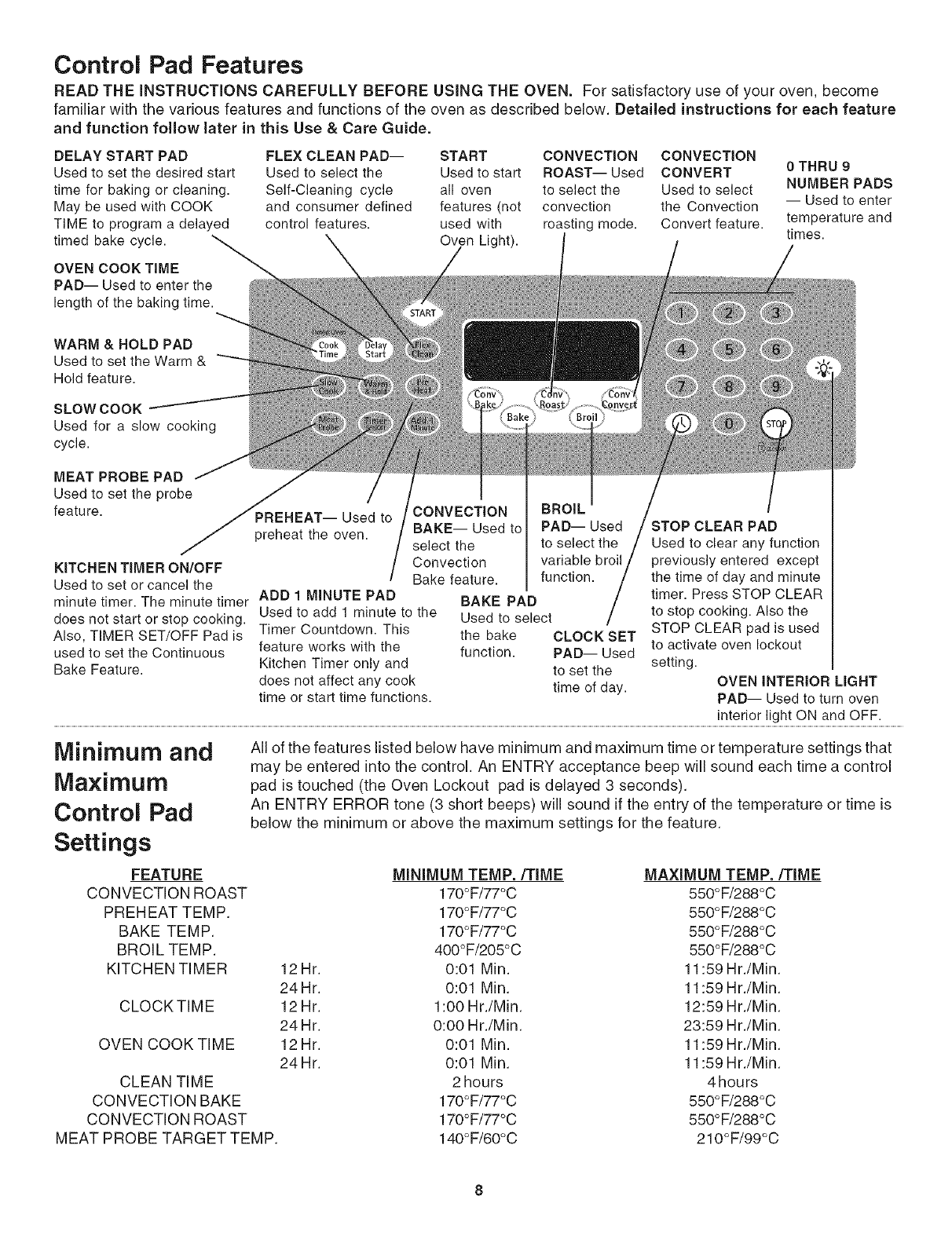

Control Pad Features
READ THE iNSTRUCTiONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become
familiar with the various features and functions of the oven as described below. Detailed instructions for each feature
and function follow later in this Use & Care Guide.
DELAY START PAD
Used to set the desired start
time for baking or cleaning.
May be used with COOK
TIME to program a delayed
timed bake cycle.
FLEX CLEAN PAD-- START CONVECTION CONVECTION
Used to select the Used to start ROAST-- Used CONVERT 0 THRU 9
Self-Cleaning cycle all oven to select the Used to select NUMBER PADS
and consumer defined features (not convection the Convection -- Used to enter
control features, used with roasting mode. Convert feature, temperature and
Oven Light). times.
OVEN COOK TIME
PAD-- Used to enter the
length of the baking time.
WARM & HOLD PAD
Used to set the Warm &
Hold feature.
SLOW COOK
Used for a slow cooking
cycle.
MEAT PROBE PAD
Used to set the probe
feature.
preheat the oven.
KITCHEN TIMER ON/OFF
Used to set or cancel the
minute timer. The minute timer ADD 1 MINUTE PAD
does not start or stop cooking. Used to add 1 minute to the
Also, TIMER SET/OFF Pad is Timer Countdown. This
used to set the Continuous feature works with the
Bake Feature. Kitchen Timer only and
does not affect any cook
time or start time functions.
;ONVECTION BROIL
BAKE-- Used to
select the
Convection
Bake feature, function.
BAKE PAD
Used to select
the bake CLOCK SET
function. PAD-- Used
to set the
time of day.
STOP CLEAR PAD
Used to clear any function
previously entered except
the time of day and minute
timer. Press STOP CLEAR
to stop cooking. Also the
STOP CLEAR pad is used
to activate oven lockout
setting.
OVEN INTERIOR LIGHT
PAD-- Used to turn oven
interior light ON and OFF.
Minimum and
Maximum
ControJ Pad
Settings
FEATURE
CONVECTION ROAST
PREHEAT TEMP.
BAKE TEMP.
BROIL TEMP.
KITCHEN TIMER
CLOCKTIME
OVEN COOK TIME
CLEAN TIME
CONVECTIONBAKE
CONVECTIONROAST
MEATPROBETARGETTEMP.
All of the features listed below have minimum and maximum time or temperature settings that
may be entered into the control. An ENTRY acceptance beep will sound each time a control
pad is touched (the Oven Lockout pad is delayed 3 seconds).
An ENTRY ERROR tone (3 short beeps) will sound if the entry of the temperature or time is
below the minimum or above the maximum settings for the feature.
12Hr.
24Hr.
12Hr.
24Hr.
12Hr.
24Hr.
MINIMUM TEMP./TIME MAXIMUM TEMP./TIME
170°F/77°C 550°F/288°C
170°F/77°C 550°F/288°C
170°F/77°C 550°F/288°C
400°F/205°C 550°F/288°C
0:01 Min. 11:59 Hr./Min.
0:01 Min. 11:59 Hr./Min.
1:00 Hr./Min. 12:59 Hr./Min.
0:00 Hr./Min. 23:59 Hr./Min.
0:01 Min. 11:59 Hr./Min.
0:01 Min. 11:59 Hr./Min.
2 hours 4 hours
170°F/77°C 550°F/288°C
170°F/77°C 550°F/288°C
140°F/60°C 210°F/99°C
