If the adjacent cabinetry (or appli
-
ance) does not have drawers and
alignment to a drawer line is not
possible:

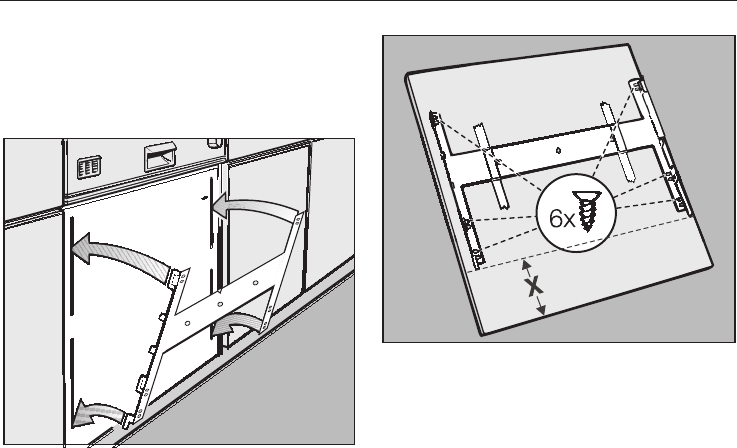

^ Hang the bracket on the machine
door, without the templates. Tighten
the four locking screws on the edges
of the door panel.
^ Close the door.
^ Measure the distance from the adja-
cent cabinet’s (or appliance) door
bottom to the bottom of the mounting
bracket (X).
^
Draw a line on the rear of the door
panel (X) inches up from the bottom.
^
Remove the bracket from the ma
-
chine door and place it on the rear of
the door panel so that:
– the bracket is centered left to
right,
– the bottom of the bracket is
aligned with the (X) line.
^ Tape the bracket to the door panel to
hold it in place while the mounting
holes are drilled.
^
Drill pilot holes for the screws using a
3
/
32
" (2.5 mm) bit.
^
Attach the bracket to the panel using
the 6 screws provided.
