Drainage system specifications:
The machine comes equipped with:
–
A 5 ft. long (1.5 m) flexible drain hose
with an internal diameter of
7
/
8
"
(22 mm). Drain hose extensions can
be ordered from Miele’s Technical
Service Department.
–
A built-in swivel connector allowing
the drain hose to be routed in any
direction.
–
A built-in mechanical non-return
valve on the discharge side to pre
-
vent waste water from flowing back
into the dishwasher.
– A built-in odor trap on the discharge
side to prevent odors from entering
the kitchen.
Maximum drain height: 39" (1 m)
Maximum drain hose length: 12 ft
(3.5 m)
Do not shorten the drain hose.
Do not connect the drain hose to
anything but a genuine Miele hose.
Other hoses may melt or collapse.

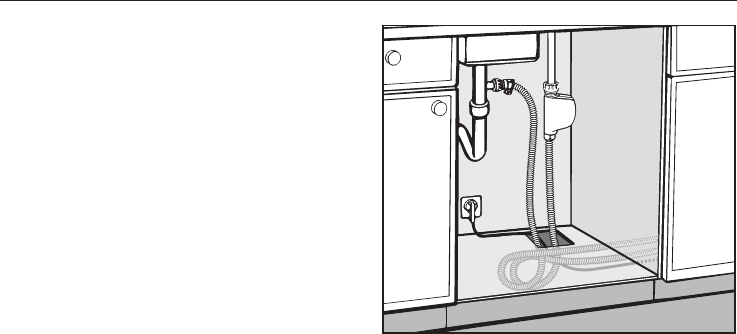

Connect the supplied drain hose to the
drain pipe of the kitchen sink either:
– above the P trap using the clamp
provided, or
– to the dishwasher connector of the
garbage disposal.
When connecting the drain hose to
the garbage disposal, make sure to
remove the knockout from the con-
nection nipple. (See the disposal
manufacturer’s instructions for this
procedure.)
Installation
31
