29
Core Ventilation system has patented aluminum heat recovery core (standard) or an enthalpic energy recovery core (optional) for ener-
gy-efficient ventilation. Enthalpic cores are recommended for regions where the temperature does not drop below 25°F (-4°C).
Filters Washable air filters in exhaust and supply air streams of ventilation section, 1" (25 mm) pleated in return plenum side.
Case Prepainted galvanized steel for superior corrosion resistance.
Date: ___________________________________________
Tag: _____________________Qty:___________________
Project: _________________________________________
Engineer: _______________________________________
Contractor: ______________________________________
Supplier: ________________________________________
Quote#:_________________________________________
Submitted by: ____________________________________

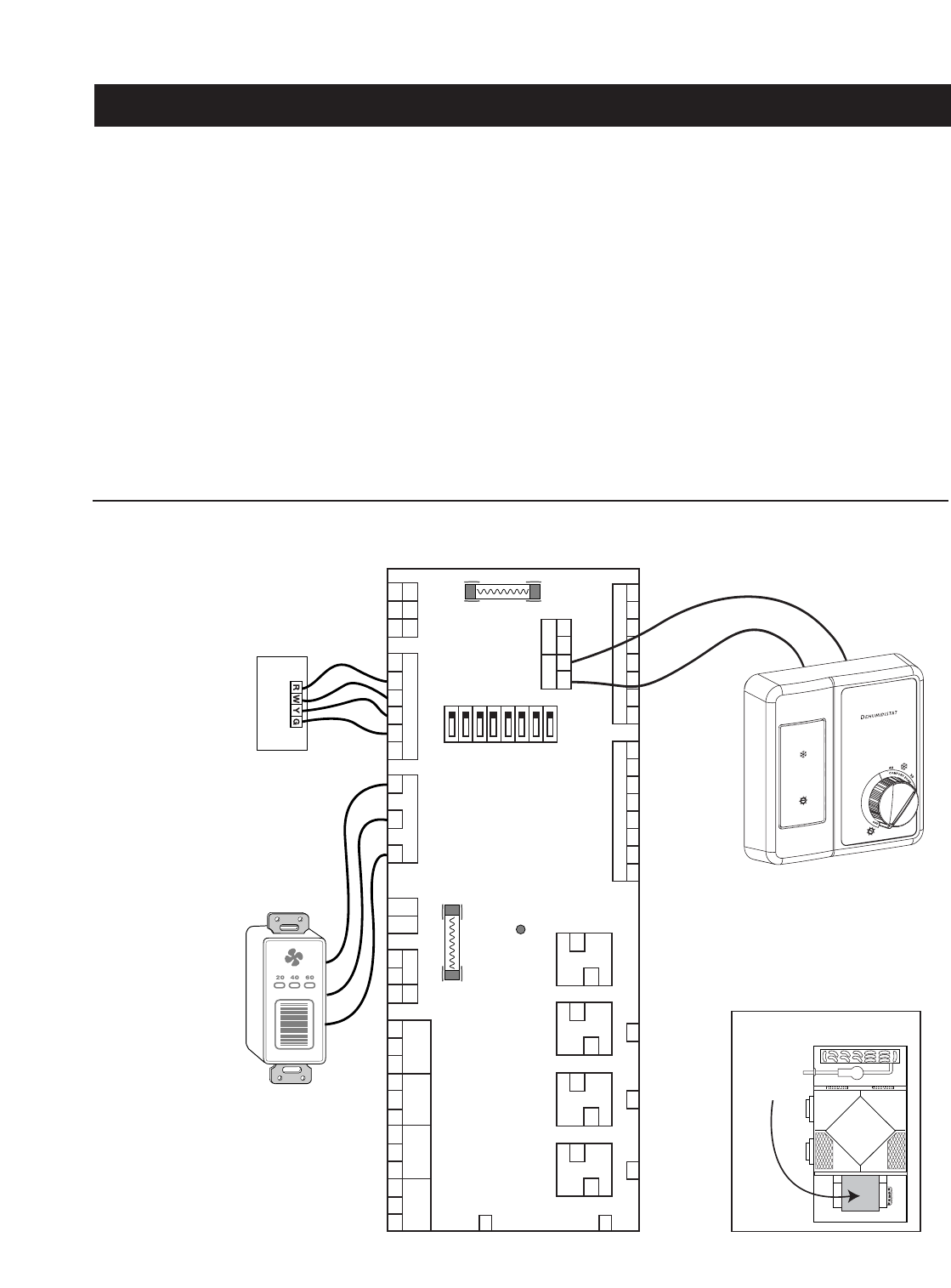

Options
99-186 Weatherhoods, Two - 6" (150 mm) c/w
1/4" (6 mm) mesh screen
99-130W Remote Wall Mount Dehumidistat
Control 24 VAC only
99-RSK6 6” (150 mm) back draft damper
99-104 DET - Digital Electronic Timer
Warranty
Units carry a lifetime warranty on the heat recovery
(aluminum) core, a five year warranty on the energy
recovery (enthalpic) core and a five year replacement
parts warranty on all other components.
Model CAF-U-S4A-24-P16
Voltage 120 VAC 60 Hz
Hp 1/3
Amps (total) 8
Water
1/2" (12 mm) Copper
Connections Soldered Connection
Airflow (High)
.25 in wg
1030 CFM
.5 in. wg 890 CFM
Ventilation 100 - 140 CFM
Airflow
Effectiveness 70%
(Aluminum Core)
Total Efficiency 50%
(Enthalpic Core)
Net Weight 150 lbs.
Shipping Weight 165 lbs.
Top
Front
29.5”
(749 mm)
29.5"
(749 mm)
19"
(483 mm)
47.5"
(1207 mm
6"
14"
(356 mm)
12"
(305 mm)
4”
(100 mm)
19”
(483 mm)
16”
(406 mm)
Supply Air
17.25”
(438 mm)
Ventilation
Supply Air
Inlet
Ventilation
Exhaust Air
Outlet
22”
(559 mm)
Return Air
Blower Section
(SERVICE CLEARANCE 1') (SERVICE CLEARANCE 3')
Side
Latches
(150 mm)
6"
(150 mm)
Dimensions & Clearances
Note: Ventilation ports and return plenum
opening available off either side of cabinet. All
units conform to CSAand UL Standards.
Model CAF-U-S4A-24-P16
