99-186 Weatherhoods, Two - 6" (150 mm)
c/w 1/4" (6 mm) mesh screen
99-130W Remote Wall Mount Dehumidistat Control 24
VAC only
99-RSK6 6” (150 mm) back draft damper
99-104 DET - Digital Electronic Timer
Top
Front
29.5"
(749 mm)
47.5"
(1207 mm)
6"
(150 mm)
14"
(356 mm)
12"
(305 mm)
4"
(100 mm)
19"
(483 mm)
22.25"
(565 mm)
Supply Air
17.25"
(438 mm)
Ventilation Supply
Air Inlet
Ventilation Exhaust
Air Outlet
22"
(559 mm)
Return Air
Latches
Blower Section
Side
(SERVICE CLEARANCE 1') (SERVICE CLEARANCE 3')
29.5"
(749 mm)
19"
(483 mm)
6"
(150 mm)
Dimensions & Clearances
Core Ventilation system has patented aluminum heat recovery core (standard) or an enthalpic energy recovery core (optional) for
energy-efficient ventilation. Enthalpic cores are recommended for regions where the temperature does not drop below 25°F
(-4°C).
Filters Washable air filters in exhaust and supply air streams of ventilation section, 1" (25 mm) pleated in return plenum side
Case Prepainted galvanized steel for superior corrosion resistance.
Note: Ventilation ports and return plenum
opening available off either side of cabinet.
All units conform to CSAand UL Standards.
Model CAF-U-L2A-48-P16
Voltage 120 VAC 60 Hz
Hp 1/2
Amps (total) 10.6
Water
1/2" (12 mm) Copper
Connections Soldered Connection

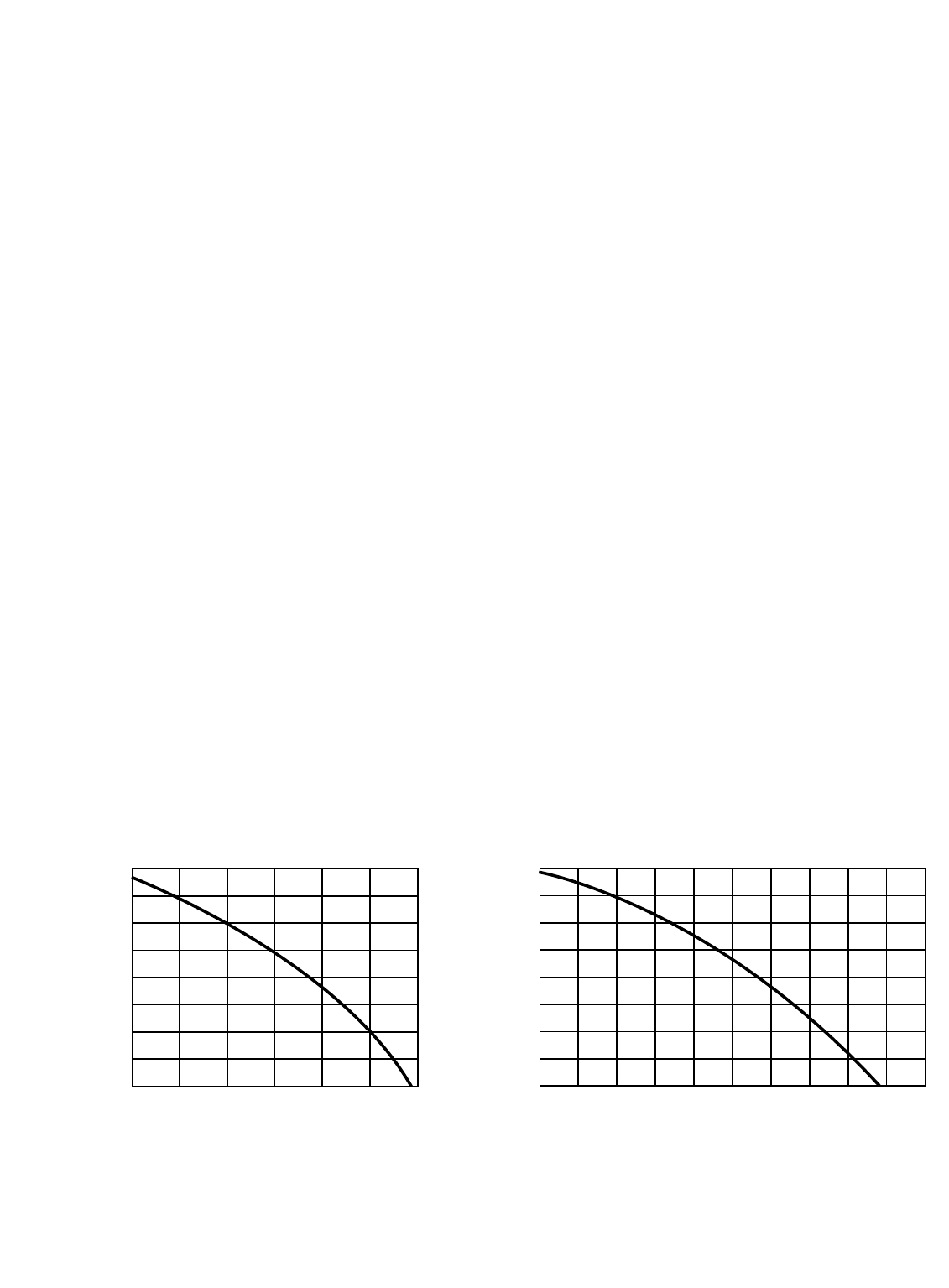

Airflow (High)
.25 in wg
1888 CFM
.5 in. wg 1589 CFM
Ventilation 100 - 140 CFM
Airflow
Effectiveness 70%
(Aluminum Core)
Total Efficiency 50%
(Enthalpic Core)
Net Weight 150 lbs.
Shipping Weight 165 lbs.
Warranty
Units carry a lifetime warranty on the heat recovery (alu-
minum) core, a five year warranty on the energy recovery
(enthalpic) core and a five year replacement parts warranty
on all other components.
