Tricity Bendix SE210/1W Cooktop User Manual



18

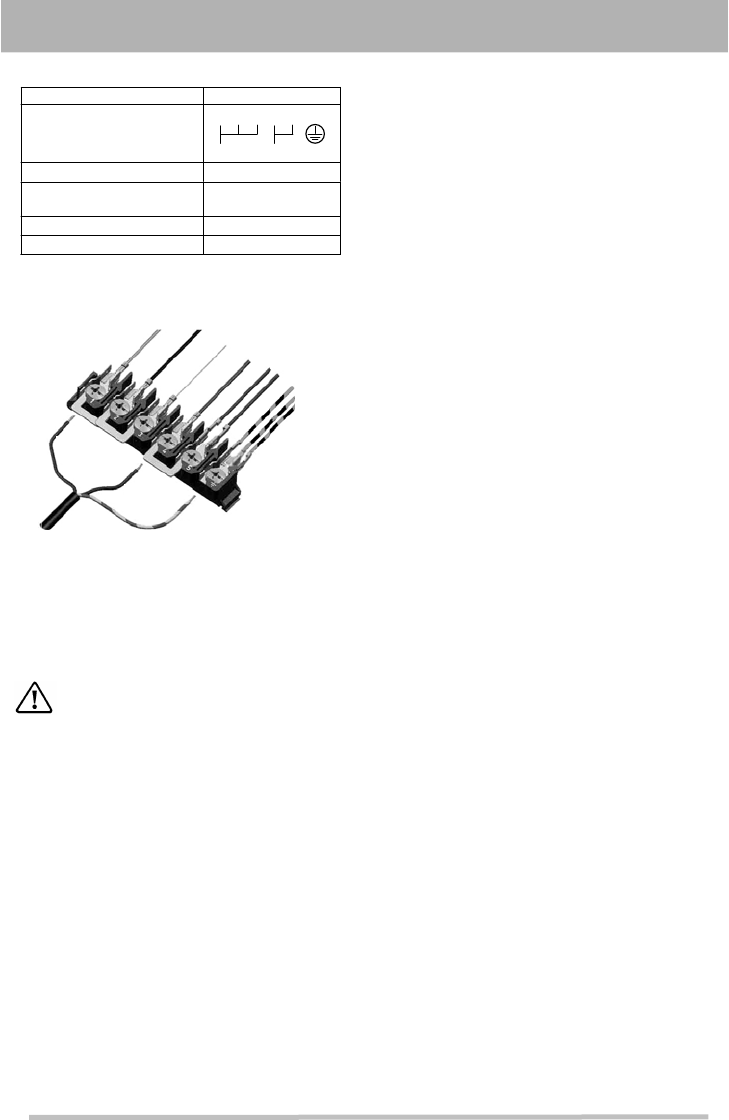

Connection type Single phase (UK)
Cable connection to the
terminal block
1 2 3 4 5
L1
N PE
Mains Voltage
240 V
Voltage of heating
elements
240 V
Fuse capacity
45 A
Cable section
3x6 mm
2
NOTE: The earth wire should be about 10-12
cm longer than the live and neutral wires.
Blue (N)
Green and Yellow (PE earth)
Brown (L)
After installation and connecting, the cable must
be placed so that it cannot at any point reach a
temperature of more than 50°C above the
ambient temperature.
If the supply cable is damaged, the
manufacturer or its service agent or a
similarly qualified person must replace it
in order to avoid a hazard.
Before connecting check that:
The fuse and household electrical
installation can carry the absorbed
current of the appliance (see rating
plate);
The cooker connection outlet or the
cooker control switch is easily
accessible when the appliance is
installed.
How to proceed?
Unscrew and remove the protective
cover at the back of the appliance;
Connect the power cable to the terminal
block of the cooker according to the
table no.1;
Secure by means of cable clamp;
Make sure that the connection to the
terminal block is matching the supply
system, see table no.1;
Refit and screw the protective cover on the
back of the appliance.
