3-15
CrossPoint / MAV Matrix Switchers • Operation

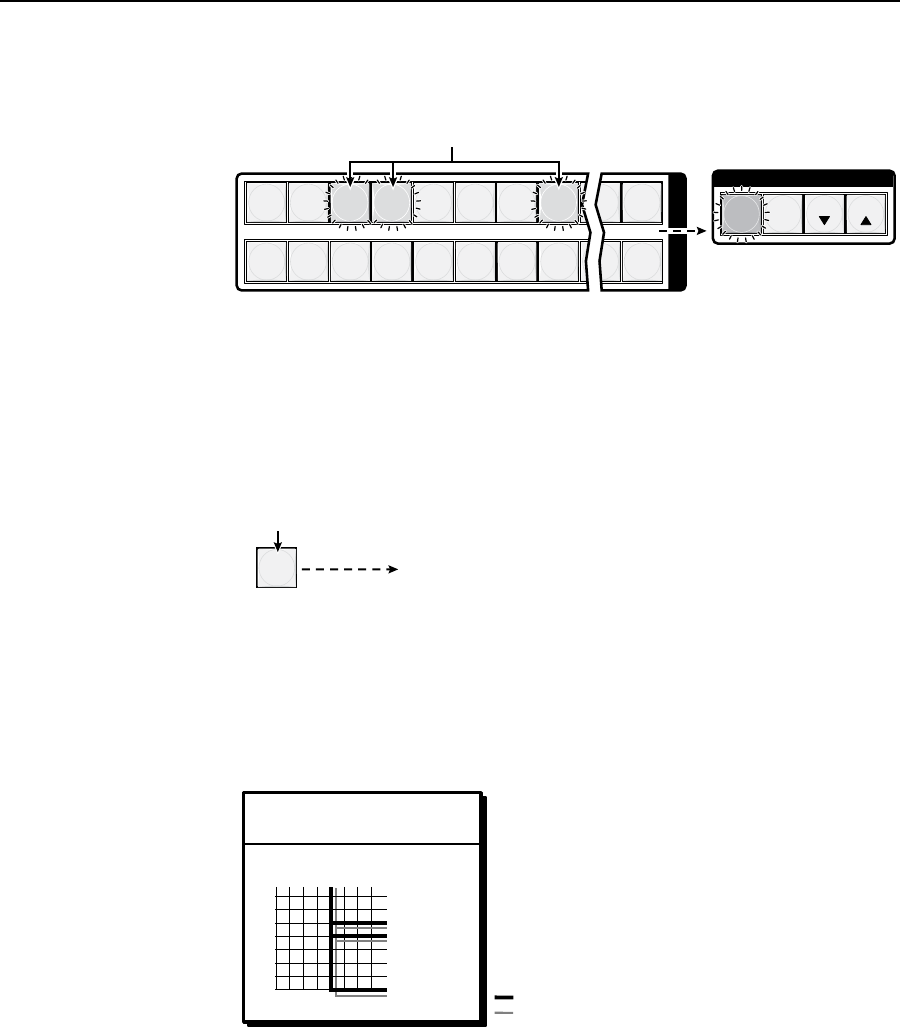

4. Pressandreleasetheoutput3,output4,andoutput8buttons(gure3-8).
C O N T R O L
PRESET
ENTER
ESCVIEW
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
O
U
T
P
U
T
S
Press and release the Output 3, Output 4, and Output 8 buttons.
The buttons blink amber to indicate that the selected RGBHV or video and audio
input will be tied to these outputs.
The Enter button blinks
green to indicate the need to
confirm the change.
Figure 3-8 — Select the outputs
N
You can cancel the entire set of ties at this point by pressing and releasing the
Esc button. The Esc button flashes red once.
5. PressandreleasetheEnterbutton(gure3-9).
ENTER
All input buttons and output buttons
return to unlit or background illumination.
Press the Enter button to
confirm the configuration
change.
The Enter button returns to
unlit or background
illumination.
Figure 3-9 — Press the Enter button
Thecurrentconguration(gure3-10)isnow:
• Input5videoandaudioistiedtooutput3,output4,andoutput8
Input 5 (video/audio) tied
to outputs 3, 4, and 8.
Input
Output
3
4
8
5
Video
Audio
Figure 3-10 — Example 1, final configuration
