62 Passive Vehicle Mount Cradle
MX7 Reference Guide E-EQ-MX7RG-B
Cradle Assembly Components
Note: Bolts, washers, and wrench needed when attaching the mobile device to the vehicle are
not supplied by LXE.
U-Bracket

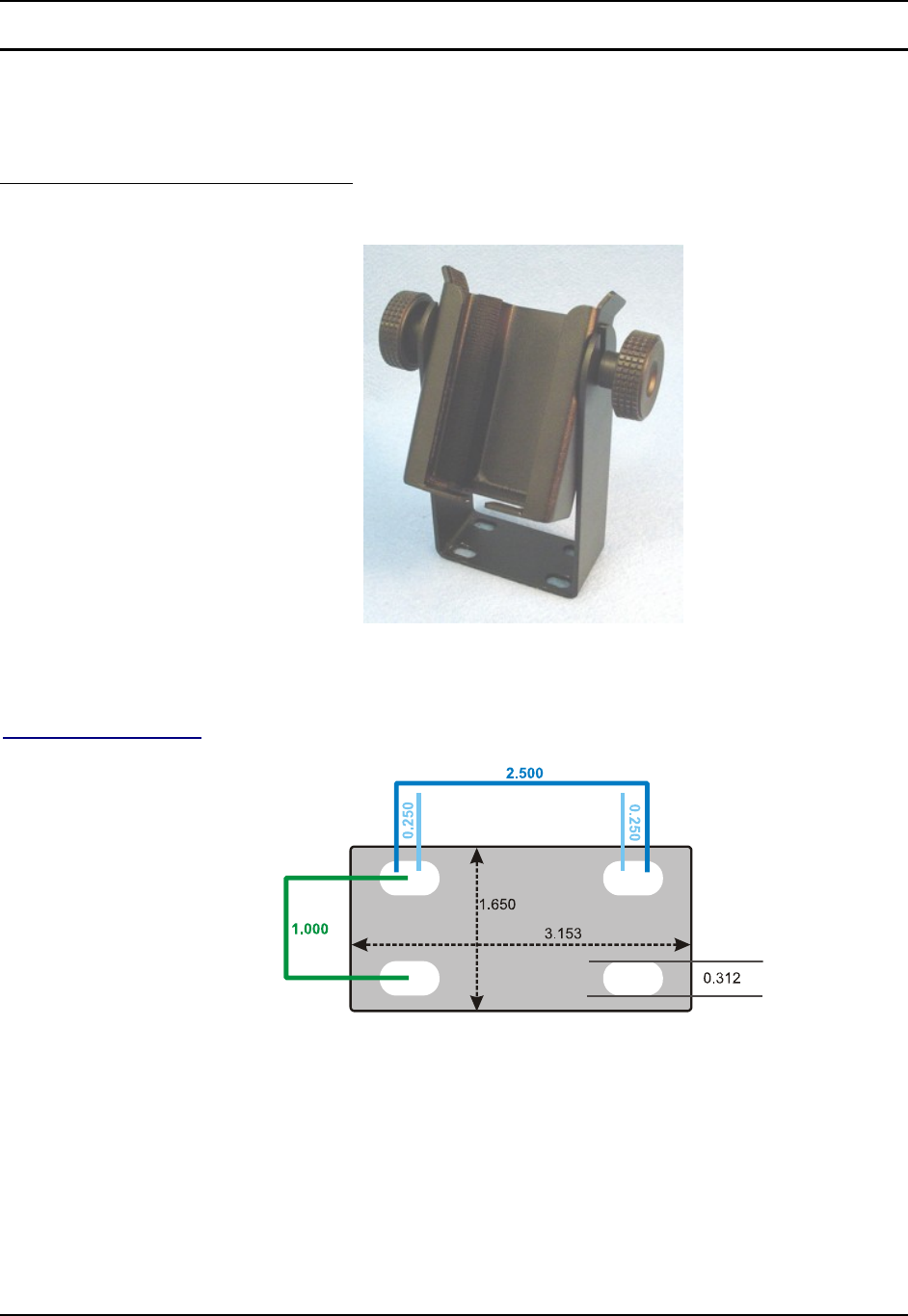

Figure 2-11 Passive Vehicle Mount Cradle and U-Bracket
U-Bracket Footprint
Not To Scale
Figure 2-12 U-Bracket Mounting Footprint
Note: LXE does not supply the bolts or washers needed when mounting the cradle assembly to
the vehicle chassis. LXE recommends using bolts with a maximum 10/32” (0.3125)
diameter.
