PitcoSolsticeandSolsticeSupremeHighEfficiencyGasFryers







SG/SSHSeriesServiceManual 24

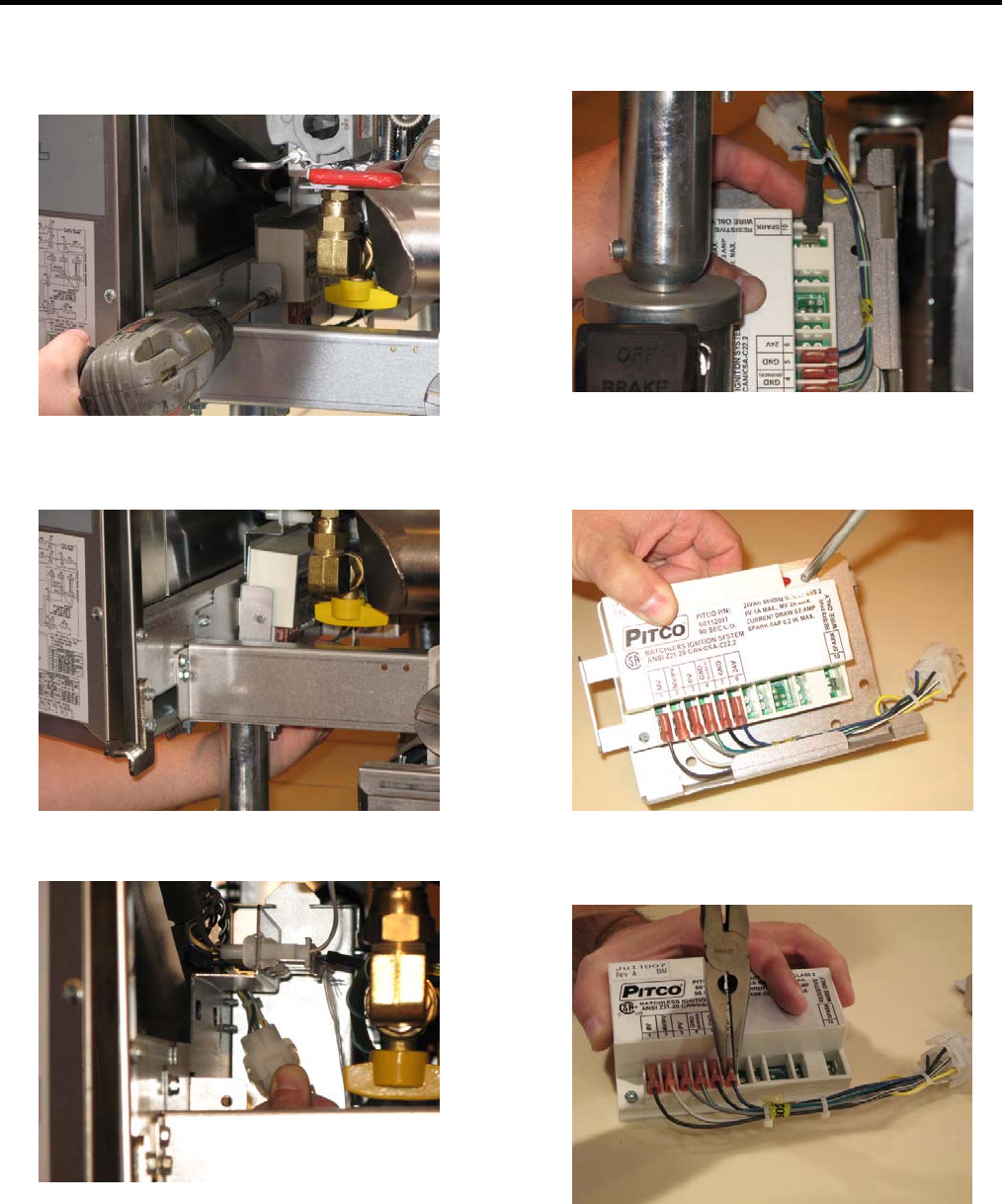

ReplacingtheIgnitionModule

1. Remove one (1) screw, which hold the ignition

module, using a 5/16 inch socket.

2. Pull the module box and bracket toward the

front of the unit, and then to the right.

3. Disconnect the plug.

4. Remove the ignition wire.

5. Remove the two (2) screws, which hold the

module on the plate, using a Phillips

screwdriver.

6. Remove the harness pins using needle-nose

pliers.

7. Follow steps 1 through 6 in reverse.
