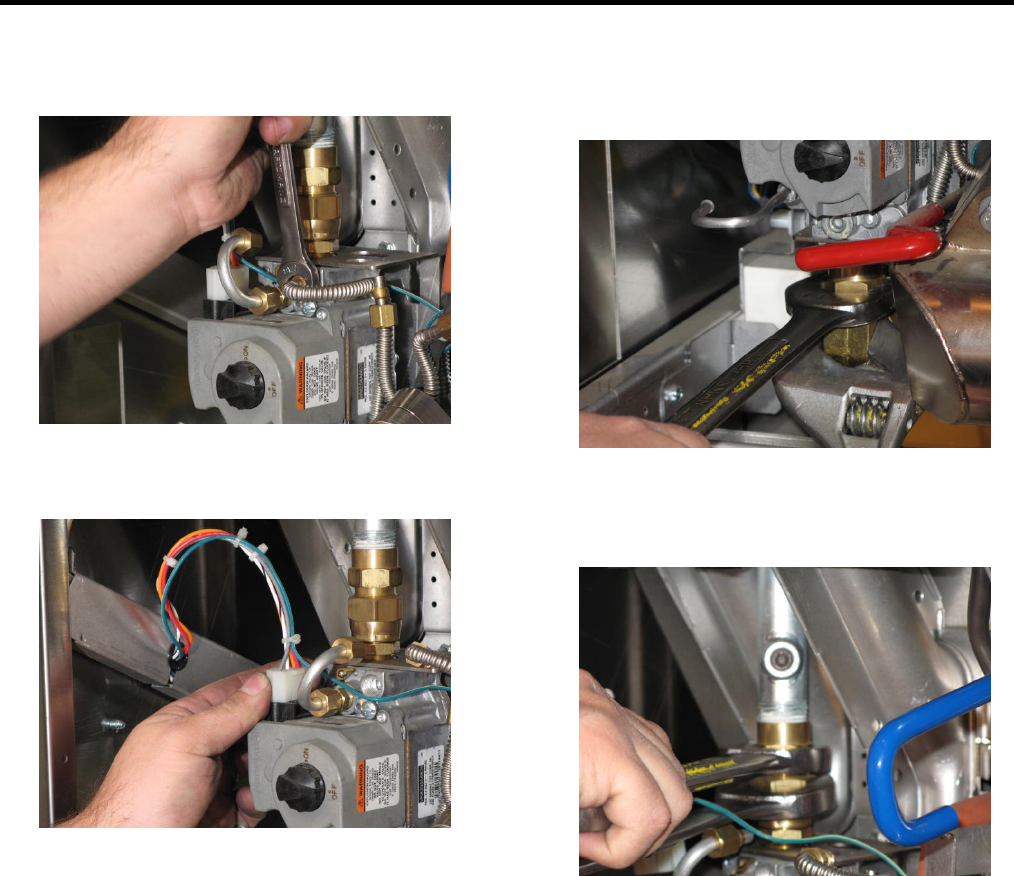

ReplacingtheGasValve
1. Remove the pilot tubing from the gas valve
using a 7/16 inch open-ended wrench.
2. Disconnect the wiring connection from gas
valve.
NOTE: On mV unit, use a Phillips
screwdriver to remove screws on
the wiring connection (not shown).
3. Holding the elbow with a wrench, remove the
swivel nut on the bottom gas valve fitting using
a 1-1/16 inch open-ended wrench.
4. Holding the elbow with a wrench, remove the
swivel nut on the top gas valve fitting using a
15/16 inch open-ended wrench.
5. Remove the gas valve.
