PitcoSolsticeandSolsticeSupremeHighEfficiencyGasFryers







SG/SSHSeriesServiceManual 28

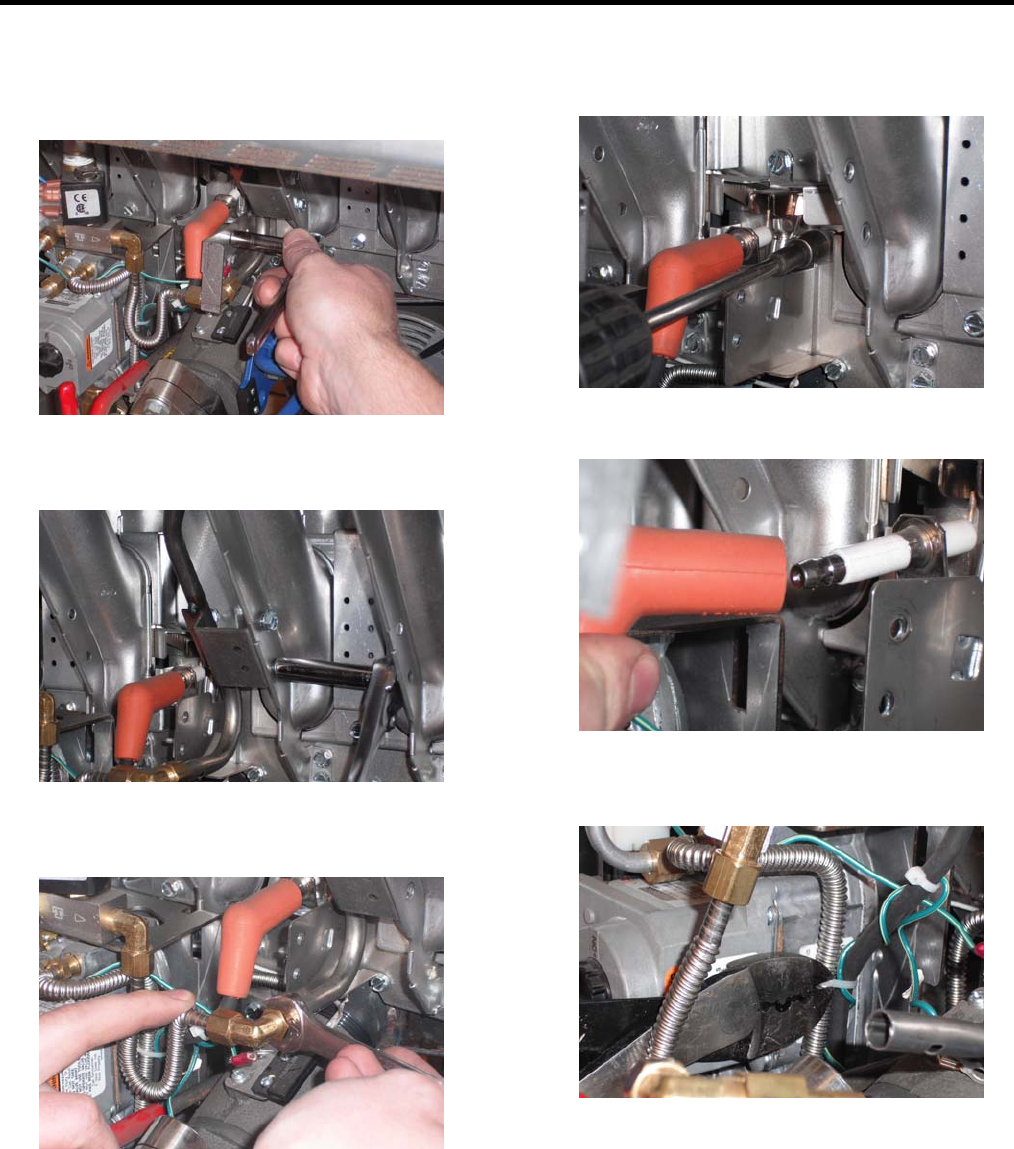

ReplacinganIgniter/PilotAssembly

1. Remove the two (2) screws, which hold the pilot

and runner tube orifice bracket, using a

5/16 inch socket.

2. Remove the two (2) screws, which hold the

runner tube, using a 5/16 inch socket.

3. Remove the runner tube orifice using a 1/2 inch

open-ended wrench.

4. Remove the two (2) screws, which hold the

pilot, using a 5/16 inch socket.

5. Remove the ignition wire.

6. Cut the zip ties, which hold the ignition wire to

the pilot tubing.
