Integration in Tivoli NetView 25
Components Objects in maps
2. The new symbol class FujitsuSiemensServerView is added to the Software
symbol class.

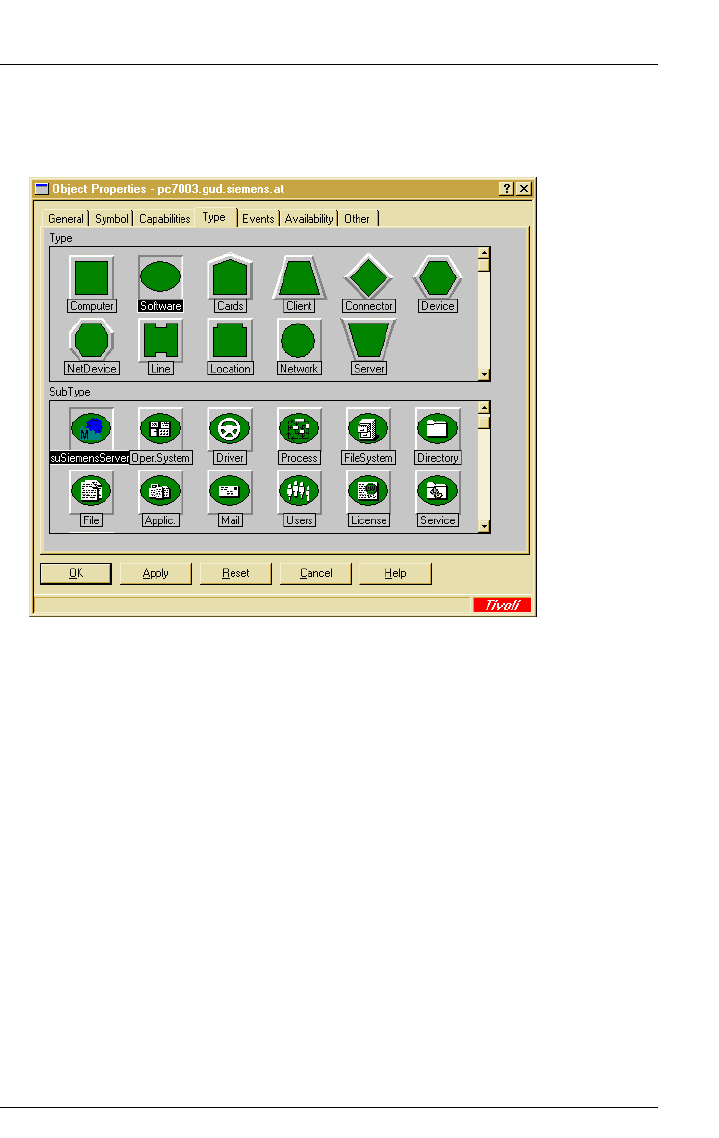

Figure 14: New symbol subclasses in the “Software” symbol class
Component symbols of the Software:FujitsuSiemensServerView symbol type
are used in the submap of a Fujitsu Siemens PRIMERGY server to display
the status of all ServerView agents on that server. The Map application can
automatically create these symbols and objects.
The definitions of the symbol classes and symbol subclasses as well as the
associated default capabilities for these symbols can be found in the file
usr\ov\c\ServerView\ServerView.symbols. The corresponding bitmaps are located
in the directory \usr\ov\bitmaps\c.
