Installation Instructions
power leads must be connected to the outside
terminals.
Make sure the connections are tight. Now
tighten the stain relief device to clamp the power
cord.
Refit the electrical connection cover
Disconnect the supplied power cord from
the terminal block and ground post. Keep
the terminal block parts; you will need them.
Remove the strain relief clamp from the power
cord and remove the power cord and strain relief
clamp from the mounting bracket.
The range is shipped with reducer plates to
give a 1 1/8’’ diameter opening for conduit
connection. Find the reducer plates in the
conversion kit and fit them to the mounting
bracket.
Fit a squeeze connector (not supplied with
the range), to your conduit. Insert the conduit
through the reducer plates on the mounting
bracket. Allow enough slack to easily attach the
wires to the terminal block.
NOTE: Do not install the conduit without a
squeeze connector.
A Ground strap is supplied in the conversion
pack.
ground strap.

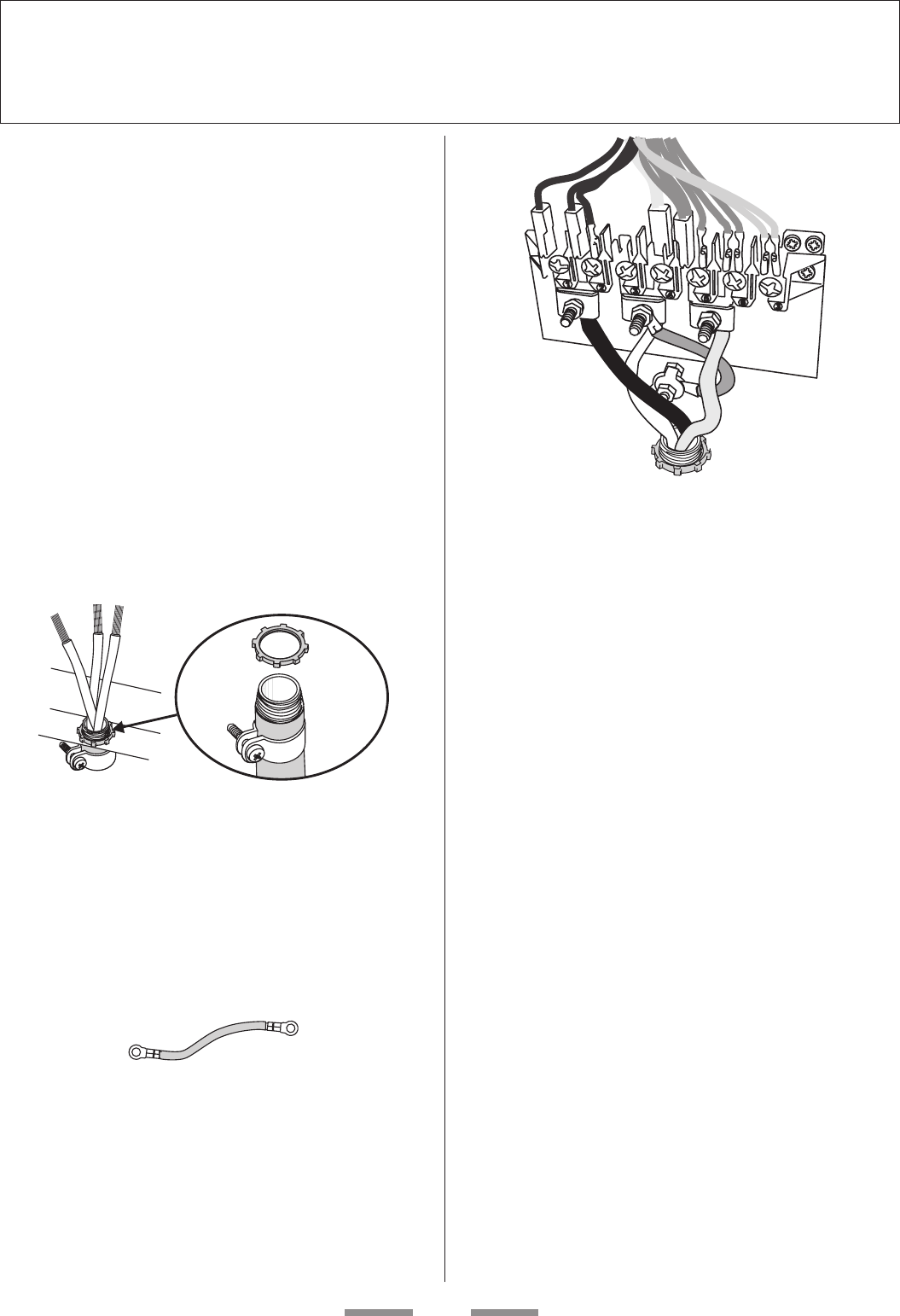

Fit the Ground strap to the ground and center
terminal of the connector block - see the figure.
The neutral or ground wire of the power cord
must be connected to the neutral terminal
located in the center of the connector block. The
power leads must be connected to the outside
terminals.
NOTE: Make sure the wires are completely
inserted into the terminals and secure
connections are made.
Secure the squeeze connector in place in the
bracket by tightening the squeeze connector
screws.
Seal any openings in the wall behind the range
and in the floor under the range when hookups
are completed.
MAKE SURE THE FLOW OF COMBUSTION
AND VENTILATION AIR TO THE RANGE IS
UNOBSTRUCTED.
