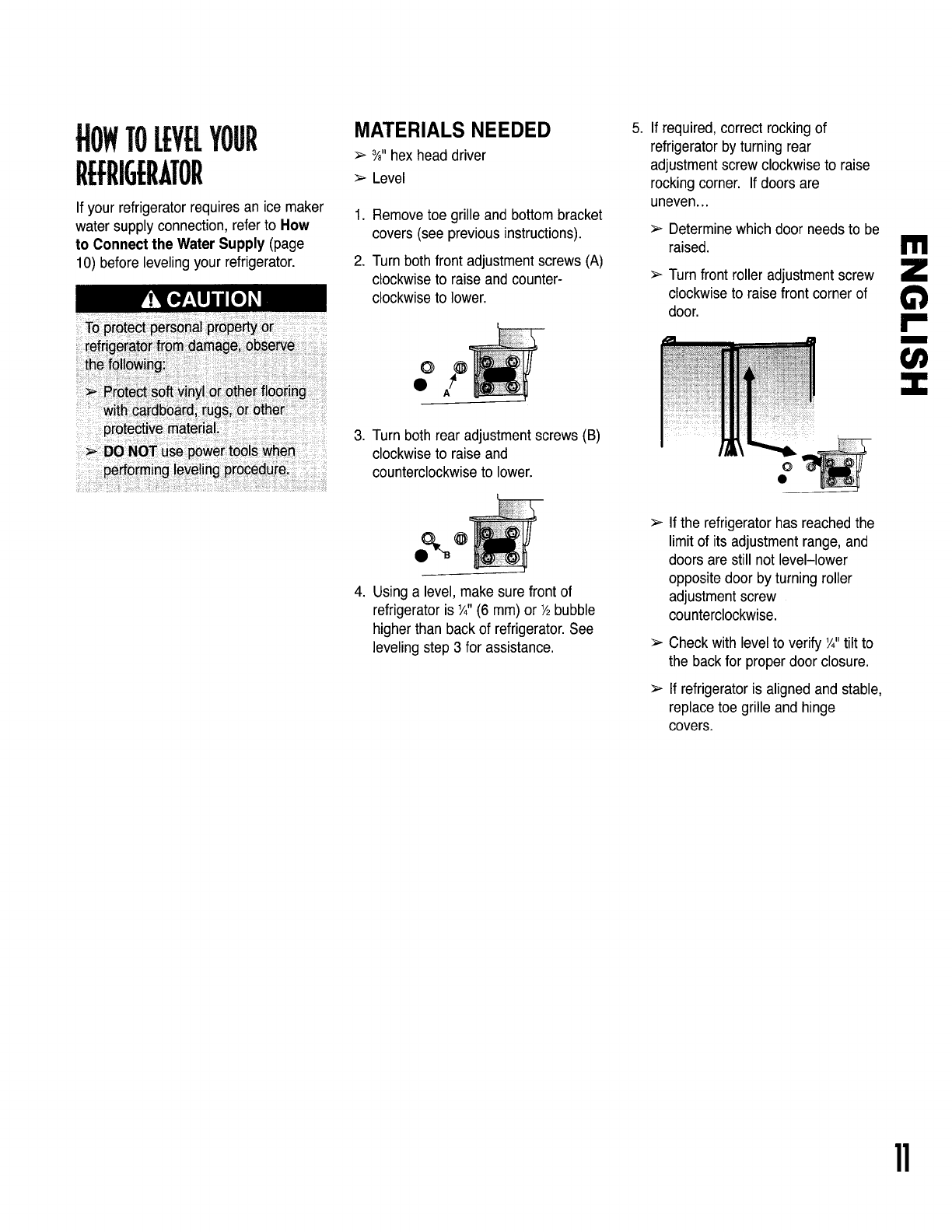

)WTOLEYELYOUR
REFRIGERATOR
If your refrigerator requires an ice maker
water supply connection, refer to How
to Connect the Water Supply (page
10) before leveling your refrigerator.
MATERIALS NEEDED
>_ ¾"hex head driver
:_ Level
,
,
Remove toe grille and bottom bracket
covers (see previous instructions).
Turn both front adjustmentscrews (A)
clockwise to raise and counter-
clockwise to lower.
o
3. Turn both rear adjustmentscrews (B)
clockwise to raise and
counterclockwise to lower.
.
Usinga level, make sure front of
refrigeratoris _'4"(6 mm)or Y2bubble
higher than back of refrigerator.See
leveling step 3 for assistance.
.
If required, correct rocking of
refrigeratorby turning rear
adjustmentscrew clockwise to raise
rocking corner. If doors are
uneven...
>_ Determinewhich door needs to be
raised.
>_Turn front roller adjustment screw
clockwise to raise front corner of
door.
>>
If the refrigerator has reached the
limit of its adjustment range, and
doors are still not level-lower
opposite door by turning roller
adjustment screw
counterclockwise.
Check with level toverify Y,"tilt to
the back for proper door closure.
If refrigerator is aligned and stable,
replace toe grille and hinge
covers.
