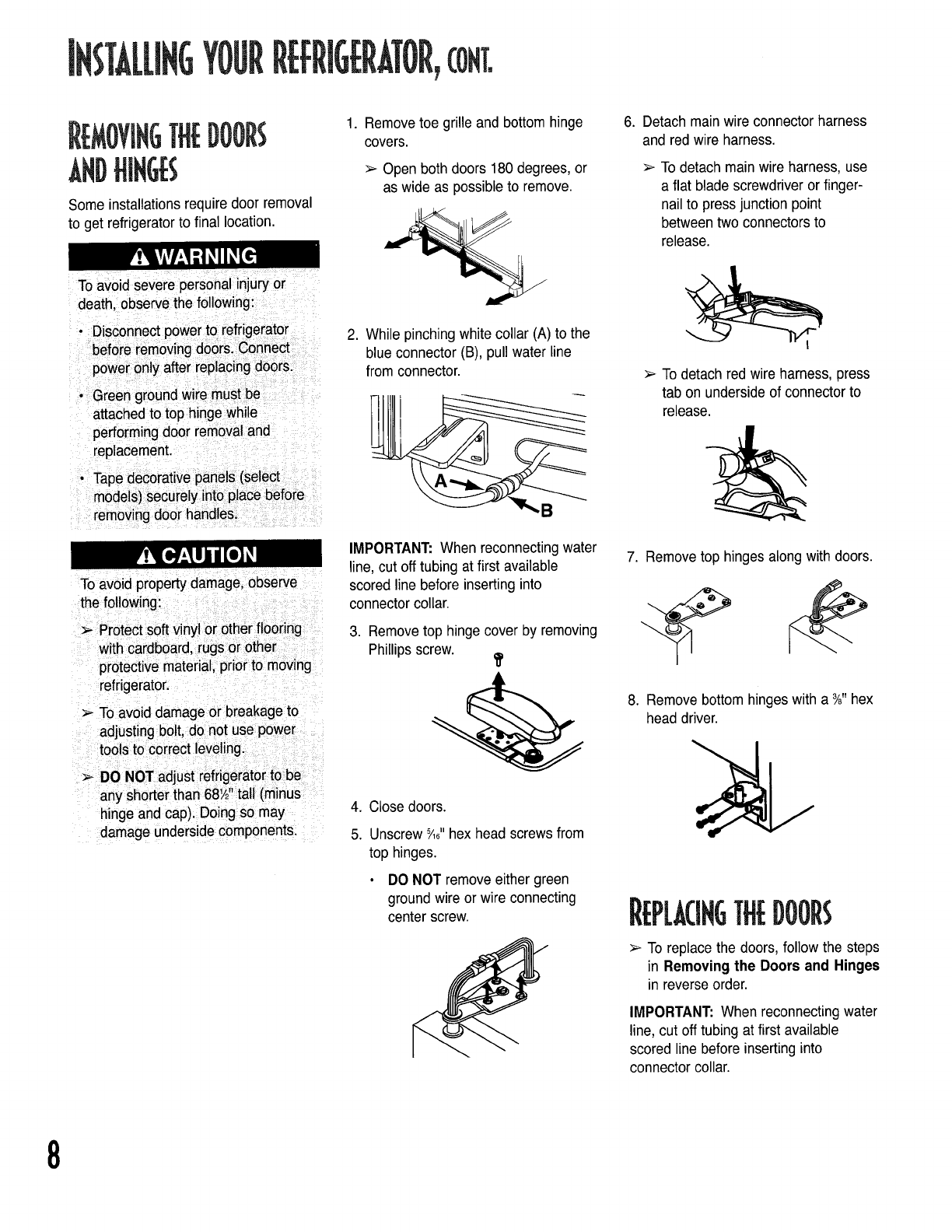

IHSTALLIHG
riNGTHEDOOflS
ANDHINGES
Some installationsrequire doer removal
to get refrigeratorto final location.
To avoid Severe pers0nai i or
' Discon
i
attached
To avoid propertydamage, observe
protective material, prior to moving
refrigerator.
> To avoiddamage or breakage to
adjusting bolt, do not use power
tools to correct leveling.
> DO NOT adjust refrigeratorto be
any shorter than 68Y2tall (minus
hingeand cap). Doing so may
damage underside components.
1. Remove toe grille and bottom hinge
covers.
> Open both doors 180 degrees, or
as wide as possibleto remove.
2. While pinching white collar (A) to the
blue connector (B), pull water line
from connector.
B
IMPORTANT: When reconnecting water
line, cut off tubing atfirst available
scored line before inserting into
connector collar.
3. Removetop hinge cover by removing
Phillips screw.
4. Close doors.
5. Unscrew %6"hex head screws from
top hinges.
DO NOT remove either green
ground wire or wire connecting
center screw.
6. Detach mainwire connectorharness
and red wire harness.
> Todetach main wire harness, use
a flat blade screwdriveror finger-
nail to press junction point
betweentwo connectorsto
release.
> Todetach red wire harness,press
tab on underside of connector to
release.
7. Remove top hinges along with doors.
8. Remove bottom hingeswith a ¾"hex
head driver.
16THEDOORS
> To replace the doors, follow the steps
in Removing the Doors and Hinges
in reverseorder.
IMPORTANT: When reconnectingwater
line, cut off tubing at first available
scored line before inserting into
connector collar.
8
