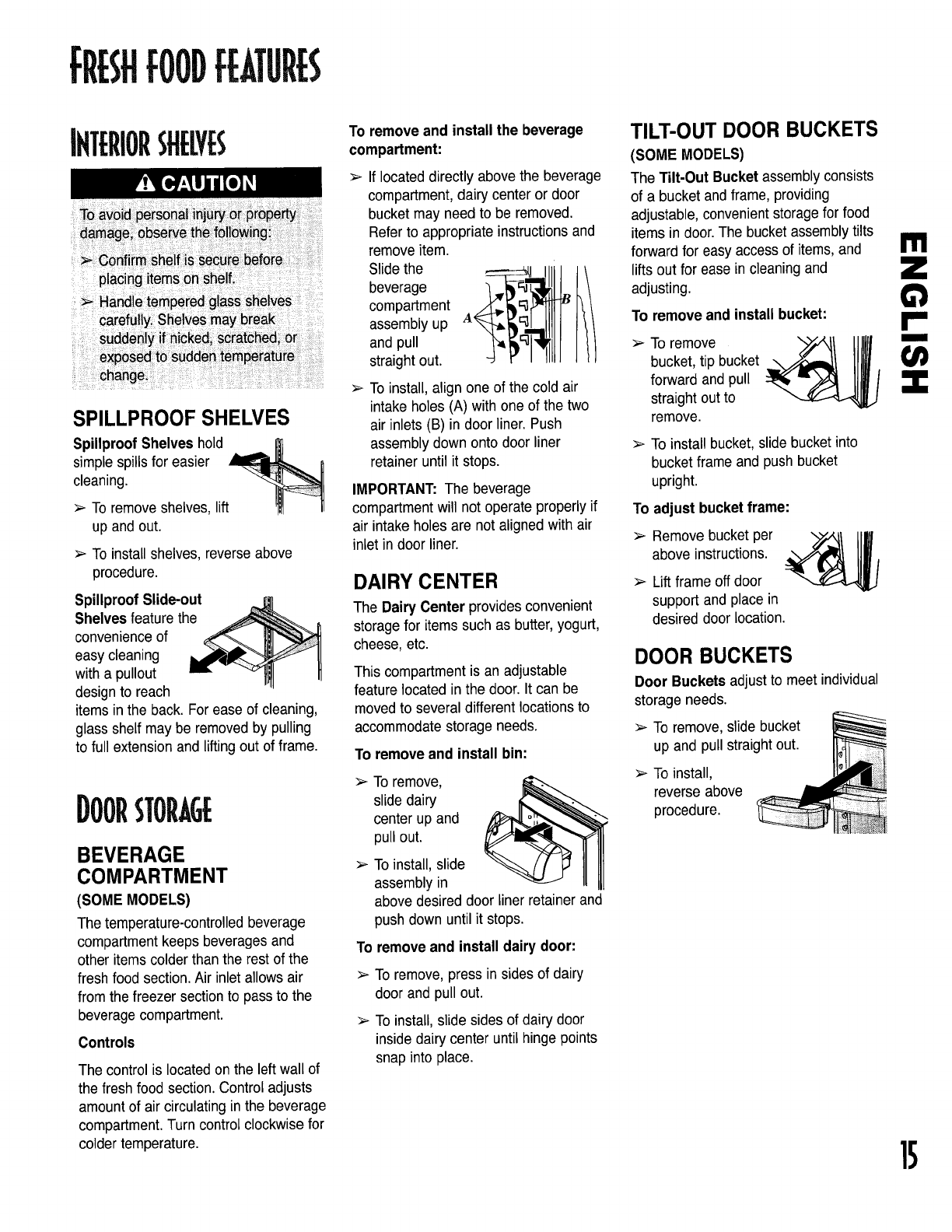

TERIORSHELVES
>- Hande tempered glass shelves
carefully.Shelves may break
suddenly if nicked;scratched,or
expOsedto suddentemperature
change.
SPILLPROOF SHELVES
SpillproofShelves hold , _
simple spills for easier _ n
cleaning.
Toremove shelves, lift 'I_11 II
up and out.
Toinstall shelves, reverseabove
procedure.
SpillproofSlide-out
Shelves feature the
convenienceof
easy cleaning
with a pullout "" '_ _III
design to reach
items in the back. For ease of cleaning,
glass shelf may be removed by pulling
to full extension and lifting out of frame.
STORAGE
BEVERAGE
COMPARTMENT
(SOME MODELS)
The temperature-controlledbeverage
compartmentkeepsbeveragesand
other itemscolder than the rest of the
fresh food section. Air inlet allows air
from the freezer section to pass to the
beveragecompartment.
Controls
The control is located on the left wall of
the fresh food section.Control adjusts
amount of air circulating inthe beverage
compartment. Turn control clockwise for
colder temperature.
To remove and install the beverage
compartment:
If located directly abovethe beverage
compartment, dairy center or door
bucket may need to be removed.
Refer to appropriate instructions and
remove item.
Slide the
beverage
compartment
assembly up
and pull
straight out.
To install,align one of the cold air
intake holes (A) with one of the two
air inlets (B) in door liner. Push
assembly down onto door liner
retainer until it stops.
IMPORTANT: The beverage
compartment will not operate properly if
air intake holes are notaligned with air
inlet in door liner.
DAIRY CENTER
The Dairy Center provides convenient
storage for items such as butter, yogurt,
cheese, etc.
This compartment is an adjustable
feature located in the door. It can be
moved to several different locations to
accommodatestorage needs.
To remove and install bin:
Toremove,
slide dairy
center up and
pull out.
Toinstall, slide
assembly in
above desired door liner retainer and
push down until it stops.
To remove and install dairy door:
To remove, press in sides of dairy
door and pull out.
Toinstall, slide sides of dairy door
inside dairy center until hinge points
snap into place.
TILT-OUT DOOR BUCKETS
(SOME MODELS)
The Tilt-Out Bucketassemblyconsists
ofa bucket andframe, providing
adjustable,convenientstorage for food
itemsindoor.The bucketassemblytilts
forward for easyaccessofitems,and
lifts out for ease in cleaningand
adjusting.
To remove and install bucket:
To remove
bucket, tip bucket
forward and pull
straight out to
remove.
I11
Toinstall bucket, slide bucket into
bucket frame and push bucket
upright.
To adjust bucket frame:
Remove bucket per ">Y_I I1|11
above instructions.
Lift frame off door
support and place in
desired door location.
DOOR BUCKETS
Door Buckets adjust to meet individual
storageneeds.
To remove, slide bucket
up and pull straightout.
To install,
reverse above
procedure.
]5
