Kenmore 790.4660 Oven User Manual

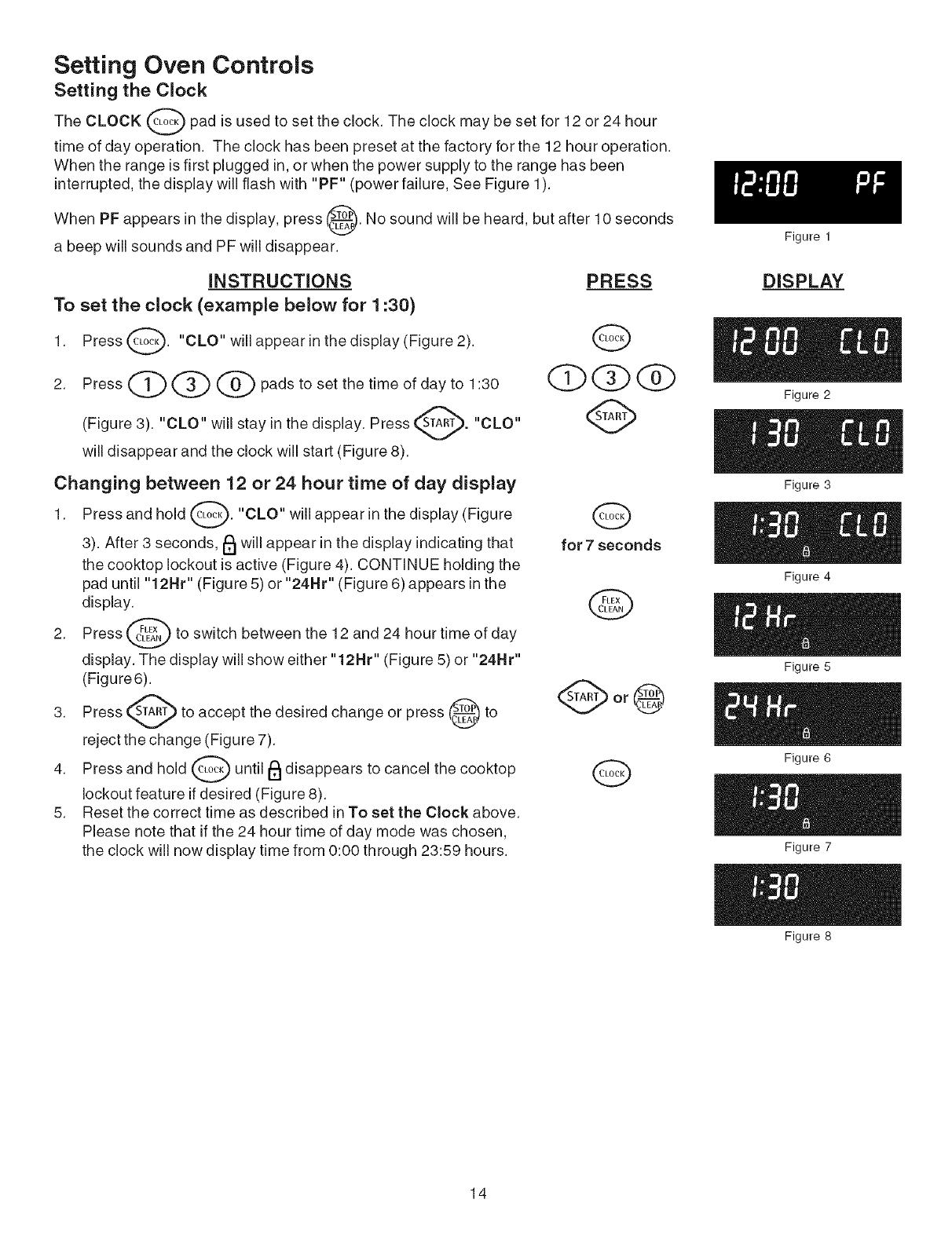

Setting Oven Controls
Setting the Clock
The CLOCK _ pad is used to set the clock. The clock may be set for 12 or 24 hour
time of day operation. The clock has been preset at the factory for the 12 hour operation.
When the range is first plugged in, or when the power supply to the range has been
interrupted, the display will flash with "PF" (power failure, See Figure 1).
When PF appears in the display, press @. No sound will be heard, but after 10 seconds
a beep will sounds and PF will disappear.
INSTRUCTIONS
To set the clock (example below for 1:30)
1. Press _. "CLO" will appear in the
display (Figure 2).
2.
Press(Z)(2) padstosotthot,moo,dayto1:30
"CLO" will stay in the display. Press _-A_. "CLO"(Figure 3).
will disappear and the clock will start (Figure 8).
Changing between 12 or 24 hour time of day display
1. Press and hold _. "CLO" will appear in the
display (Figure
3). After 3 seconds, lel will appear in the display indicating that
the cooktop lockout is active (Figure 4). CONTINUE holding the
pad until "12Hr" (Figure 5) or "24Hr" (Figure 6) appears in the
display.
2. Press _ to switch between the 12 and 24 hour time of
day
display. The display will show either "12Hr" (Figure 5) or "24Hr"
(Figure@.
3. Press <A_ to accept the desired change or press @ to
reject the change (Figure 7).
4. Press and hold _-_L_ until I_1disappears to cancel the
cooktop
lockout feature ifdesired (Figure 8).
5. Reset the correct time as described in To set the Clock above.
Please note that if the 24 hour time of day mode was chosen,
the clock will now display time from 0:00 through 23:59 hours.
PRESS
Q
O(2)(2)
Q
for 7 seconds
Q
Q
Figure 1
DISPLAY
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
14
