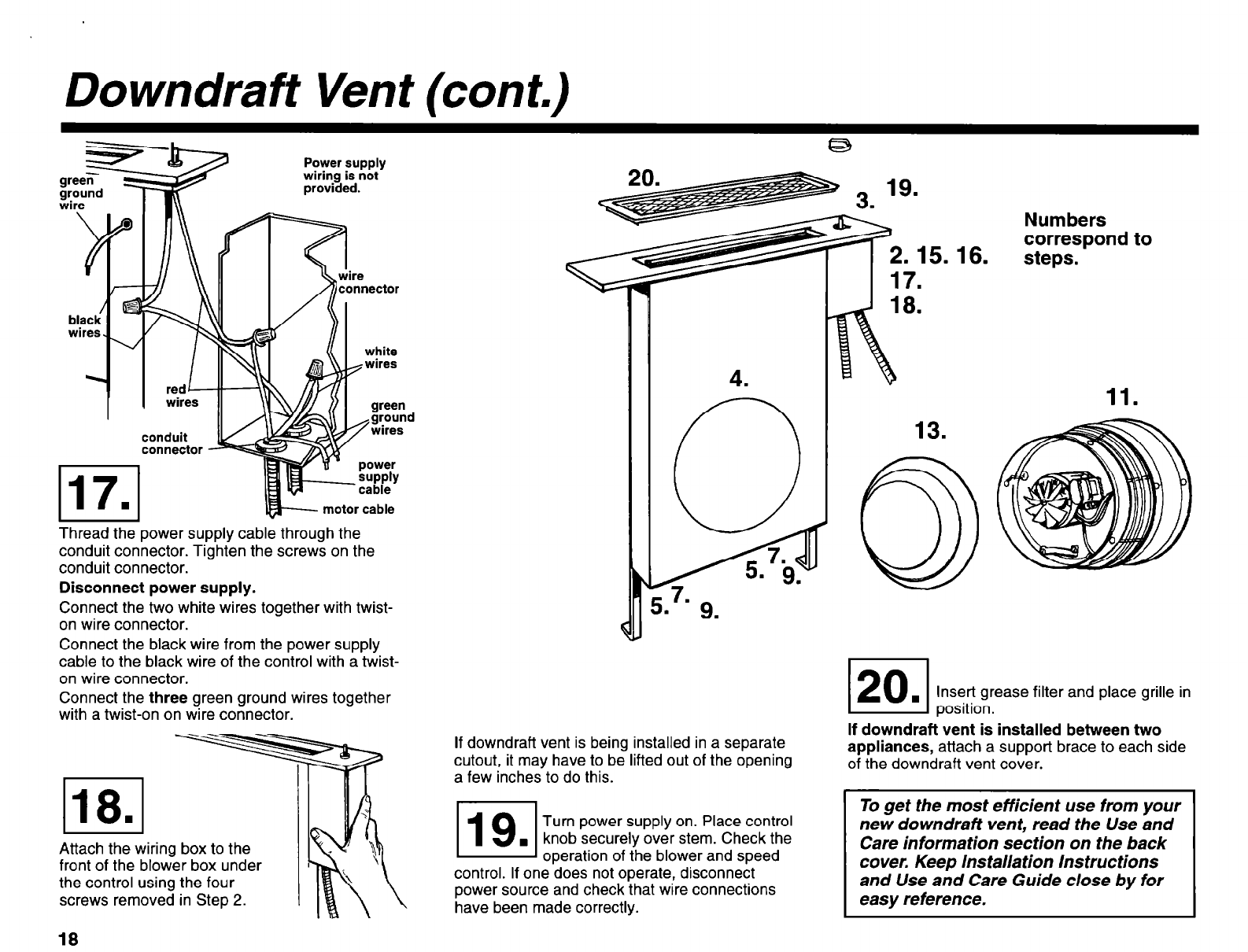

Downdraft Vent (cont.)
wire
lg
black
i
wires
conduit
connector
117.
Power supply
wiring is not
provided.
motor cable
Thread the power supply cable through the
conduit connector. Tighten the screws on the
conduit connector.
Disconnect power supply.
Connect the two white wires together with twist-
on wire connector.
Connect the black wire from the power supply
cable to the black wire of the control with a twist-
on wire connector.
Connect the three green ground wires together
with a twist-on on wire connector.
Attachiring box to the
front of the blower box under
the control using the four
screws removed in Step 2.
Numbers
correspond to
steps.
If downdraft vent is being installed in a separate
cutout, it may have to be lifted out of the opening
a few inches to do this.
Turn power supply on. Place control
knob securely over stem. Check the
operation of the blower and speed
control. If one does not operate, disconnect
power source and check that wire connections
have been made correctly.
120
. Insert grease filter and place grille in
position.
If downdraft vent is installed between two
appliances, attach a support brace to each side
of the downdraft vent cover.
To get the most efficient use from your
new downdraft vent, read the Use and
Care information section on the back
cover. Keep /nsta//ation instructions
and Use and Care Guide close by for
easy reference.
18
