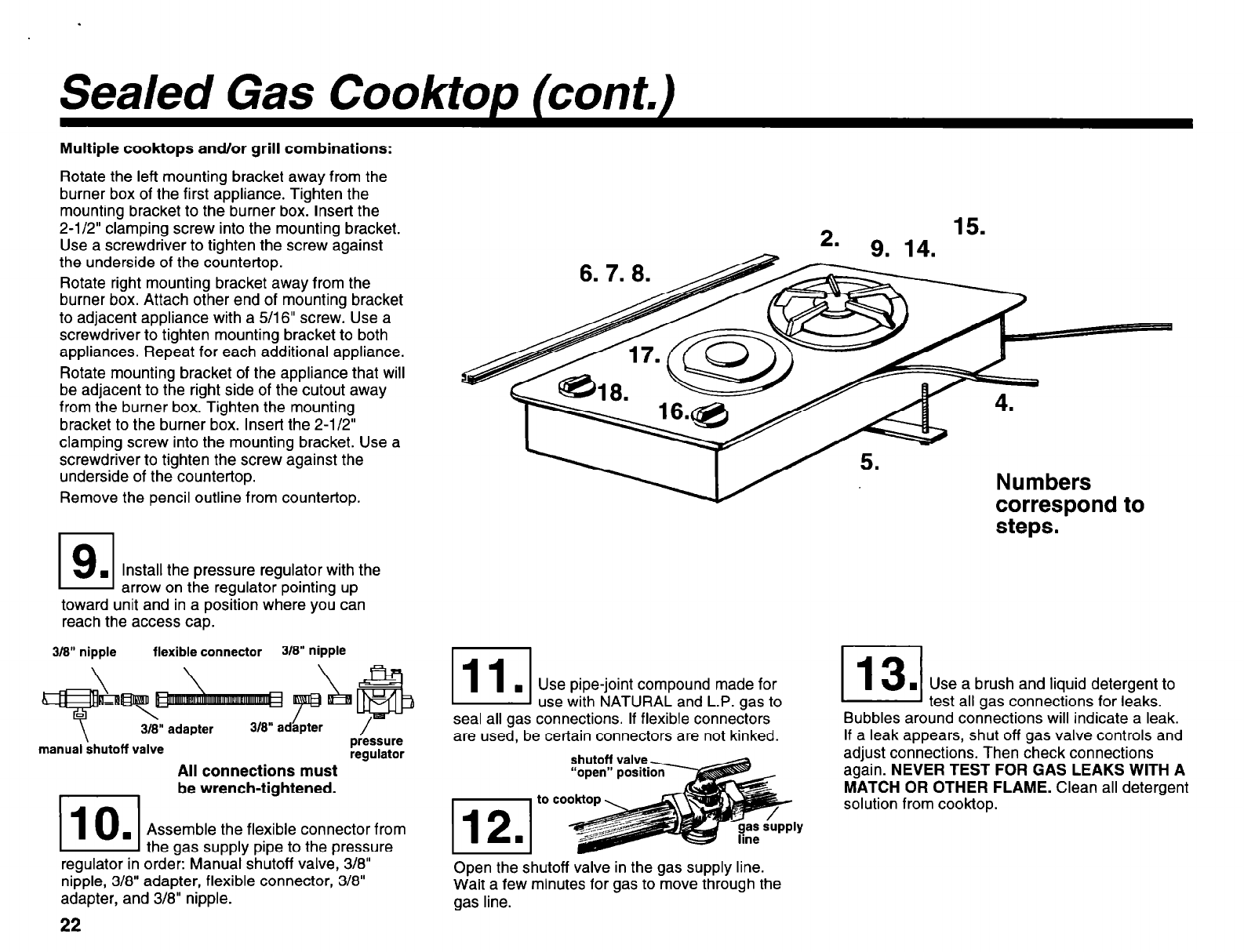

Sealed Gas Cooktop (cont.)
Multiple cooktops and/or grill combinations:
Rotate the left mounting bracket away from the
burner box of the first appliance. Tighten the
mounting bracket to the burner box. Insert the
2-l/2” clamping screw into the mounting bracket.
Use a screwdriver to tighten the screw against
the underside of the countertop.
Rotate right mounting bracket away from the
burner box. Attach other end of mounting bracket
to adjacent appliance with a 5/l 6” screw. Use a
screwdriver to tighten mounting bracket to both
appliances. Repeat for each additional appliance.
Rotate mounting bracket of the appliance that will
be adjacent to the right side of the cutout away
from the burner box. Tighten the mounting
bracket to the burner box. Insert the 2-l/2”
clamping screw into the mounting bracket. Use a
screwdriver to tighten the screw against the
underside of the countertop.
Remove the pencil outline from countertop.
191
. Install the pressure regulator with the
arrow on the regulator pointing up
toward unit and in a position where you can
reach the access cap.
3W nipple flexible connector
3/B” nipple
318” adapter
\
manual shutoff valve
pressure
regulator
- All connections must
I
be wrench-tightened.
Assemble the flexible connector from
the aas
SUDDIV
oipe to the oressure
regulator in orde;: Man;l’aishutoff valve, 318”
nipple, 3/8” adapter, flexible connector, 318”
adapter, and 3/8” nipple.
22
Numbers
correspond to
steps.
Use pipe-joint compound made for
use with NATURAL and L.P. gas to
seal all gas connections. If flexible connectors
are used, be certain connectors are not kinked.
Open the shutoff valve in the gas supply line.
Wait a few minutes for gas to move through the
gas line.
1131
H Use a brush and liquid detergent to
- test all gas connections for leaks.
Bubbles around connections will indicate a leak.
If a leak appears, shut off gas valve controls and
adjust connections. Then check connections
again. NEVER TEST FOR GAS LEAKS WITH A
MATCH OR OTHER FLAME. Clean all detergent
solution from cooktop.
