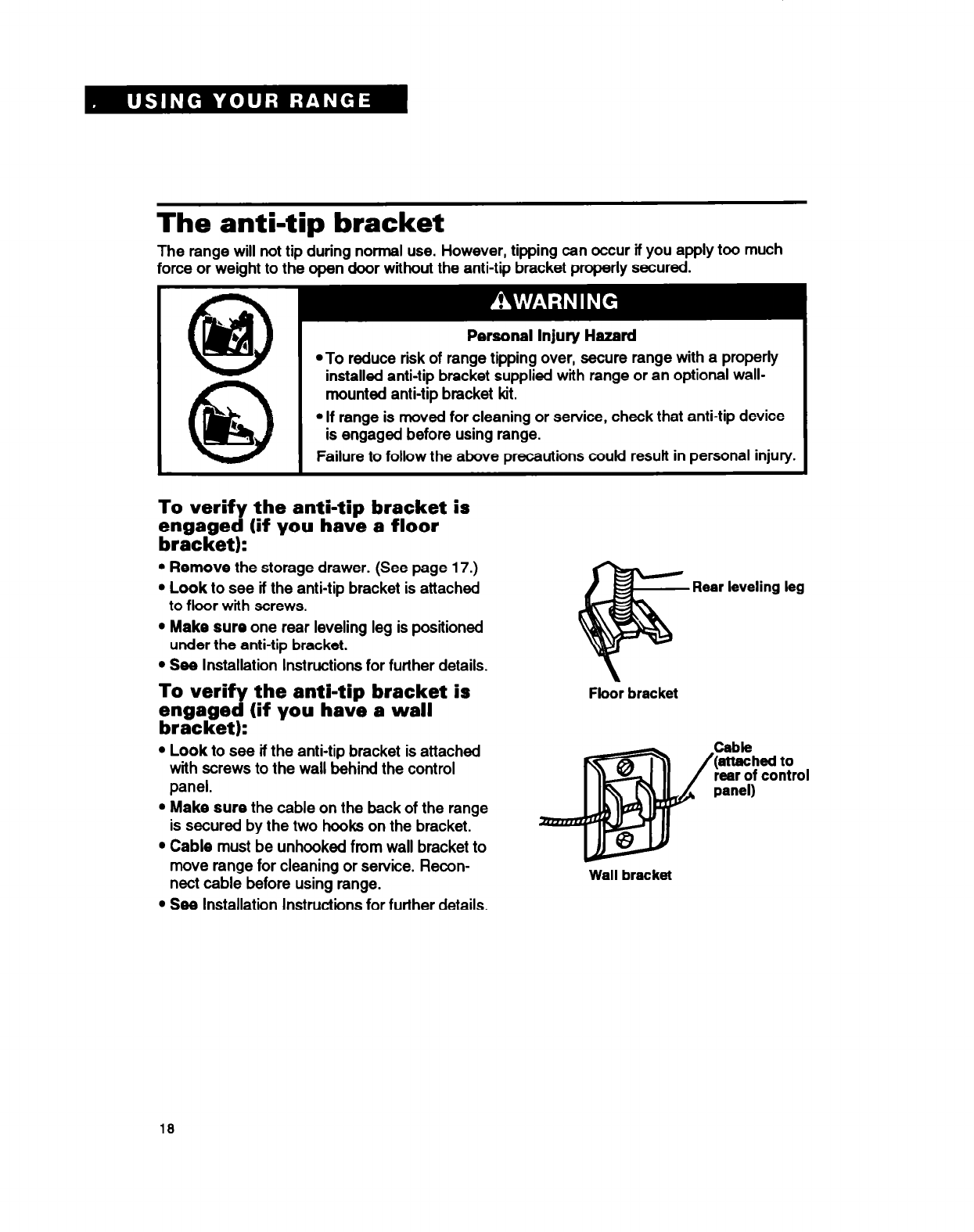

The anti-tip bracket
The range will not tip during normal use. However, tipping can occur if you apply too much
force or weight to the open door without the anti-tip bracket properly secured.
Personal injury Hazard
*To reduce risk of range tipping over, secure range with a properly
installed anti-tip bracket supplied with range or an optional wall-
mounted anti-tip bracket kit.
l
If range is moved for cleaning or service, check that anti-tip device
is engaged before using range.
Failure to follow the above precautions coukl result in personal injury.
To verify the anti-tip bracket is
engaged (if you have a floor
bracket):
l
Remove
the storage drawer. (See page 17.)
l
Look to see if the anti-tip bracket is attached
to floor with screws.
l
Make sure
one rear leveling leg is positioned
under the anti-tip bracket.
l
See Installation Instructions for further details.
To verify the anti-tip bracket is
engaged (if you have a wall
brat ket):
l
Look to see if the anti-tip bracket is attached
with screws to the wall behind the control
panel.
l
Make sure
the cable on the back of the range
is secured by the two hooks on the bracket.
l
Cable
must be unhooked from wall bracket to
move range for cleaning or service. Recon-
nect cable before using range.
l
SW Installation Instructions for further details.
Rear leveling leg
Floor bracket
Cable
(attached to
rear of control
panel)
Wall bracket
18
