Jam locations
Use this illustration to identify locations of jams. In addition, instructions appear on the control panel to
direct you to the location of jammed paper and how to clear it.
NOTE: Internal areas of the product that might need to be opened to clear jams have green handles
or green labels.

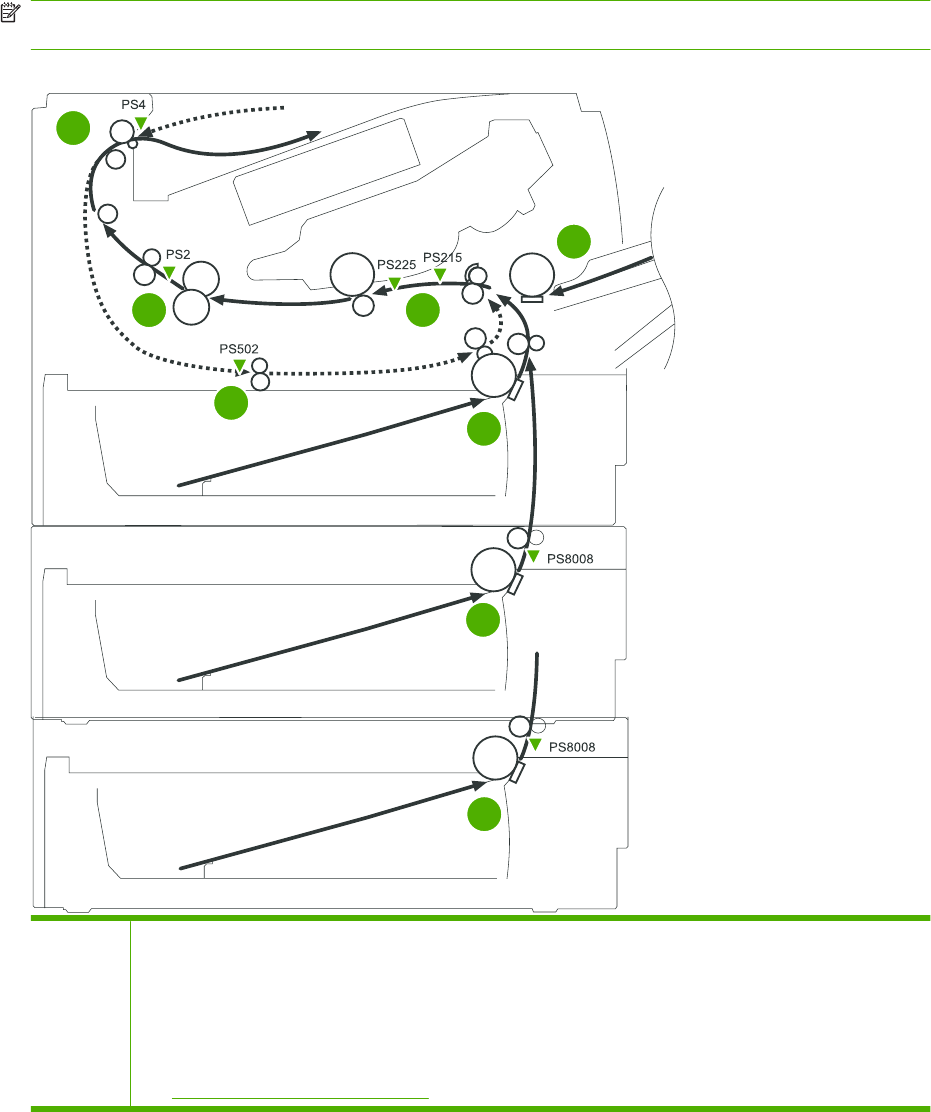

Figure 3-33 Jam locations
1
2
3
4
5
6
7
3
1 Tray 1 (multipurpose tray) area
13.JJ.NT JAM IN TRAY 1
13.JJ.NT JAM IN TRAY <X>
13.JJ.NT PAPER JAM OPEN INPUT TRAYS
See
Clear jams from Tray 1 on page 222.
