Formatter cover and formatter PCA
WARNING! ESD sensitive component.
1. Remove the DIMM cover. See DIMM cover and DIMM on page 57.
2. Remove one screw (callout 1), and then slide the formatter cover toward the back of the product
to release it.

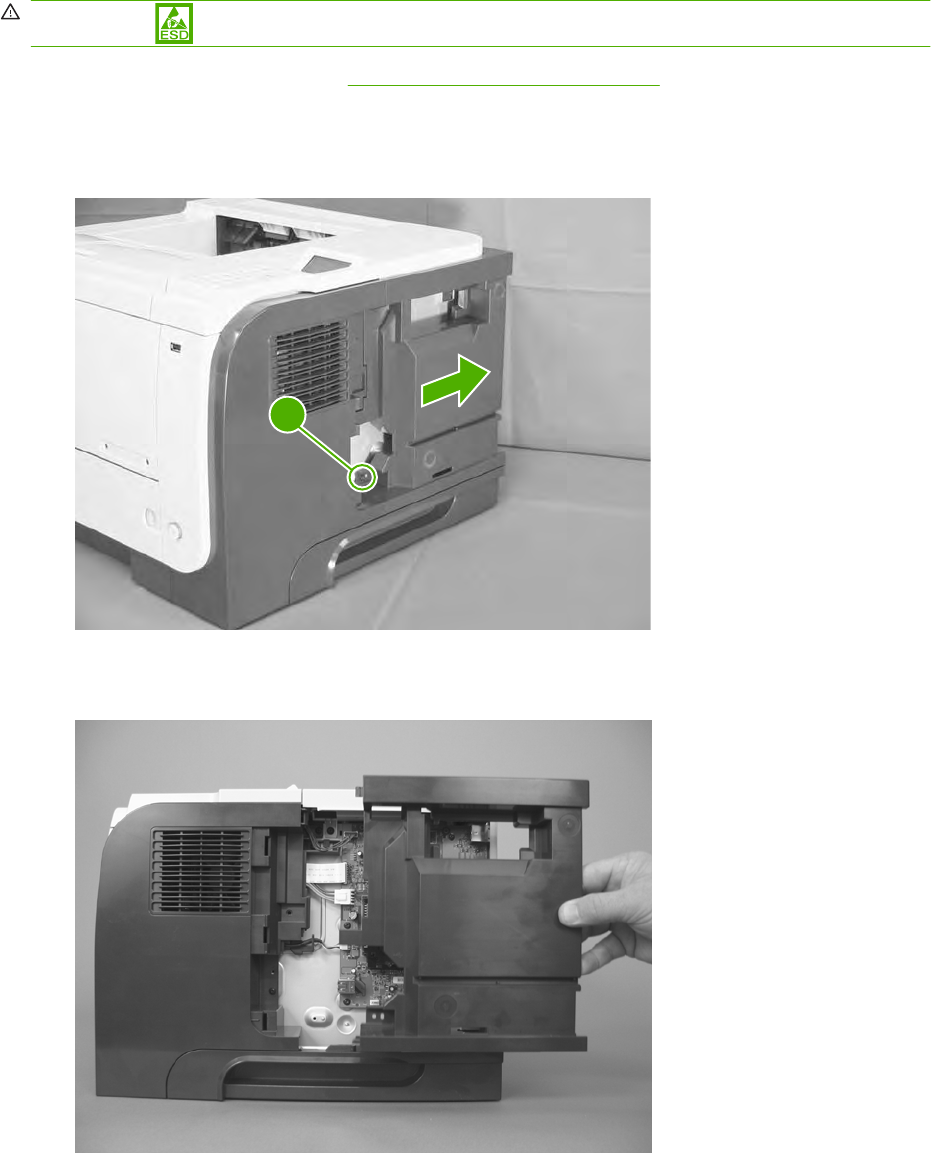

Figure 2-16 Remove the formatter cover and formatter PCA (1 of 4)
1
3. Lift the cover away from the product.
Figure 2-17 Remove the formatter cover and formatter PCA (2 of 4)
60 Chapter 2 Removal and replacement ENWW
