Tray 1 (multipurpose tray) cover
1. Before proceeding, remove the following components:
●
Rear-door assembly. See
Rear-door assembly on page 62.
●
Left cover. See
Left cover on page 66.
2. Carefully release two retaining arms (callout 1).

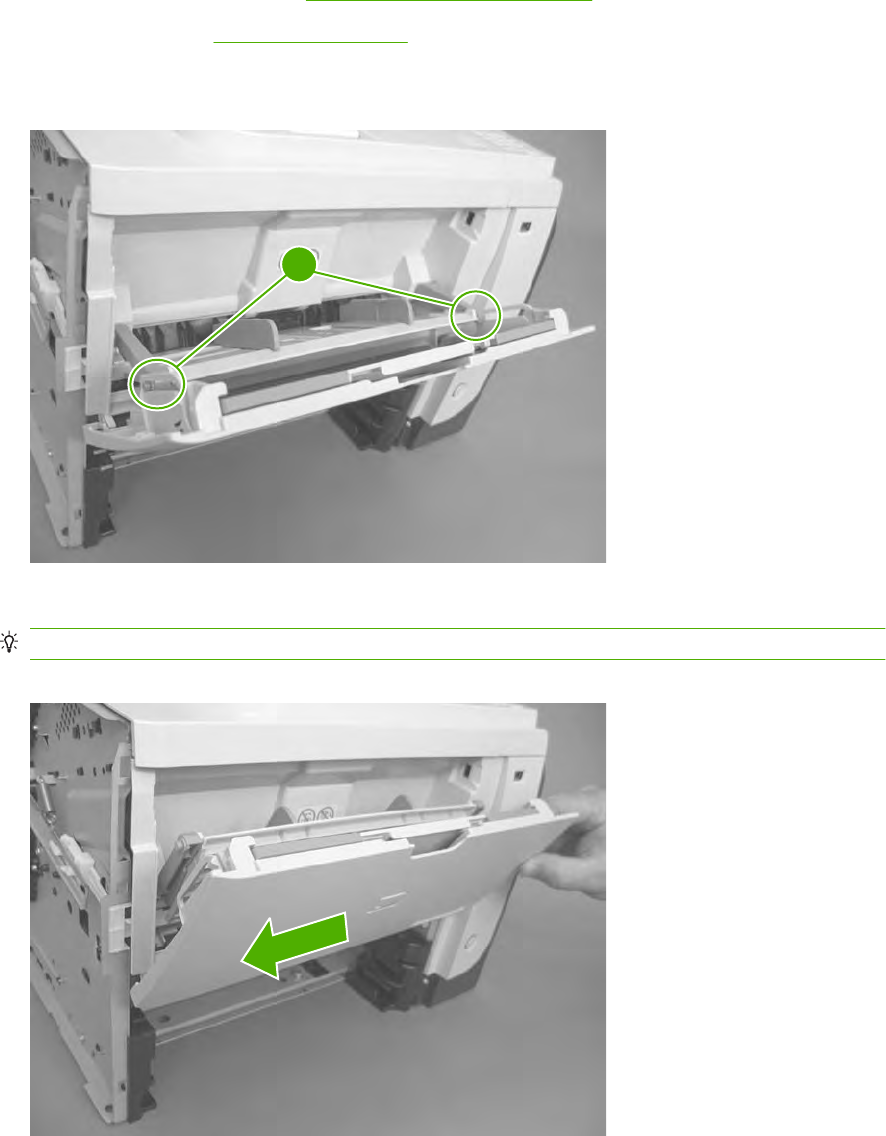

Figure 2-34 Remove Tray 1 cover (1 of 3)
1
3. Slightly lower the cover, and then slide it toward the left side of the product.
TIP: If you lower the tray too far, it will not slide off of the hinge pins.
Figure 2-35 Remove Tray 1 cover (2 of 3)
