Developing stage
Print cartridge

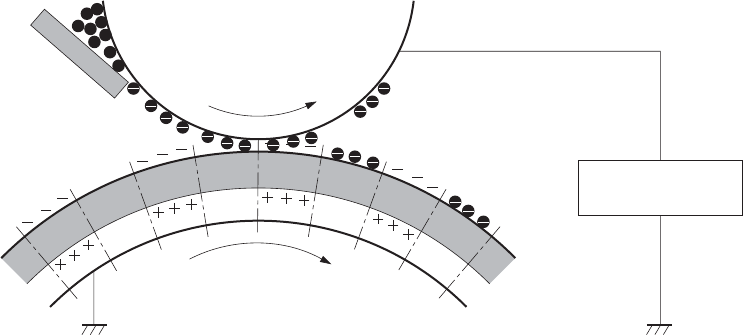

Step 3: In the print cartridge, the developing cylinder comes in contact with the photosensitive drum to
deposit toner onto the electrostatic latent image.
Figure 1-20 Print cartridge
Blade
Photosensitive drum
Unexposed area
Exposed area Unexposed area
Exposed area
Developing roller
Developing bias
Toner acquires a negative charge from the friction that occurs when the developing roller rotatesagainst
the developing blade. The developing bias is applied to the developing roller to make a potential
difference between the developing roller and the photosensitive drum. The negatively charged toner is
attracted to the latent image on the photosensitive drum because the drum surface has a higher
potential.
ENWW Image-formation system 29
