Components 5
E-EQ-MX6RG-E-ARC MX6 Reference Guide

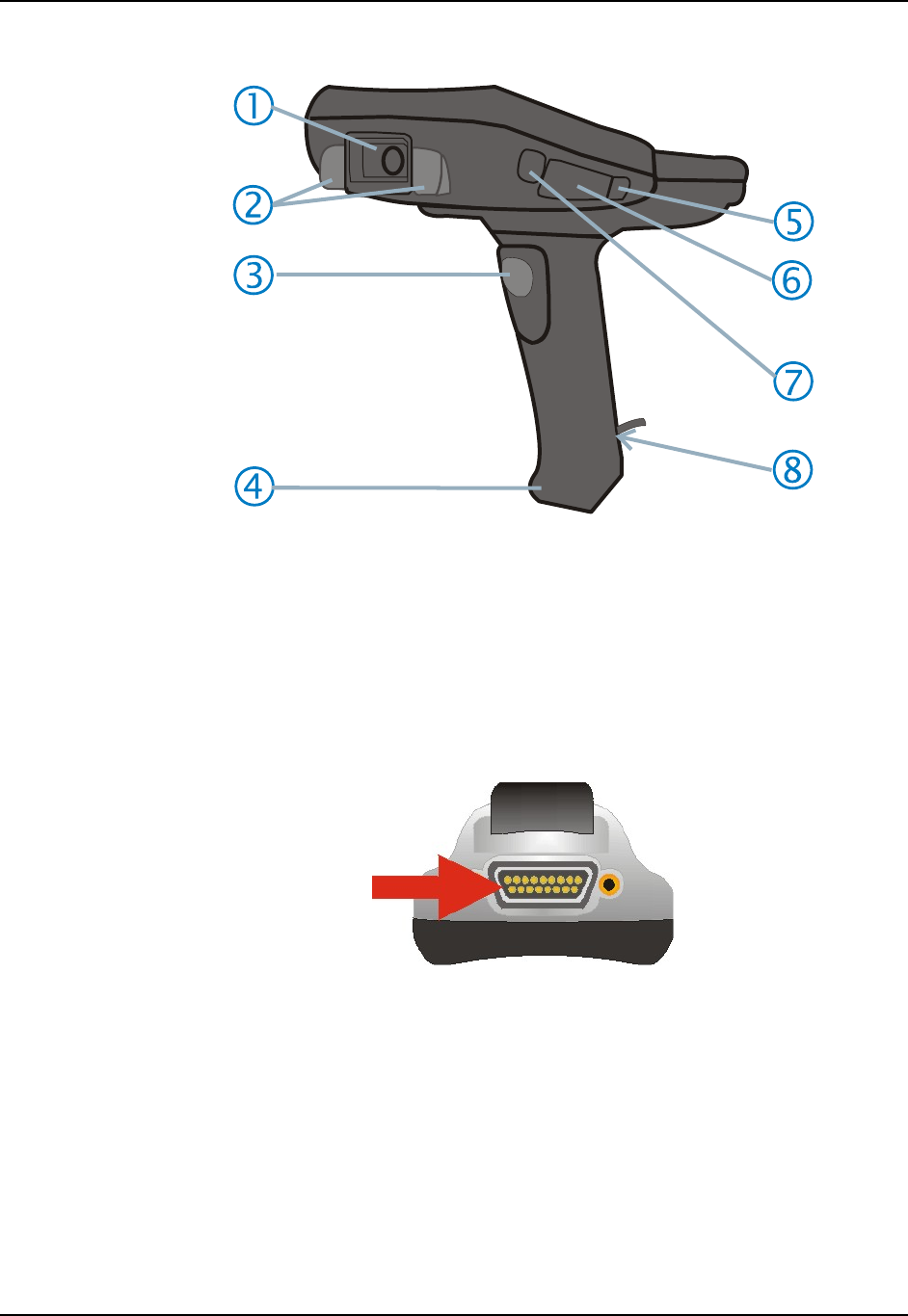

Figure 1-5 With Trigger Handle Installed
1. Imager or Scanner Aperture
2. Rubber Nose Bumpers
3. Scan Trigger
4. Rubber Bumper
5. Headphone Jack
6. Secure Digital Access Door
7. IrDA Port
8. Stylus and Tether (storage inside base of handle)
Figure 1-6 RS-232/USB Communications and Charging Port
Related Manuals
The “MX6 User’s Guide” contains MX6 user instructions. Refer to the "MX6 Cradle Reference
Guide" for technical information relating to the MX6 docking cradles.
