CLEVELAND RANGE, LLC
1333 East 179th St., Cleveland, Ohio 44110-2574
THIS DESIGN DESCRIBES A PROPRIETARY ITEM AND IS THE PROPERTY OF CLEVELAND RANGE.
THIS DRAWING IS NOT TO BE COPIED OR USED WITHOUT THE APPROVAL OF CLEVELAND RANGE.
TOLERANCES
(UNLESS OTHERWISE
NOTED)
DO NOT SCALE
PRINTED DRAWING
DRAWN BY DATE
TITLE
REV
SHEET OFDRAWING NO.SIZE
ANGULAR
`
`
DECIMAL
0.030
1∞

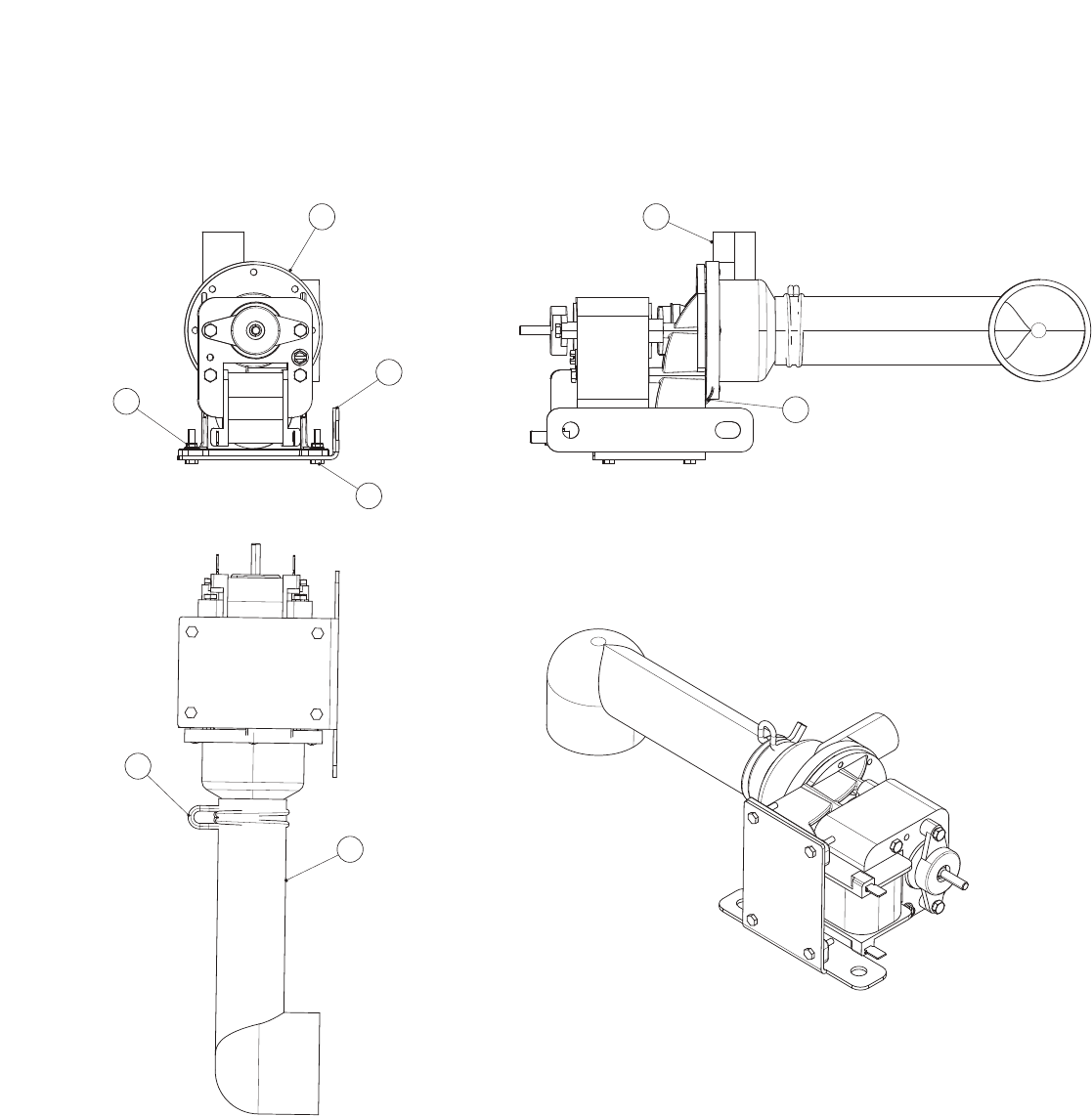

PUMP, 110V, GAS STEAM GENERATOR
CCE
5/9/2005
B
C
C2314991
1
1
11
C6015100 DRAIN ELBOW FOR STEAM GENERATOR P3
21
C6005299
SUPPORT BUSHING, STEAM GENERATOR - PUMP, P2/P3
3
1
C8009057
WIRE CLAMP D: 36, BLACK P2/P3
4
1
300506
DRAIN PUMP WITH 110 V MOTOR
5
1
111630
BRACKET, PUMP, GAS GEN
6
4
111633
SCREW, HEX HD, M3 x 16, SST, FULLY THREADED
7
4
C8017008
NUT, LOCKING, SERRATED, M3 A2 P3
ITEM
QTY
PART N0.
DESCRIPTION
7
3
4 4
5
6
22
1
C2314991 C
0706
PUMP, STEAM GENERATOR, GAS, 110V
ALL GAS MODELS
IITTEEMM QQTTYY PPAARRTT NN00.. DDEESSCCRRIIPPTTIIOONN
1 1 C6015100 DRAIN ELBOW FOR STEAM GENERATOR
2 1 C6005299 SUPPORT BUSHING, STEAM GENERATOR - PUMP
3 1 C8009057 WIRE CLAMP D: 36, BLACK
4 1 300506 DRAIN PUMP WITH 110 V MOTOR
5 1 111630 BRACKET, PUMP, GAS GEN
6 4 111633 SCREW, HEX HD, M3 x 16, SST, FULLY THREADED
7 4 C8017008 NUT, LOCKING, SERRATED
38
C6015101
