6–8 404569-001 Service Reference Guide, dx2100 MT
Removal and Replacement Procedures— Microtower (MT) Chassis

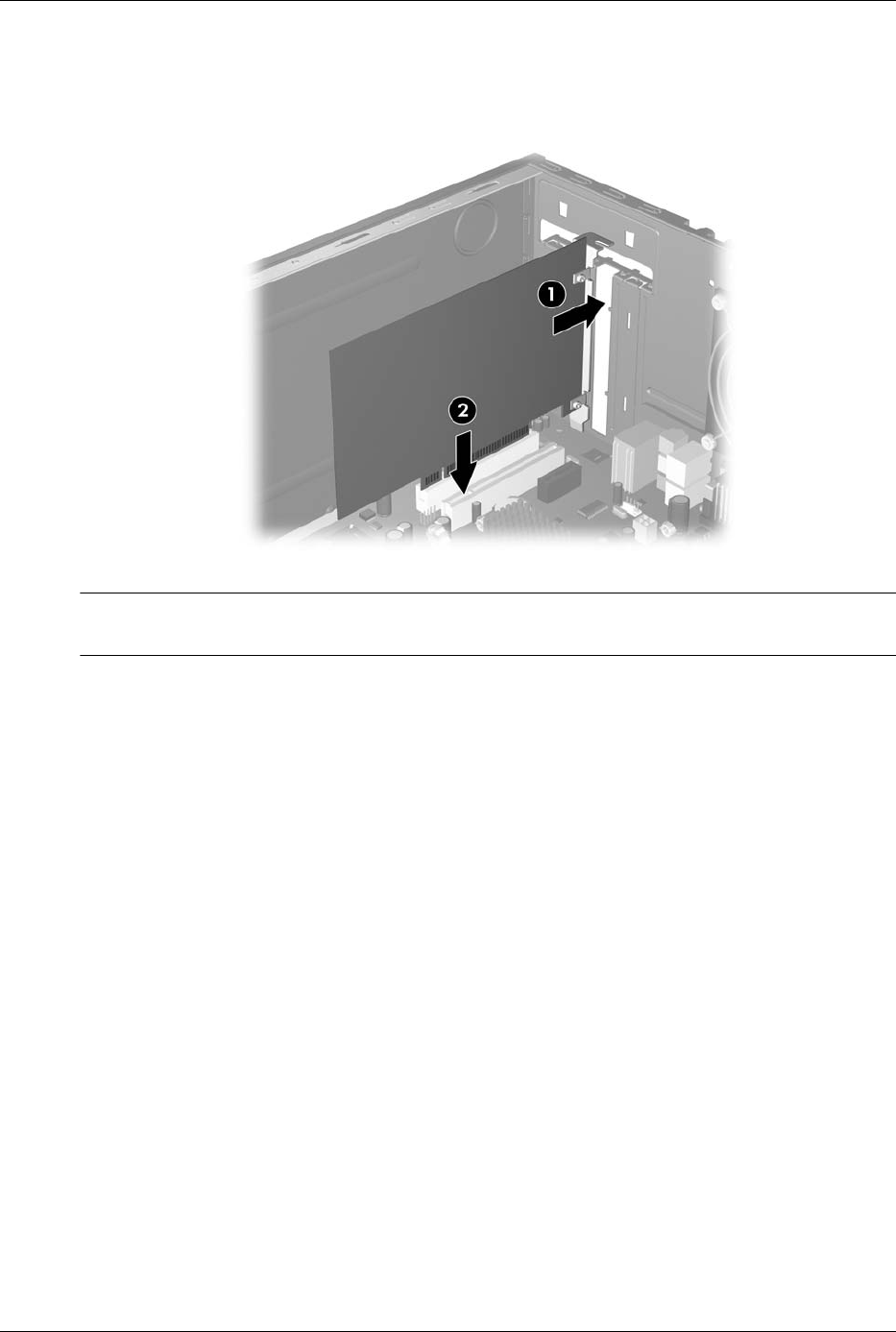

9. With the card aligned so the mounting bracket will fit firmly against the computer
backwall
1, slide the expansion card into the expansion socket and press it firmly into
place
2.
✎
When you install an expansion card, make sure you press firmly on the card so that the entire
connector seats properly in the expansion card socket.
10. Reinstall the slot cover lock and its retaining screw.
11. Replace the access panel.
12. Connect external cables to the installed card, if needed.
Reconfigure the computer, if necessary.
