INSTALLATION
Before installing, check the electrical service to make sure it agrees with the electrical specifications
on the rating plate located inside the cabinet.
UNCRATING
Immediately after unpacking, check for possible shipping damage. If the chiller is found to be
damaged, save the packaging material and contact the carrier within 15 days of delivery.
DO NOT LAY THE CHILLER ON ITS FRONT, BACK OR SIDES. EXERCISE EXTREME CARE WHEN
REMOVING THE CRATE BOTTOM ESPECIALLY WHEN THE LAST SHIPPING BOLT IS REMOVED.
CABINET MUST BE PROPERLY BLOCKED AND STABLE.
Cabinet is bolted onto a wood shipping base from underneath using the Threaded Hole (Fig.1).
Remove shipping bolts.
LEGS OR CASTERS
The HQC45, HQCF45 and HQC90 must be installed with legs or casters.
WARNING: THE CABINET MUST BE BLOCKED AND STABLE BEFORE INSTALLING THE LEGS OR
CASTERS.
Legs (Optional)
To install the legs, raise up and block the cabinet a minimum of 7" from the floor and thread the legs
into the threaded holes on the bottom of the cabinet.
The chiller must be level to operate properly. Turn the adjustable feet in or out as required to level the
chiller front-to-back and side-to-side (Fig. 1).
Casters (Optional)
Casters may be supplied for use on self-contained units. The swivel casters with brake should be
installed in front; casters without brake, in rear (Fig. 2). Caster equipped chillers should be located on
a level floor.

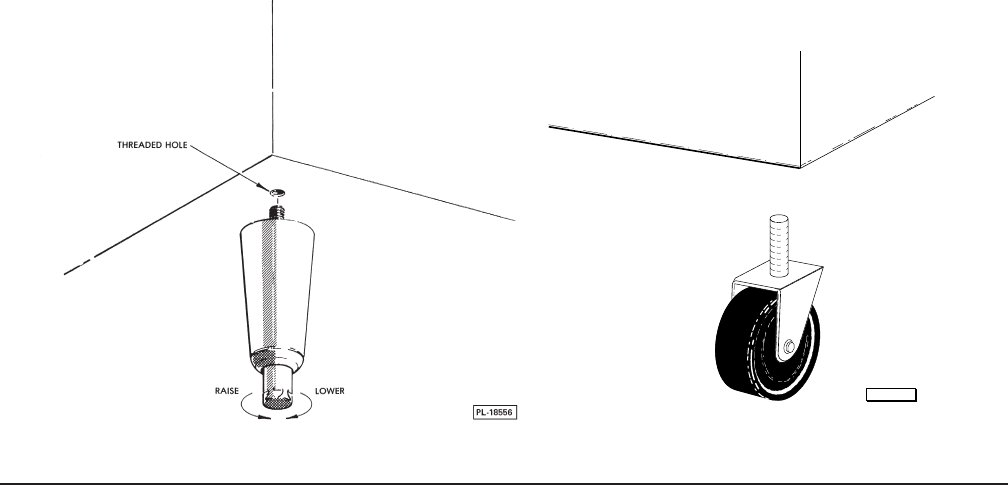

Fig. 1 Fig. 2
PL-50909
