Kenmore 795.7105 Refrigerator User Manual

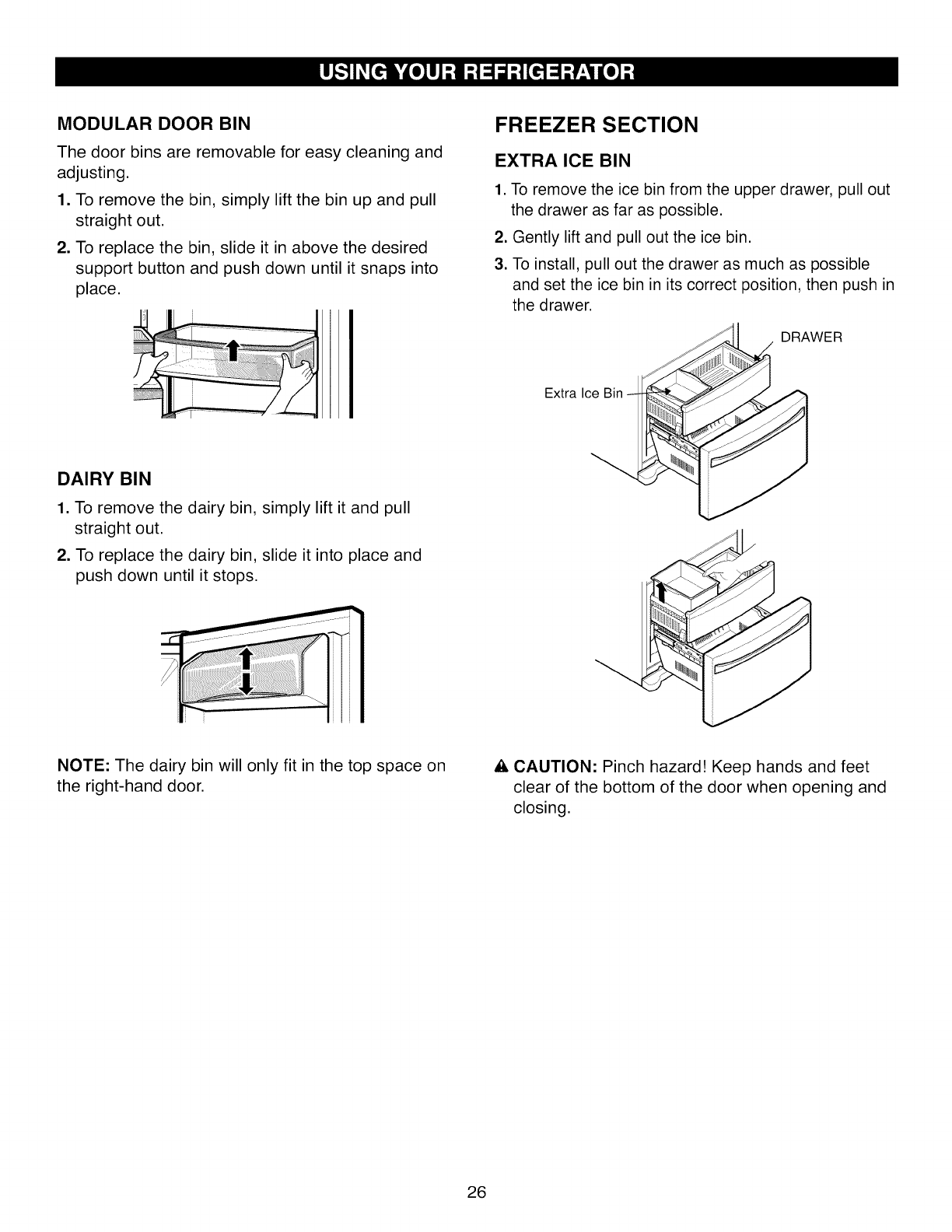

MODULAR DOOR BIN
The door bins are removable for easy cleaning and
adjusting.
1. To remove the bin, simply lift the bin up and pull
straight out.
2. To replace the bin, slide it in above the desired
support button and push down until it snaps into
place.
FREEZER SECTION
EXTRA ICE BIN
1. To remove the ice bin from the upper drawer, pull out
the drawer as far as possible.
2. Gently lift and pull out the ice bin.
3. To install, pull out the drawer as much as possible
and set the ice bin in its correct position, then push in
the drawer.
DRAWER
Extra Ice
DAIRY BIN
1. To remove the dairy bin, simply lift it and pull
straight out.
2. To replace the dairy bin, slide it into place and
push down until it stops.
y_
y-.._
NOTE: The dairy bin will only fit in the top space on
the right-hand door.
, CAUTION: Pinch hazard! Keep hands and feet
clear of the bottom of the door when opening and
closing.
26
