WIRING
Note: This range hood must be properly
grounded. The unit should be installed by a
qualified electrician in accordance with all
applicable national and local electrical
codes.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the
event of an electrical short circuit, grounding
reduces the risk of electric shock by providing
an escape wire for the electric current. This
appliance is equipped with a cord having a
grounding wire with a grounding plug. The
plug must be plugged into an outlet that is
properly installed and grounded.
WARNING - Improper grounding can result in a risk of electric shock.
Consult a qualified electrician if the grounding instructions are not completely
understood, or if doubt exists as to whether the appliance is properly grounded.
Do not use an extension cord. If the power supply cord is too short, have a qualified
electrician install an outlet near the appliance.
Set the electrical power supply within the space covered by the decorative flues.

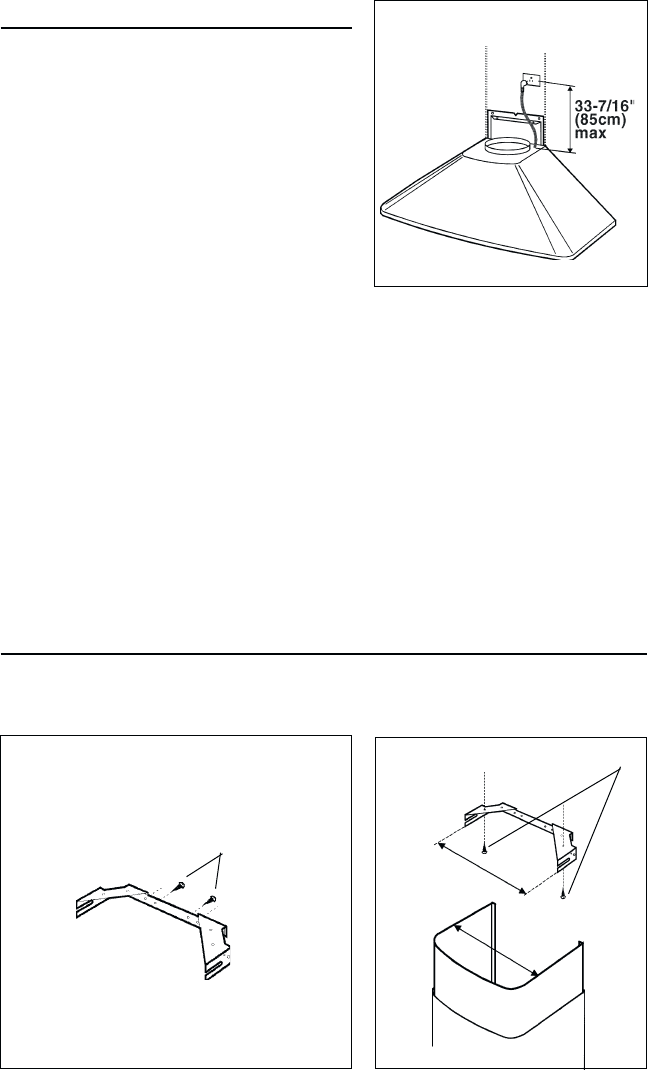

Position the power socket at a maximum distance of 33-7/16” (850 mm) from where
the lead exits from the hood (see illustration alongside). Make sure this does not
interfere with the bracket fastening area or with the decorative pipe (where the flue
touches the wall).
Fit the plug into the power socket.
CONNECT DUCTWORK
Adjust the width of the flue mounting bracket using screws (A) indicated in Figure.
Use screws (B) and wall anchors to secure flue mounting bracket to the ceiling as
shown.
FLUE MOUNTING
BRACKET
SCREWS A
SCREWS B
=
=
