Serial-port-connected firmware upload
1

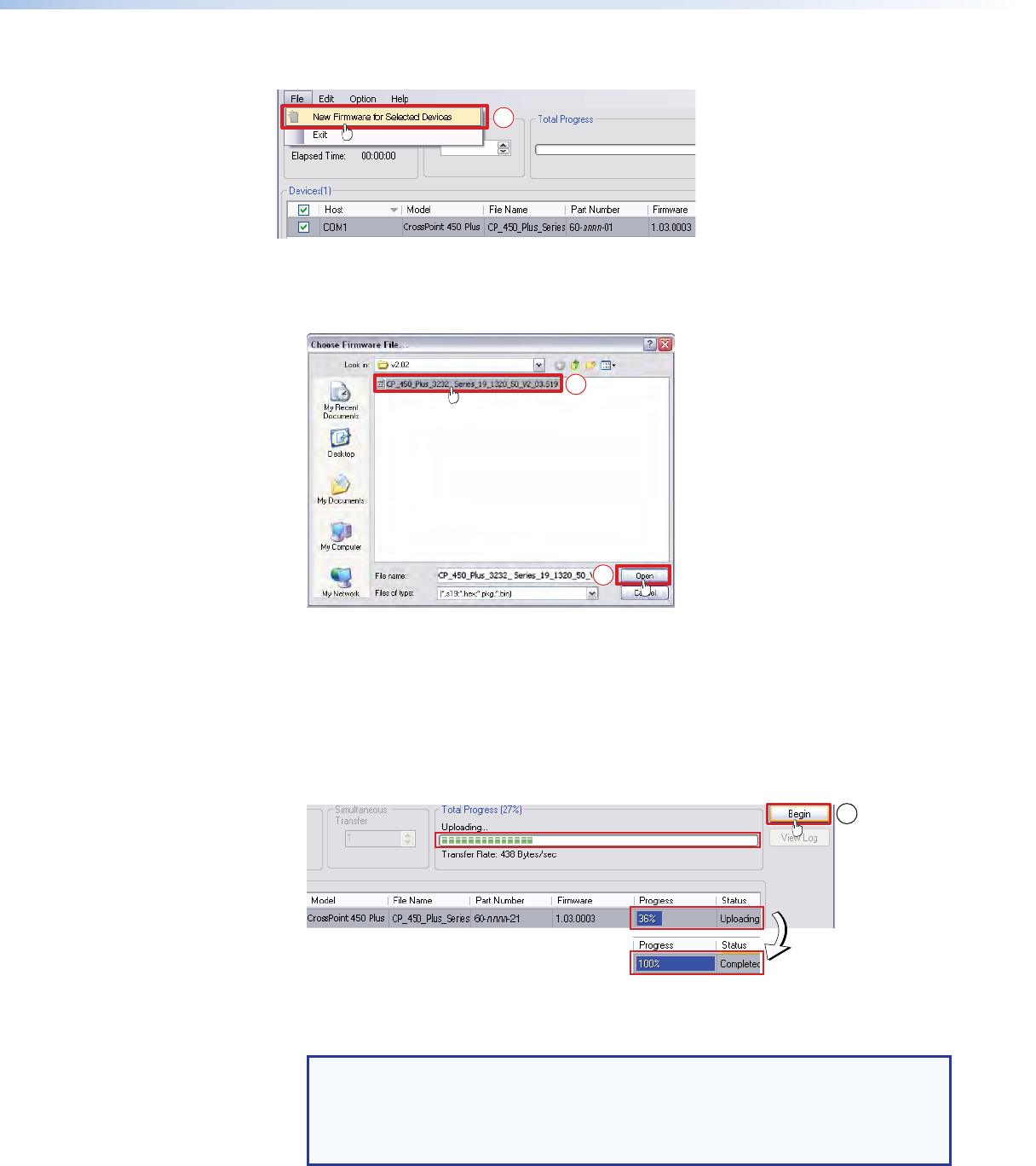

Figure 70. Extron Firmware Loader Window
1. Select the matrix switcher and click File > New Firmware for Selected Devices. The
Choose Firmware File dialog box opens (see figure 71).
2
2
Figure 71. Choose Firmware File Window
2. Navigate to and select the new firmware file. Click Open. The Choose Firmware File
window closes.
3. In the Firmware Loader window, click Begin (see figure 72).
The Total Progress and Progress status bars show the upload progress. The firmware
upload may take several minutes. Once the status bars have progressed from 0% to
100%, and Status is listed as Complete, the firmware loader utility resets the switcher.
3
Figure 72. Firmware Loader Screen
4. Click Exit to close the Firmware Loader.
NOTE: The firmware loader increases the baud rate to 115,200. The firmware
loader may not return the serial port to its earlier baud rate, making communications
with the switcher impossible. If you cannot communicate with the switcher after a
firmware upload, change the baud rate on your computer and, if desired, change the
baud rate using the Set serial port parameters SIS command on page 109.
