Introduction
3
Oven Components
Conveyor Assembly -- conveyor belt and rack
assembly that carries product through the oven.
Control Box --- contains electrical wiring, cooling
fan, drive motor and drive chain.
Drive Motor --- provides power to move the con-
veyor belt. Located inside the control box.
Drive Chain --- connects the drive motor sprock et
to the drive side conveyor belt support sprocket.
Located inside the control box.
Baking Chamber --- products pass through the
baking chamber on the conveyor belt for cooking.
Oven Controls --- used to control oven tempera-
ture, belt speed and other functions.
Nozzles --- distribute heated air to bottom of the
baking chamber. Located inside the oven, under
theconveyorbelt.
Crumb Pan --- catches crumbs from products on
the conveyor. Located under conveyor belt at both
ends of the baking chamber.
Air Flow Plates --- distribute heated air to the top
of baking chamber. Located inside of oven at t he
top of baking chamber.
Emergency Shut Down Switch --- on re m ot e co n -
trol ovens, allows user to turn oven and conveyor
offinanemergency.Do not use for general shut
down.

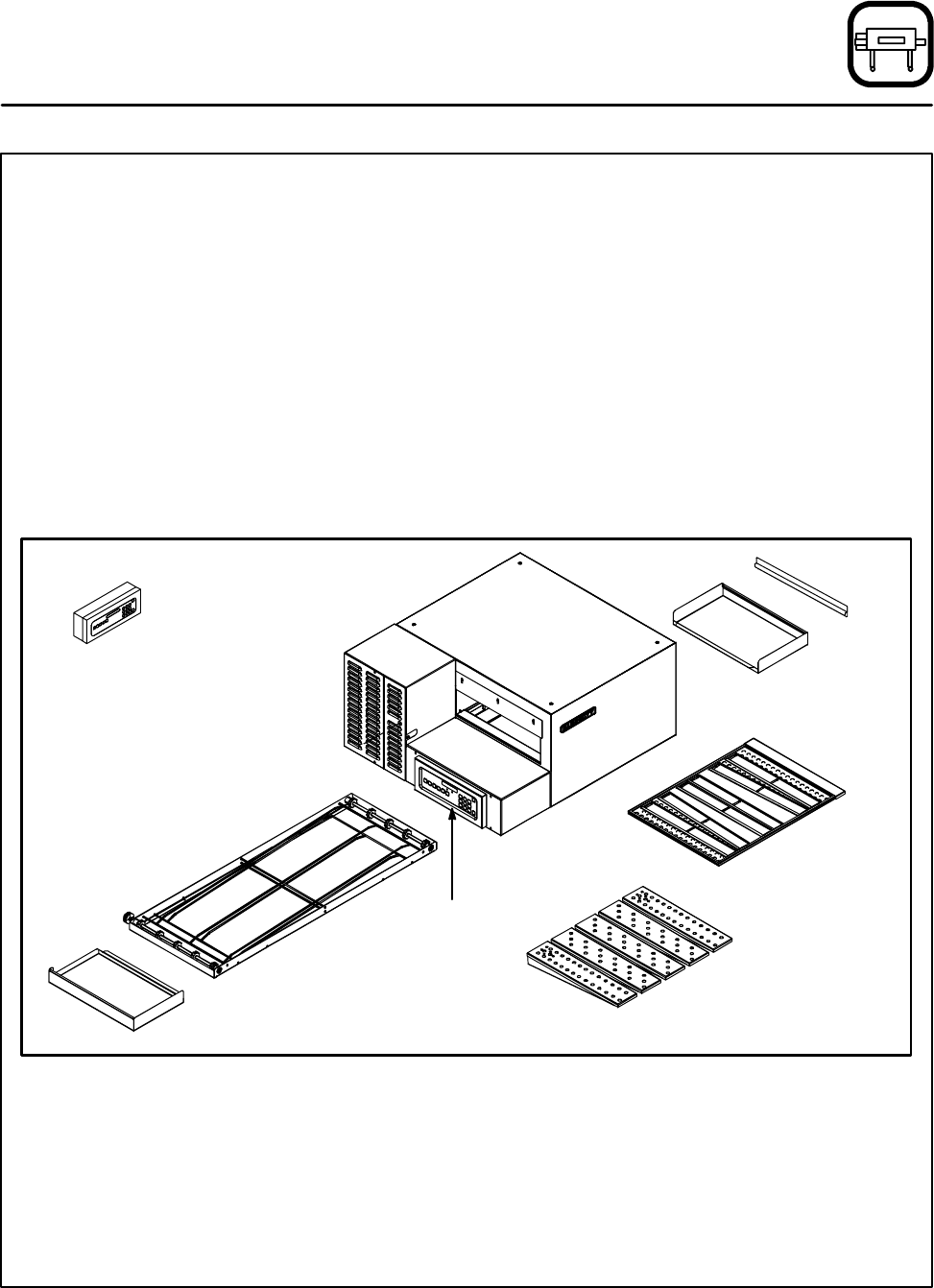

Drive Side
Crumb Pan
Conveyor Assembly
(shown without belt)
Product
Stop
Air Flow Plate
Nozzles
Control B o x
Integral
Oven Control
Idle Side
Crumb Pan
Optional
Remote
Oven Control
Figure 2
