Installation instructions

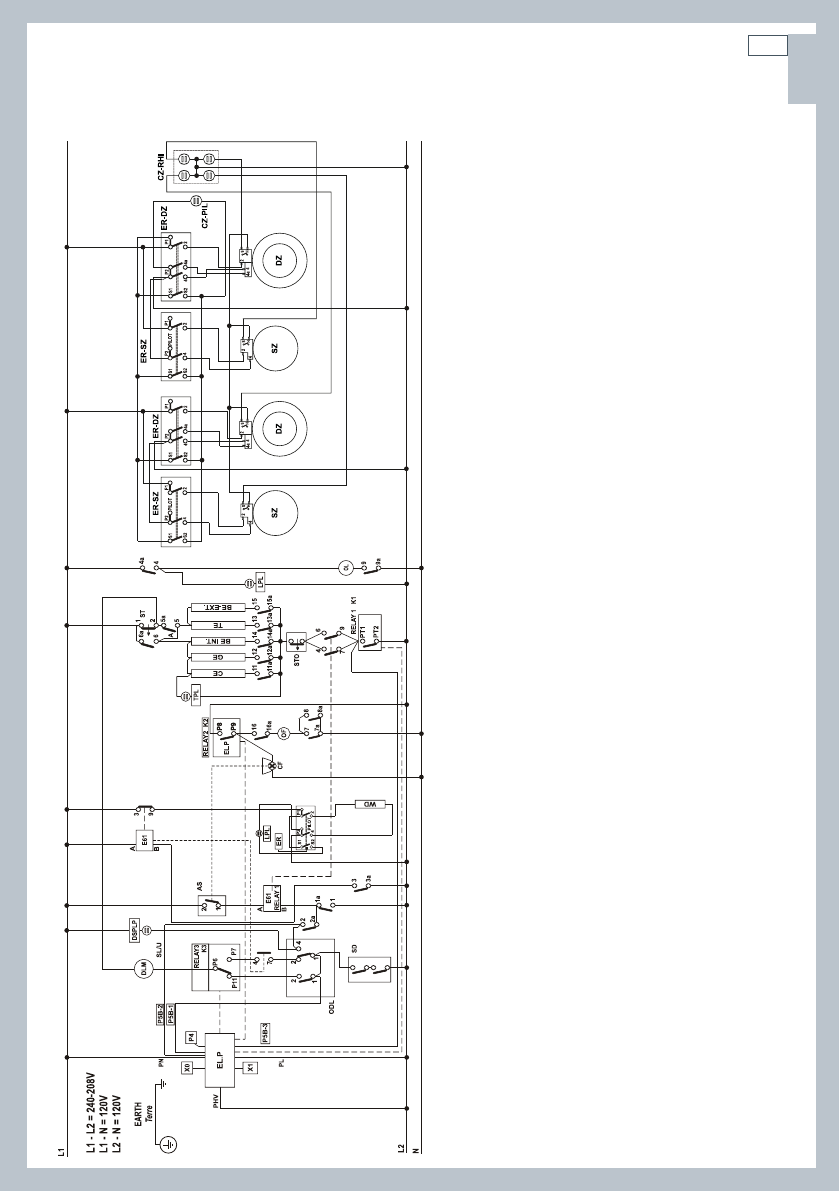

Wiring diagram
ELECTRIC DIAGRAM KEY
SZ SINGLE COOKING ZONE
DZ DOUBLE COOKING ZONE
ER-SZ ENERGY REGULATOR (SINGLE ZONE)
ER-DZ ENERGY REGULATOR (DOUBLE ZONE)
CZ-PIL COOKING ZONES POWER INDICATOR LAMP
CZ-RHI COOKING ZONES RESIDUAL HEAT INDICATOR LAMPS
OL OVEN LAMP
E61 RELAY
CE CIRCULAR ELEMENT
GE BROIL ELEMENT
TE TOP ELEMENT
BE-INT BOTTOM ELEMENT INT.
BE-EXT BOTTOM ELEMENT EXT.
TPL THERMOSTAT PILOT LAMP
DSPL DOOR SAFETY PILOT LAMP
CF COOLING FAN
OF OVEN FAN
ER ENERGY REGULATOR
DLM DOOR LOCK MOTOR
SL/U STATUS LOCK/UNLOCK
LPL LINE PILOT LAMP
WD WARMING DRAWER ELEMENT
ST SAFETY THERMOSTAT
EL.P ELECTRONIC PROGRAMMER
SD DOOR STATUS, OPEN/CLOSED
ODL OVEN DOOR LATCH
AS AIR SWITCH
CONNECTIONS ON PROGRAMMER
PN/PL SUPPLY
K1 PROGRAM THERMOSTAT RELAY1
K2 COOLING/OVEN FAN RELAY2
K3 DOOR LOCK/UNLOCK RELAY3
PHV FUNCTION STATE
X0 THERMOSTAT ENCODER
X1 FUNCTIONS ENCODER
P4 PROBE
P5B WIRES P5B(1)+P5B(2)+P5B(3)
