Model C043Operating Procedures
Step 7

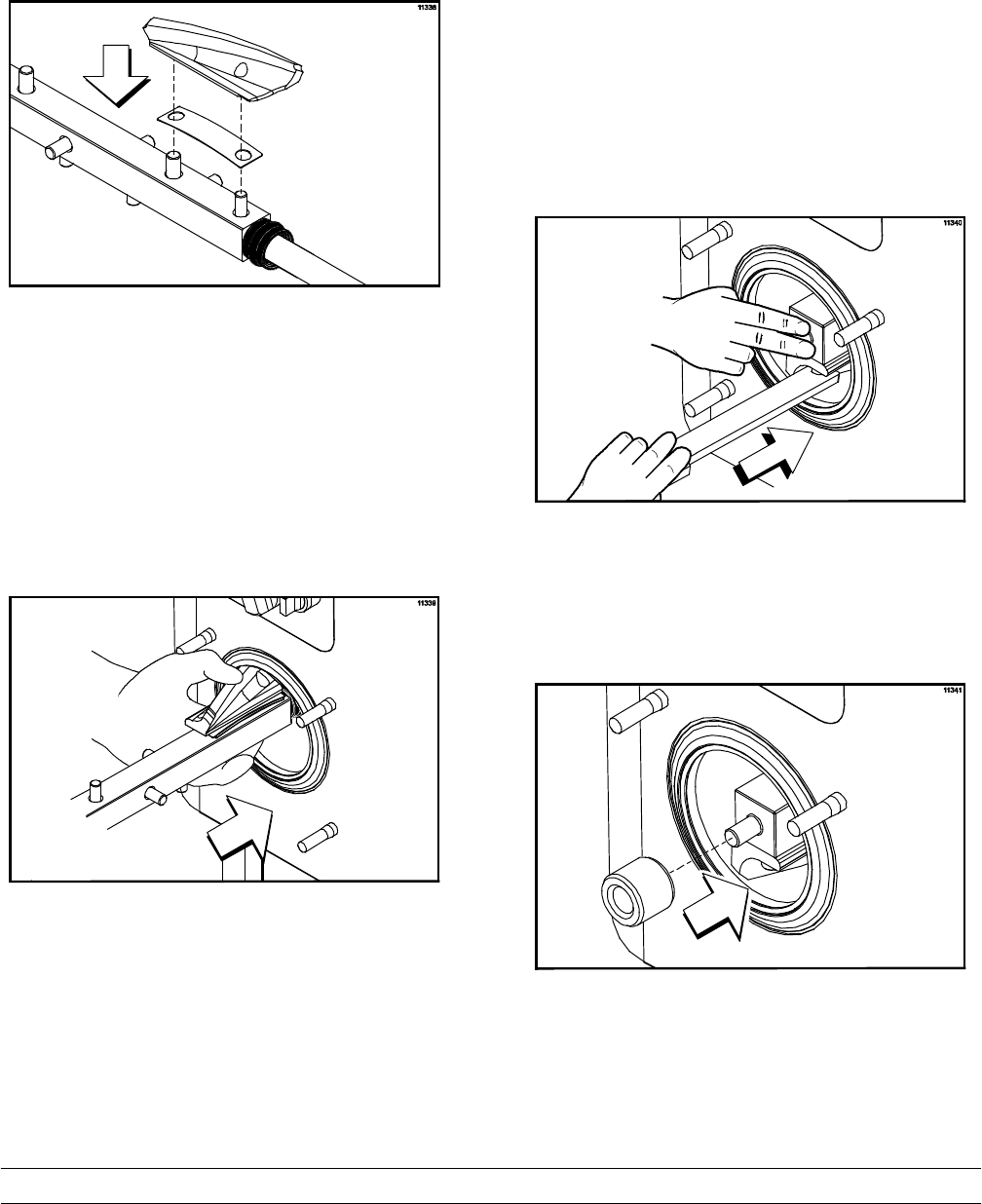

Starting at the hex end of the beater shaft, place a
metal leaf spring (arched upward) over the two pins
closest to that end. Install the long scraper blade on
top of the leaf spring. (Note: There is only one long
scraper blade per beater.)
Figure 11
Step 8
Place a leaf spring and a short scraper blade on the
next set of pins.
Step 9
Hold the two leaf springs and scraper blades in
place. Slide the beater shaft into the freezing
cylinder until the scraper blades are held in place by
the freezing cylinder. Rotate the beater shaft
counter-clockwise until the next set of pins is facing
up.
Figure 12
Step 10
Place a leaf spring and a short scraper blade on the
next set of pins. Slide the beater shaft into the
freezing cylinder until the blade is held in place by
the freezing cylinder. Rotate the beater shaft
counter-clockwise until the next set of pins is facing
up.
Step 11
Continue adding leaf springs and short scraper
blades to the beater shaft until all 12 blades are
installed.
Step 12
Slide the beater shaft into the freezing cylinder,
rotating the beater shaft slightly counter-clockwise.
Engage the hex end firmly into the drive coupling at
the back o f the machine. The square portion of the
beater shaft assembly should fit completely inside
the freezing cylinder. The bearing support pin will
extend beyond the freezing cylinder.
Note: It may be helpful to use the beater removal
tool to turn the beater while installing the beater.
Figure 13
Note: The drip pan is a convenient place to store
the beater removal tool.
Step 13
Install the front bearing on the bearing support pin.
Figure 14
Step 14
Repeat the assembly instructions on the
remaining freezing cylinders.
