Product Specifications
1” (2.5 cm)
Front of open door
Front of handle
Front panel
Rear of front panel
Backguard thickness
3” (7.6 cm)
backguard*
External handle
shown, some models
have integral handle
(see inside cover)
6” (15.2 cm)
backguard*
*
See table for compatibility
Product width:
29 15/16” (76.0 cm)
35”
(88.9 cm)
to
37”
(94.0 cm)
9” (22.9 cm)
backguard*
A
B
C
D
RR30NI[F]S:
3/8” (9.5 mm)
thick top trim
RR30N[F]S:
full stainless
steel side panels
RR30NI[F]S:
3” (7.6 cm)
partial stainless
steel side panels
(removable)
Product tolerances: ±1/16” (±1.6 mm), unless otherwise stated

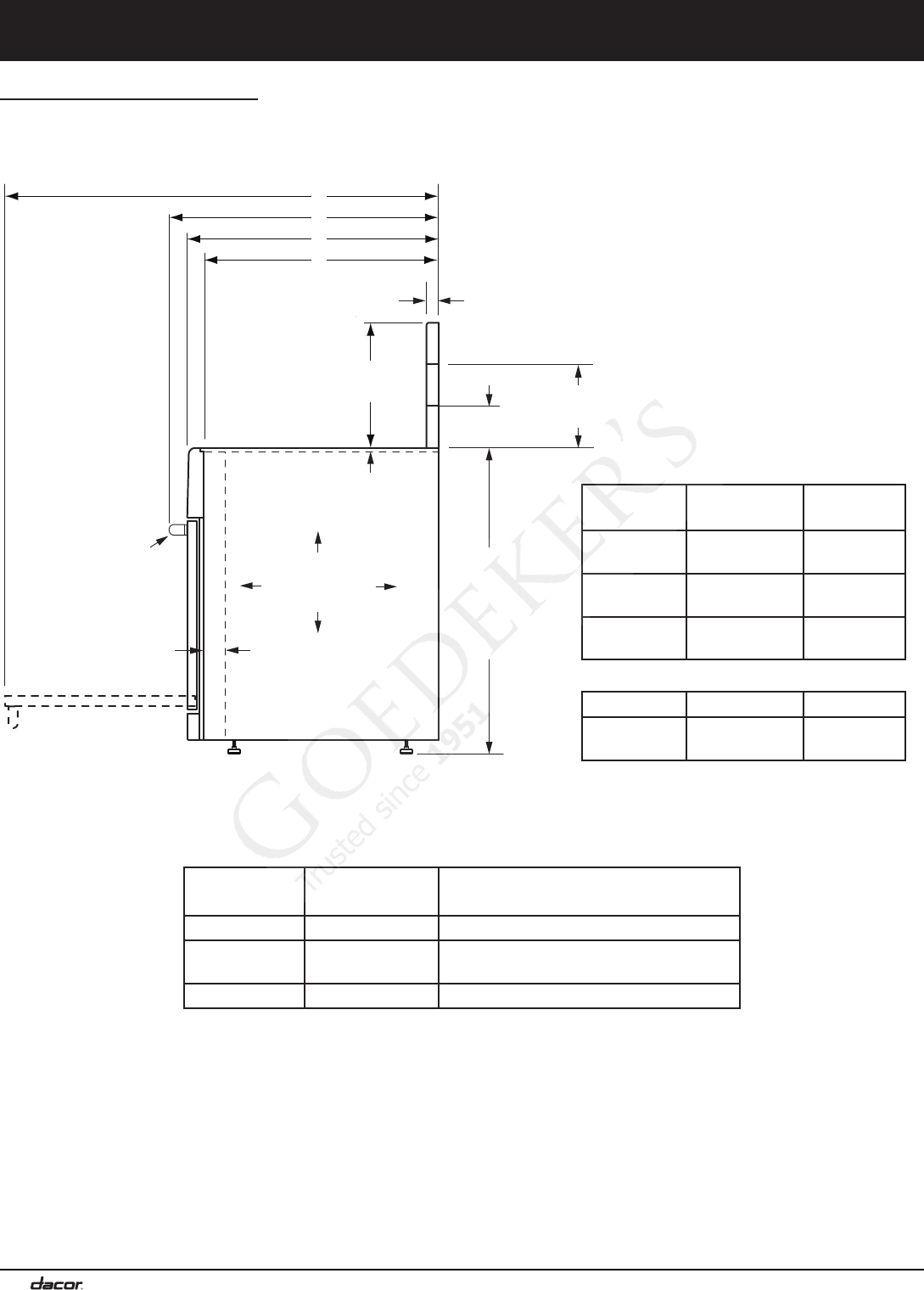

Product Dimensions
**Models RR30NIS and RR30NIFS come equipped from the factory with a flat
stainless steel trim piece in place of a backguard. A backguard may be purchased
as an optional accessory. Add an additional 1/16 inch to the depth dimensions
above when installing a backguard on models RR30NIS and RR30NIFS.
The trim on models RR30NS and RR30NFS are not compatible with a raised vent.
Models RR30NIS and RR30NIFS are compatible with Dacor raised vent models
ERV30 and ERV3015. Use only these specified raised vent models.
Available Backguards**
Part Number Description Compatibility
ADRB30E03 3 Inch Optional on all models
ADRB30E06 6 Inch
Standard on models RR30NS, RR30NFS
Optional on models RR30NIS, RR30NIFS
ADRB30E09 9 Inch Optional on all models
Dimension
RR30NS
RR30NFS
RR30NIS
RR30NIFS
A
46 1/4”
(117.5 cm)
46 1/16”
(117.0 cm)
C
25 1/2”
(64.8 cm)
25 5/16”
(64.3 cm)
D
23 3/8”
(59.4 cm)
23 3/16”
(58.9 cm)
Dimension RR30NS RR30NIS
B
27 7/8”
(70.8 cm)
27 11/16”
(70.3 cm)
