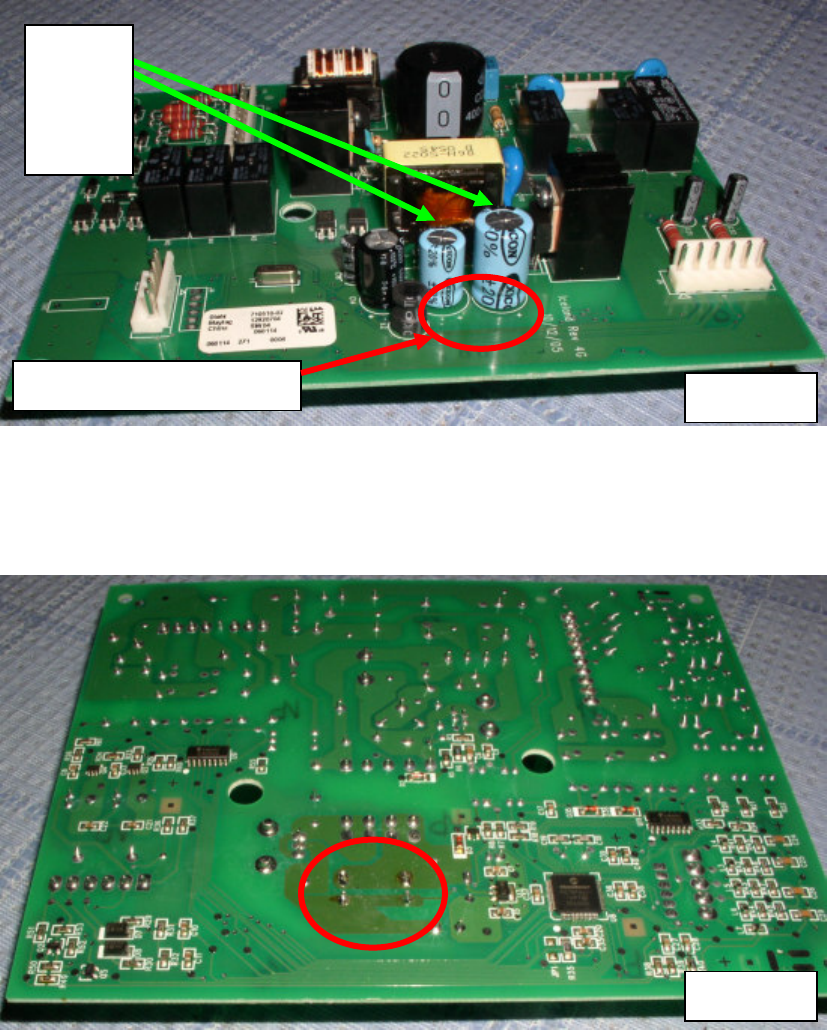

10. A view of the caps inserted in the PCB. Note that the negative or “minus” side of the caps and their
“dashed” markings are facing away from you. Also note the “plus” sign written on the PCB. (Fig 16)
11. Solder the 4 wire leads on the same side of the PCB you de-soldered. This is a critical step, so if you’re not
sure on how to solder, find someone who does. A bad solder joint here can make the connection useless.
12. Use your wire cutters to cut off the leads just above the solder connection. With any luck or skill, your
connections should look like this. (Fig 17)
Fig. 17
© 2007 Stephen Beck
© 2007 Stephen Beck
Fig. 16
Minus
signs
on
caps
Plus signs on PCB
