© 2007 by Stephen Beck V1.0 Page 18 of 19 Use at your Own Risk
Optional: Plug the flapper door
Optional: Plug the flapper door Optional: Plug the flapper door
Optional: Plug the flapper door back
back back
back in:
in:in:
in:
1. Unplug the fridge.

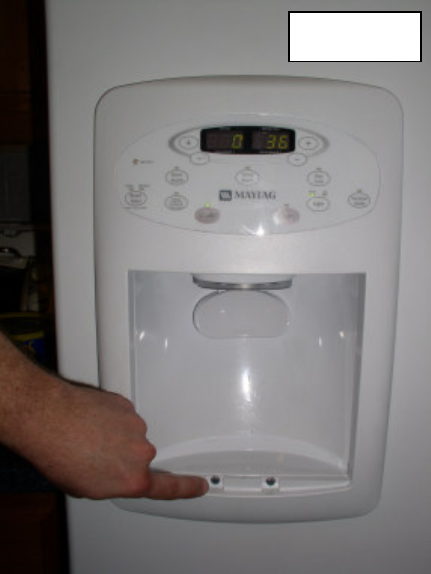

2. Remove the drip tray from the bottom of the ice/water dispenser recess on the front left door if needed. This
exposes (2) ¼” screws (Fig. 25)
3. Use the ¼” nut driver (or socket and ratchet) and remove the screws.
4. Understand that the upper part of this frame is held by a clip from behind that does not move. You need to
pull the lower part of the frame forward that will allow you to lift it up off the top clip. So…
5. GENTLY press the lower right side of the ice/water dispenser frame towards the center and forward to un-
snap the frame. Repeat for the lower left side of the frame.
6. GENTLY lift the frame up and away from the fridge a couple inches allowing you to see the wires behind.
© 2007 Stephen Beck
Fig. 25
