OPERATING INSTRUCTIONS

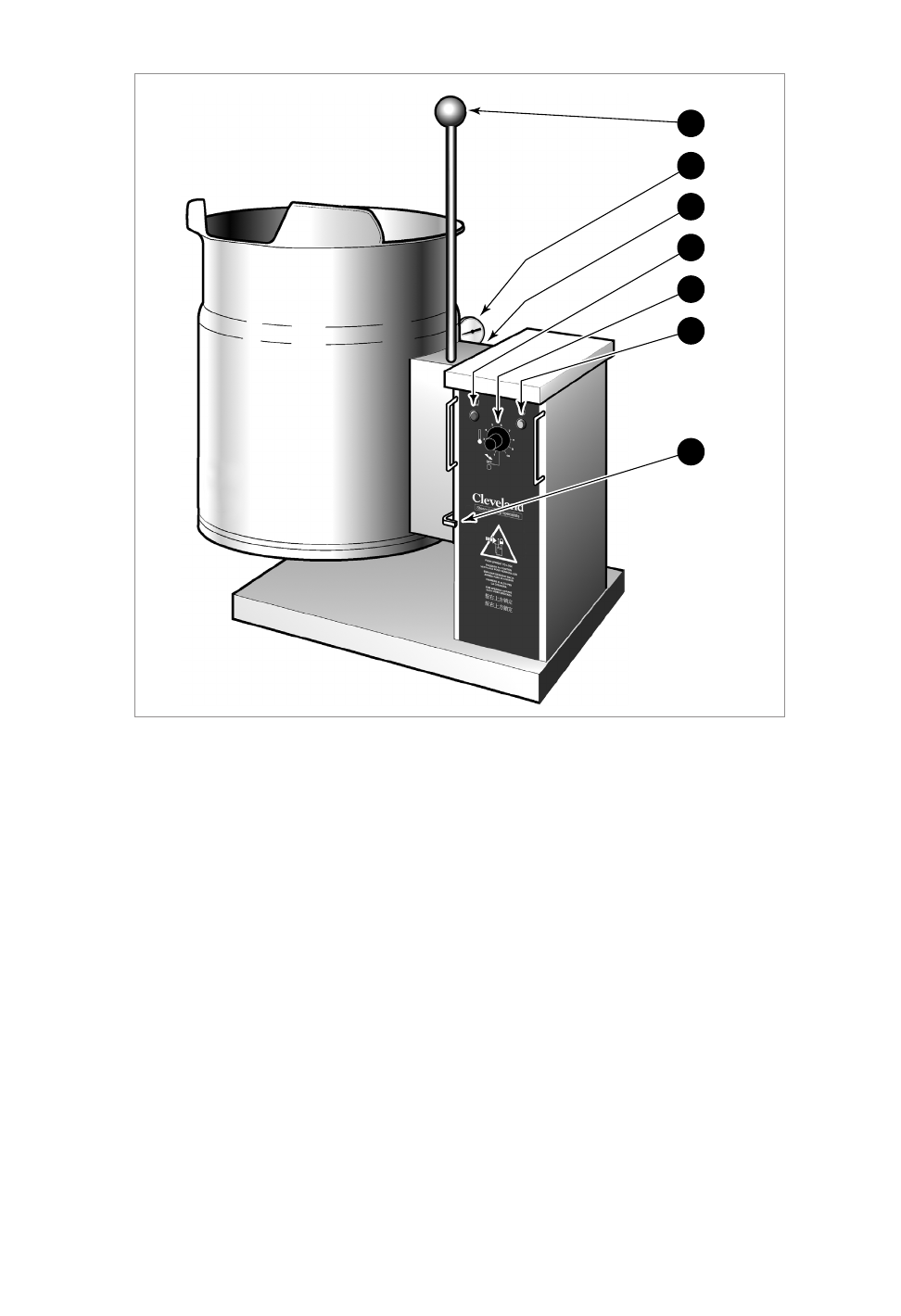

General Parts Drawing
ITEM # DESCRIPTION FUNCTION
1. Tilting Handle Used for tilting the kettle.
2. Vacuum/Pressure Gauge Indicate steam pressure in PSI inside steam jacket as well as
vacuum in inches of mercury.
3. Pressure Relief Valve This valve is used to vent the kettle and in the unlikely event there is
(not shown) an excess steam build-up in the jacket, this valve opens
automatically to relieve this pressure.
4. Low Water Indicator Light (Red) When lit, indicates that the kettle is low on water and will not operate
in this condition (see Reservoir Fill Procedures on page 18 of this
manual).
5. On-Off Switch/ Turns kettle ON/OFF and allows the operator to adjust the kettle
Solid State Temperature temperature in increments from 1 (Min.) to 10 (Max.).
Control (see Temperature Range Chart in the Operating Instructions
section on page 5 of this manual).
6. Heat Indicator Light (Green) When lit, indicates that the kettle's element is on.
Cycles ON-OFF with element.
7. Marine Lock Prevents unit from accidental tilting.
