REF. NO PART NO. DESCRIPTION QTY.
1
A 780080 PUSH BUTTON SWITCH PANEL
B 780081 JOYSTICK PANEL ........................................................... 1
2 781055 TRUCK TO MIXER WIRE ASSEMBLY ............................ 1
3 780123 HYDRAULIC CONTROL VALVE...................................... 1

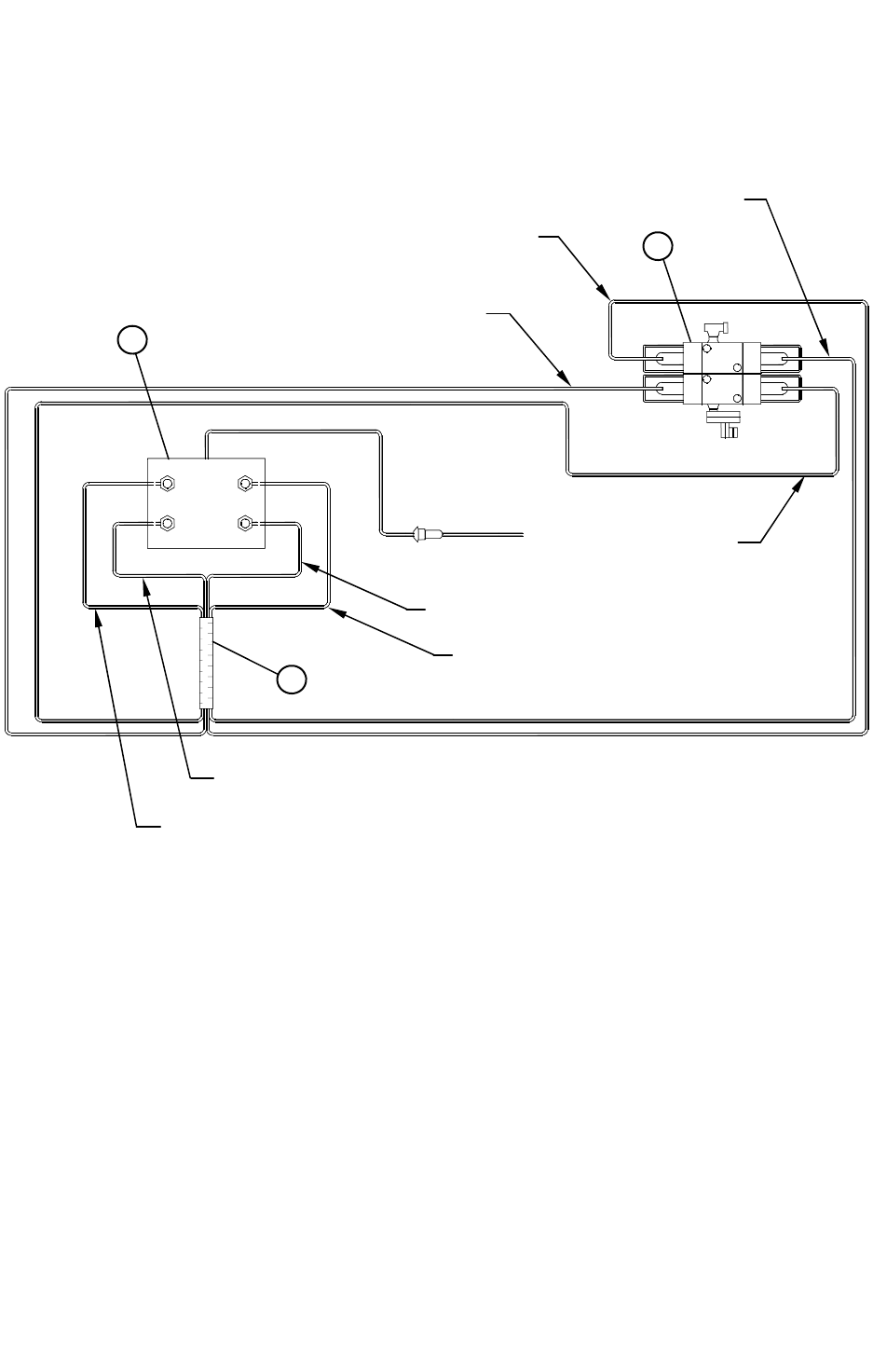

WIRING SCHEMATIC FOR STRAIGHT DOOR
3
1
2
YELLOW
RED
YELLOW
BROWN
GREEN
BROWN
RED
GREEN
