Bravetti 524-15B Mixer User Manual



56

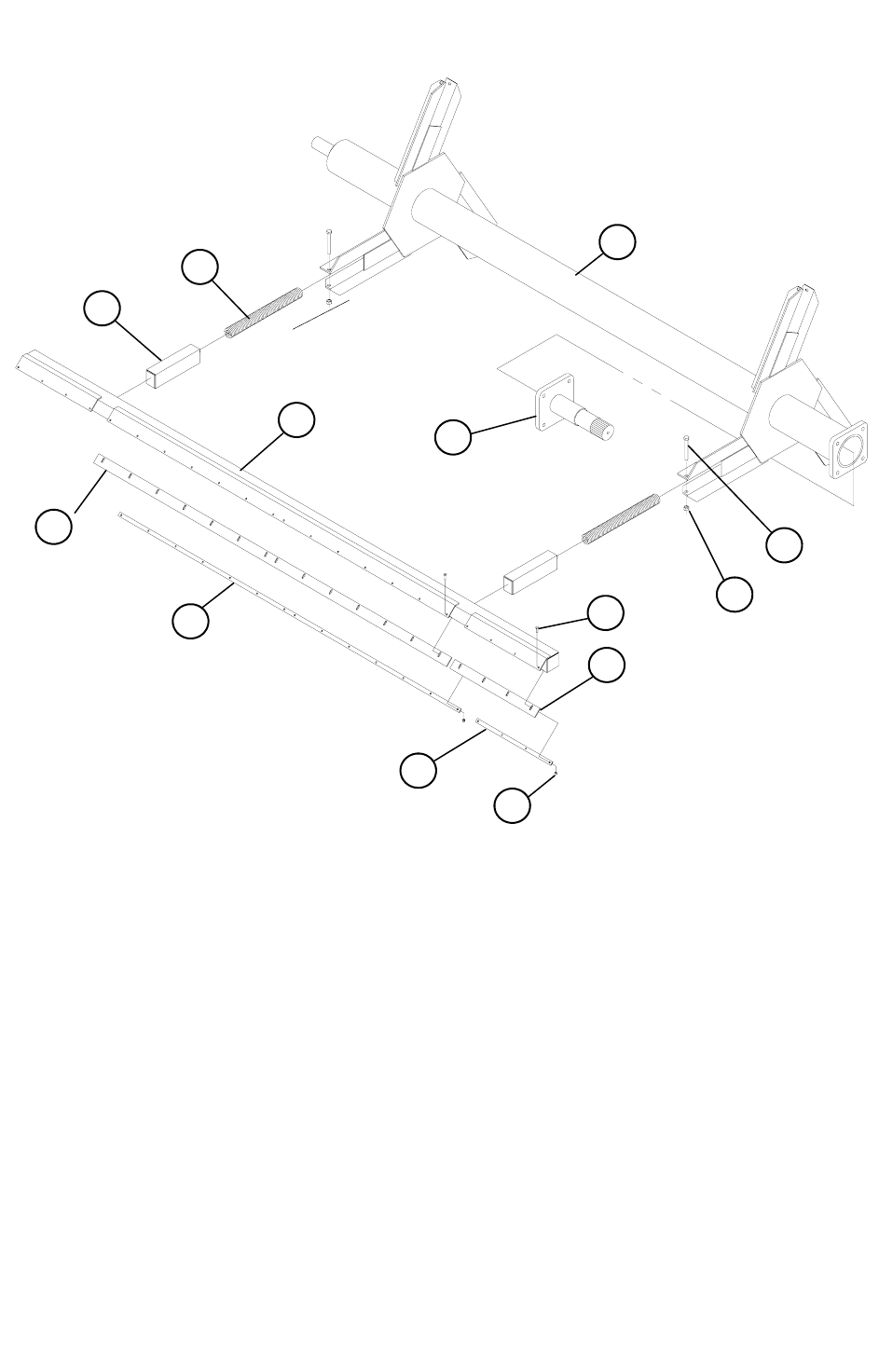

3 ARM ROTOR ASSEMBLY
(FROM SERIAL #890573481 TO PRESENT)
REF. NO PART NO. DESCRIPTION QTY.
1 850122 524 3-ARM ROTOR WELDMENT ..........................................1
2 850125 524 WIPER TUBE WELDMENT .............................................3
3 850007 ROTOR SPRING COVER WELDMENT.................................6
4 150344 END WIPER STRAP.................................................................6
5 150343 CENTER WIPER STRAP.......................................................... 3
6 150346 END PLASTIC WIPER .............................................................6
7 150345 CENTER PLASTIC WIPER......................................................3
8 410005 2 1/2” X 24” X .410” COMPRESSION SPRING......................6
9 406489 3/4”-10 x 6” HHCS ....................................................................6
10 400912 3/4”-10 HEX CTR LOCKNUT..................................................6
11 401106 3/8”-16 NYLOCK HEX NUT...................................................66
12 405654 3/8”-16 x 1-1/4” HHCS.............................................................66
13 850544 ROTOR SHAFT FLANGE WELDMENT ................................1
14 750030 WIPER ASSEMBLY (INCLUDES #’s 2,4,5,6,7,11& 12).....3
1
13
9
10
6
11
2
8
3
12
4
5
7
