Bravetti 524-15B Mixer User Manual



42

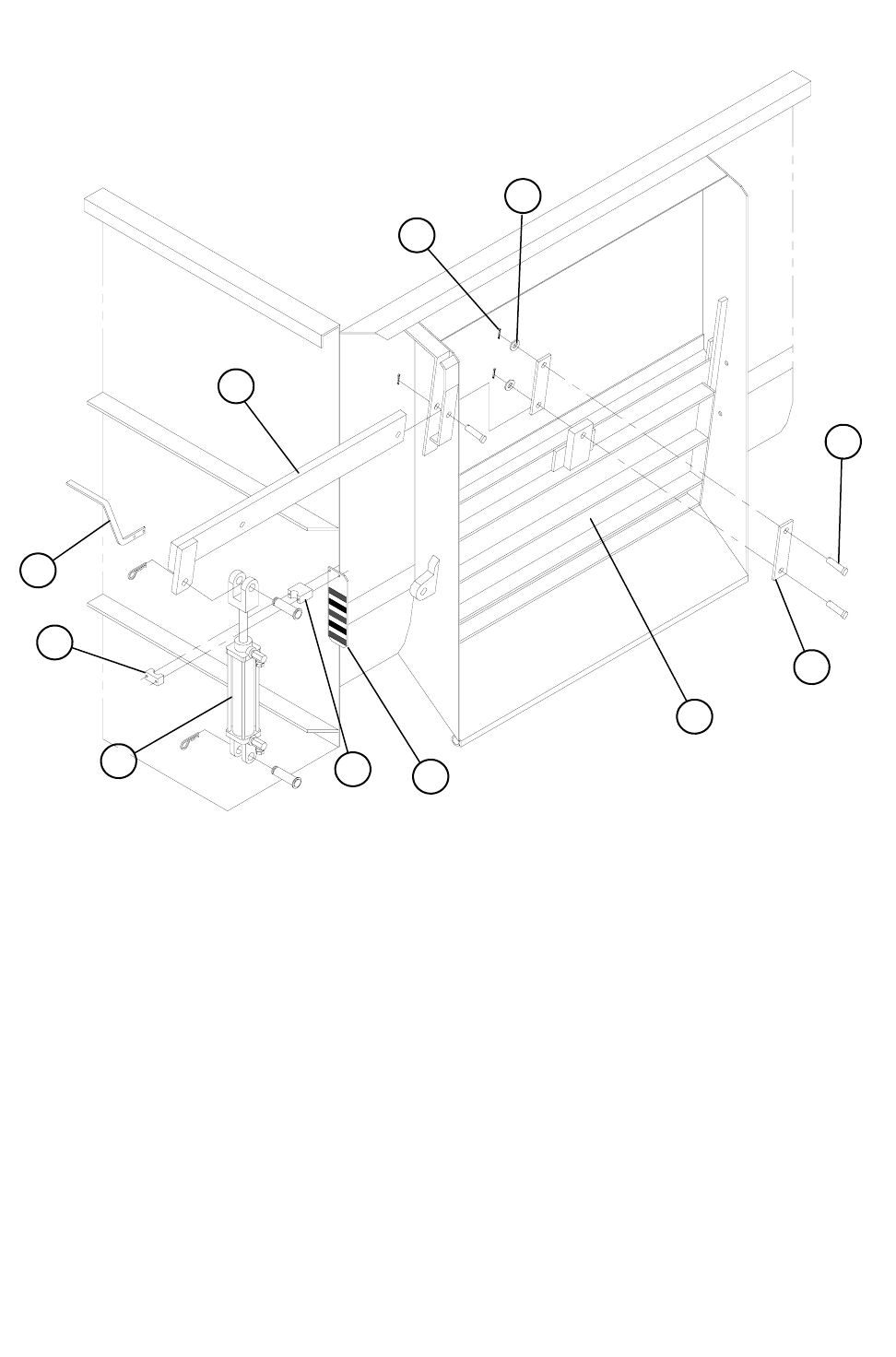

524-15 DISCHARGE DOOR ASSEMBLY
REF. NO PART NO. DESCRIPTION QTY.
1 850140 DISCHARGE DOOR WELDMENT................................... 1
2 850138 DOOR LEVER ARM WELDMENT ................................... 1
3 150049 DOOR ARM...................................................................... 2
4 404351 CLEVIS PIN 3/4” X 2-1/2”................................................. 3
5 404003 COTTER PIN 5/32” X 1 1/4”............................................. 3
6 402512 FLAT WASHER 3/4” SAE................................................. 3
7 184267 DOOR CYLINDER MARKER CLAMP.............................. 1
8 780109 HYDRAULIC CYLINDER 2” X 8” (WITH FITTINGS)........ 1
A 364055 HYDRAULIC CYLINDER 2” X 8” (CYLINDER ONLY)..... 1
B 364954 HYDRAULIC CYLINDER ROD 2” X 8” X 1 1/16” ............. 1
C 364400 HYDRAULIC CYLINDER 2” REPAIR KIT ........................ 1
9 184259 DOOR CYLINDER MARKER PLATE (TRUCK)............... 1
10 150385 DOOR MARKER BAR (TRAILER)................................... 1
1
3
4
6
5
10
7
7
8
9
2
