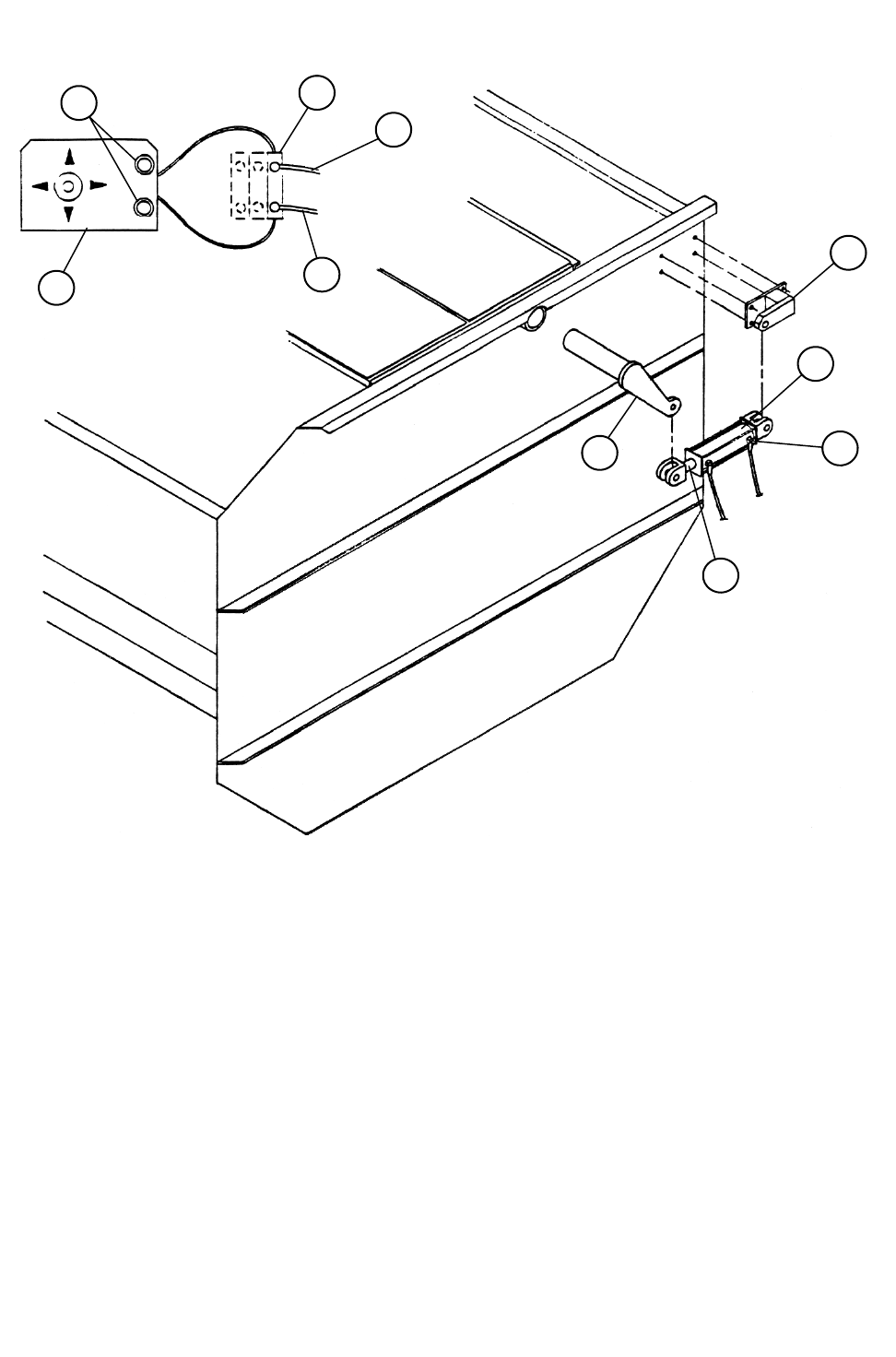

524 ROTO-HAY PROCESSOR ASSEMBLY (HYDRAULIC OPTION)
REF. NO PART NO. DESCRIPTION QTY.
1 188226 FEEDER ELECTRIC CONTROL BRACKET............................ 1
2 357702 PUCH BUTTON SWITCH 12V-2 POLE ...................................1
3 780124 MV5 3rd VALVE ADD ON KIT ..................................................1
4 780109 CYLINDER ASSY, 2” x 8”......................................................... 1
4A 368007 RESTRICTOR FITTING, 3/8” MP x 3/8” FPSW 90° .................2
4B 364954 CYLINDER ROD, 2” x 8” x 1-1/16” DIA ....................................1
4C 364055 CYLINDER, 2” x 8” STROKE.................................................... 1
4D 354400 REPAIR KIT, 2” HYDRAULIC CYLINDER................................ 1
5 781055 TRUCK TO MIXER WIRE ASSEMBLY ....................................1
6 850060 HAY PAN HYD. CYL. BRACKET WELDMENT........................ 1
7 872357 HAY PAN HYDRAULIC ARM WELDMENT.............................. 1
8 781070 HYDRAULIC HOSE ASSY, 3/8” x 87” x 3/8” MP ENDS...........1
9 781097 HYDRAULIC HOSE ASSY, 3/8” x 68” x 38” MP ENDS............1
4C
4A
4B
7
6
9
8
3
2
1
