53
REF. NO PART NO. DESCRIPTION QTY.
1 351056 RUBBER BULB SEAL, 5/32” ................................................ 27’
2 370323 LEVELING PAD .......................................................................4
3 370322 HANDLE STOP.........................................................................2
4 370321 CAM LOCK BUSHING ............................................................2
5 370320 HANDLE CAM LOCK..............................................................2
6 370319 CAM LOCK HANDLE..............................................................2
7 370317 CAM LOCK BOTTOM PLATE................................................4
8 370316 CAM LOCK TOP PLATE.........................................................4
9 189503 CAM LOCK SPACER...............................................................4
10 872639 OIL BATH CENTER CHANNEL.............................................1
11 850585 524 LARGE OIL BATH DOOR................................................1
12 850586 514 SMALL OIL BATH DOOR................................................ 1
13 850575 CAM ROD, LEFT DOOR.......................................................... 1
14 850574 CAM ROD, RIGHT DOOR.......................................................1

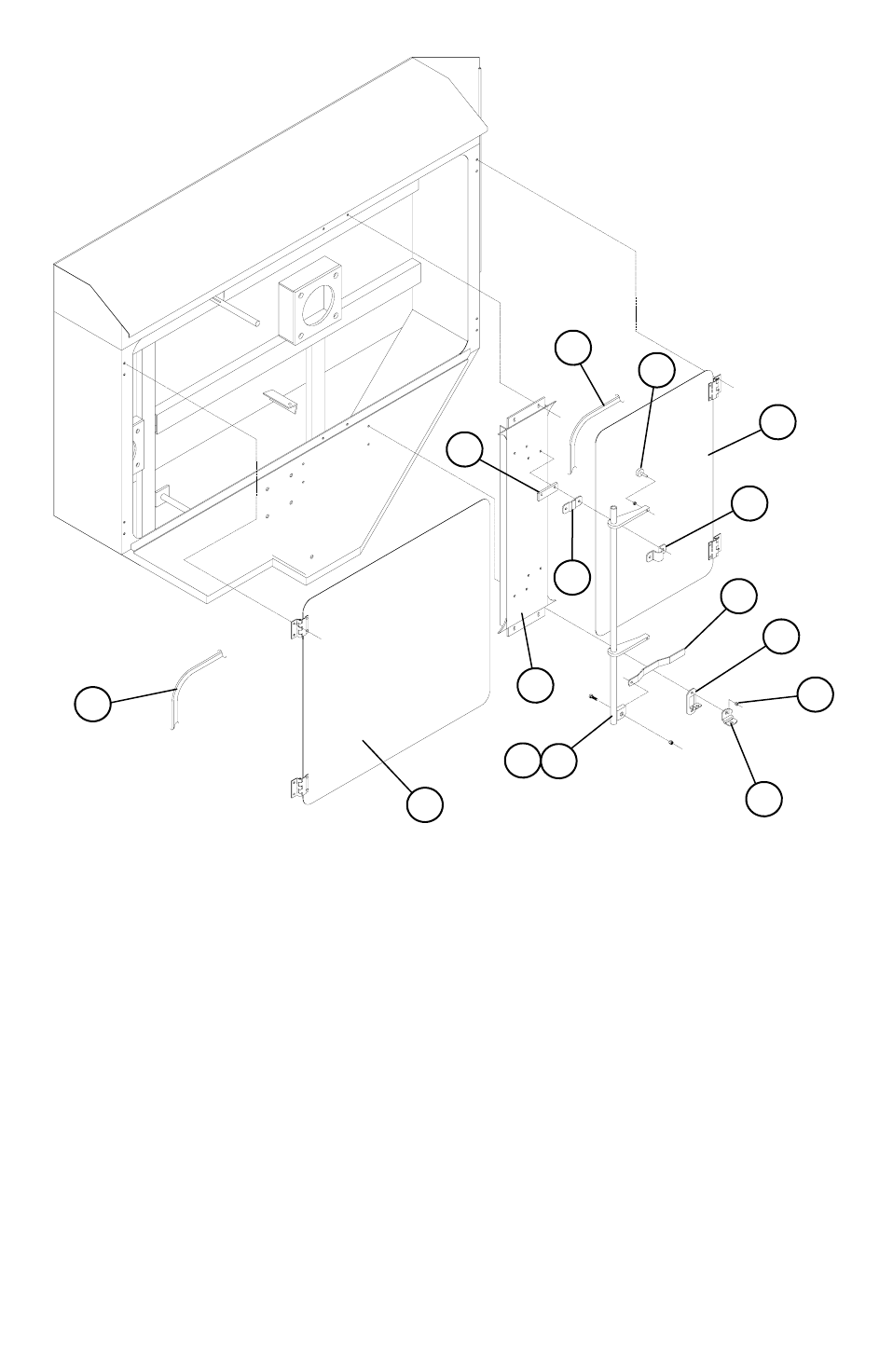

524-15 OIL BATH DOOR ASSEMBLY
11
1
13
14
5
4
10
6
3
8
12
7
2
1
9
