Bravetti 524-15B Mixer User Manual



36

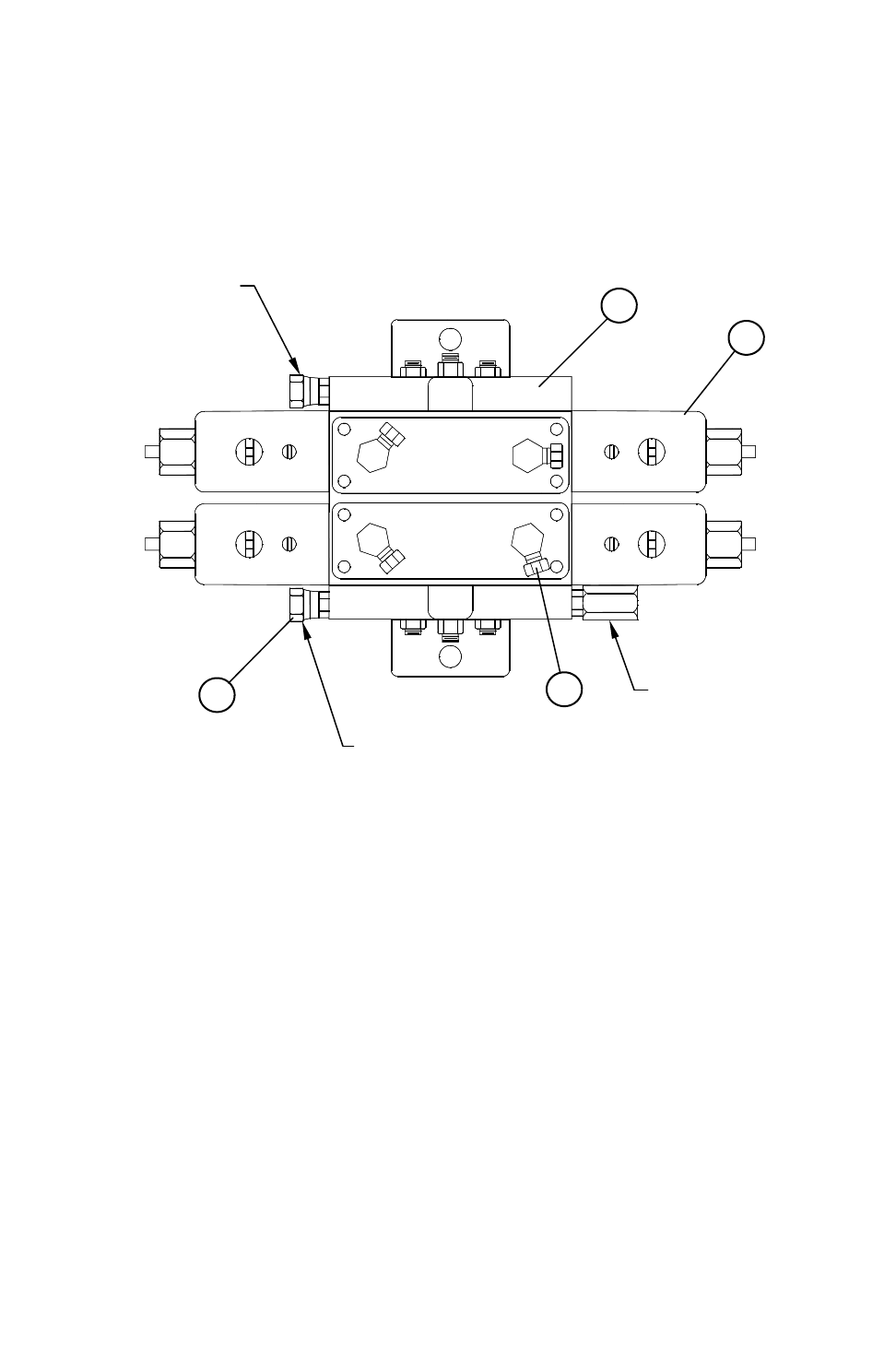

MV5 DOUBLE HYDRAULIC ASSEMBLY
(780123 OLD STYLE)
REF. NO PART NO. DESCRIPTION QTY.
1 362209 HYDRAULIC VALVE 12V DOUBLE .................................1
1A 362206 12V SING MV5 HYD VLV MVSR 1500-10-50-12-TD....... 2
2 368030 FITTING, 9/16”MOR x 3/8” FPSW 90° .............................4
3 368115 FITTING, 9/16” MOR x 3/8” FPSW STRT ........................2
1A
1
2
3
OUTLET
INLET
BUILT IN PRESSURE
RELIEF PRESET TO
1500 PSI
