REF. NO PART NO. DESCRIPTION QTY.
1A 850106 17” SPOUT WELDMENT..........................................................1
1B 850093 20” SPOUT WELDMENT..........................................................1
2 150299 SPOUT MAGNET GUARD .......................................................1
3 357005 ARCO PLATE MAGNET AM 2200 ...........................................2
4 400205 HEX NUT, 5/16”-18..................................................................20
5 402005 LOCKWASHER, 5/16” .............................................................20
6 402405 FLAT WASHER USS, 5/16”......................................................4
7 407021 CARRIAGE BOLT, 5/16”-18 x 1” .............................................18
8 407022 CARRIAGE BOLT, 5/16”-18 x 1-1/4” ........................................2

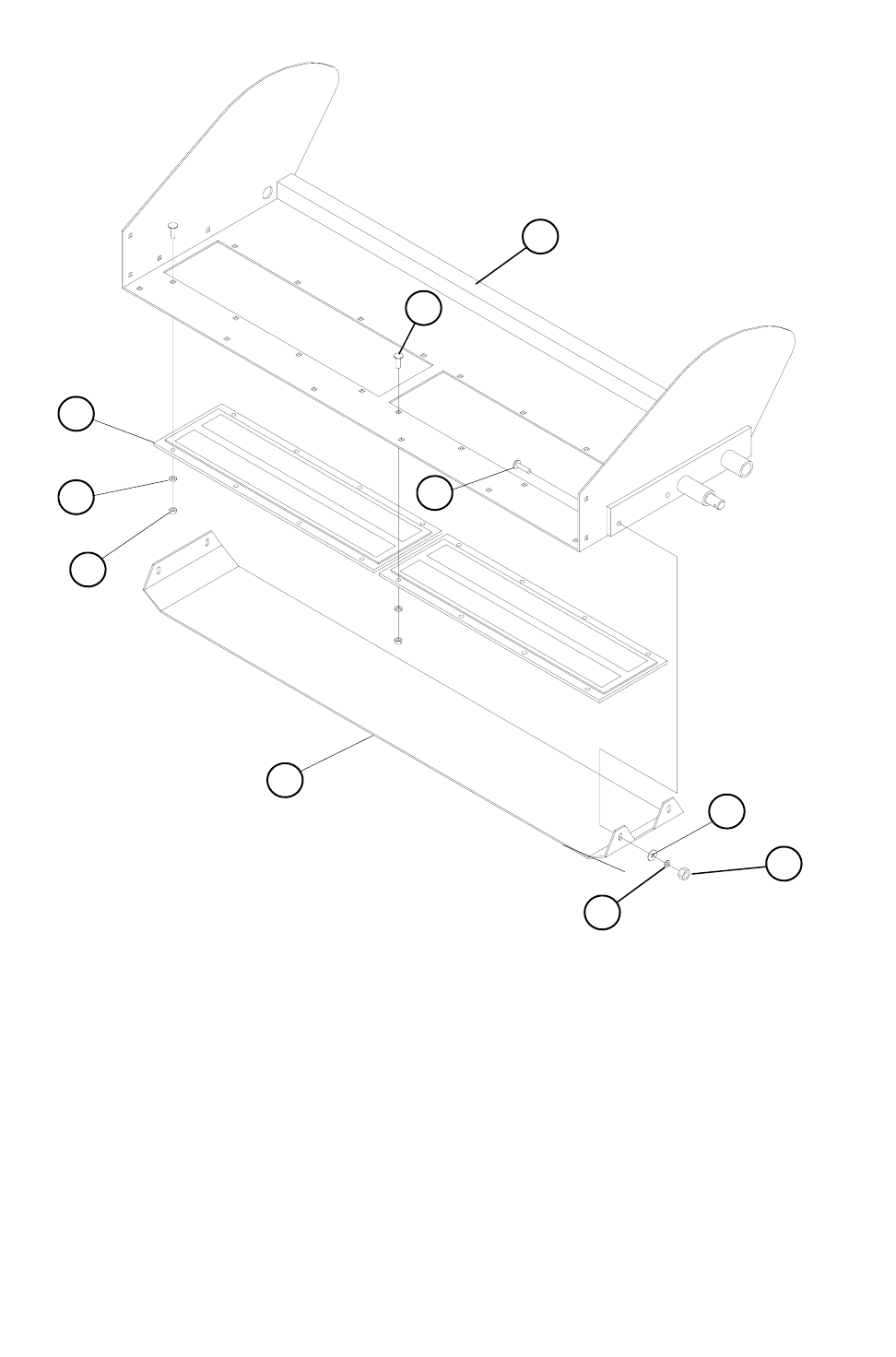

SPOUT MAGNET ASSEMBLY
6
5
8
3
2
1
7
4
4
5
