Setting the Address Switch
The logical address switch (LADDR) factory setting is 120. You may have
changed the setting during module installation. Valid address values are
from 0 to 255. If the Microwave Switch modules are used in a HP
E1300/E1301 Mainframe, refer to the HP 75000 Series B System
Installation and Getting Started Guide for addressing information.
Otherwise, use Figure 2-1 to change the setting.
Note The address switch selected value must be a multiple of 8 if the module is
the first module in a "switchbox" used in a VXIbus mainframe, and being
instructed by SCPI commands.

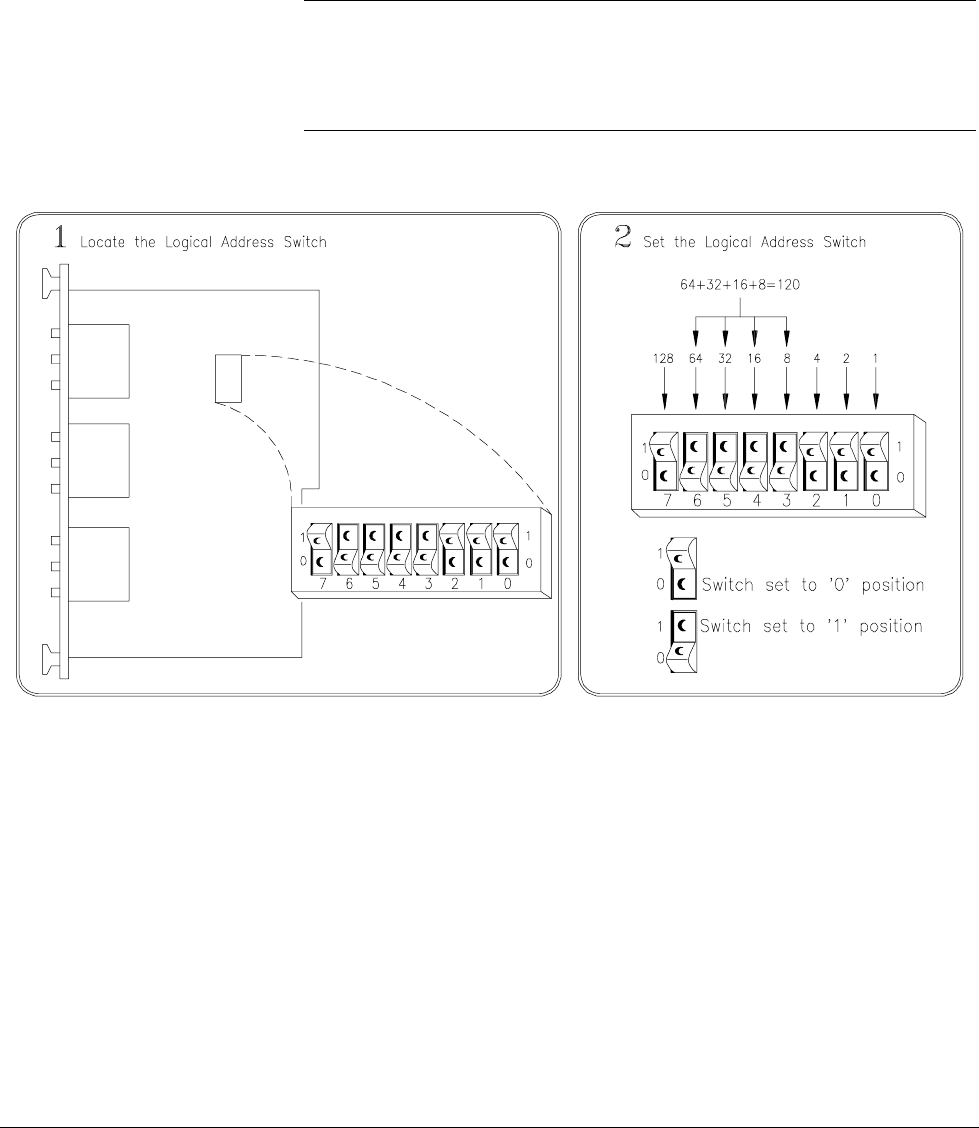

Figure 2-1. Logical Address Selection
18 Configuring the HP E1368A/69A/70A Modules Chapter 2
