III. Technical Information

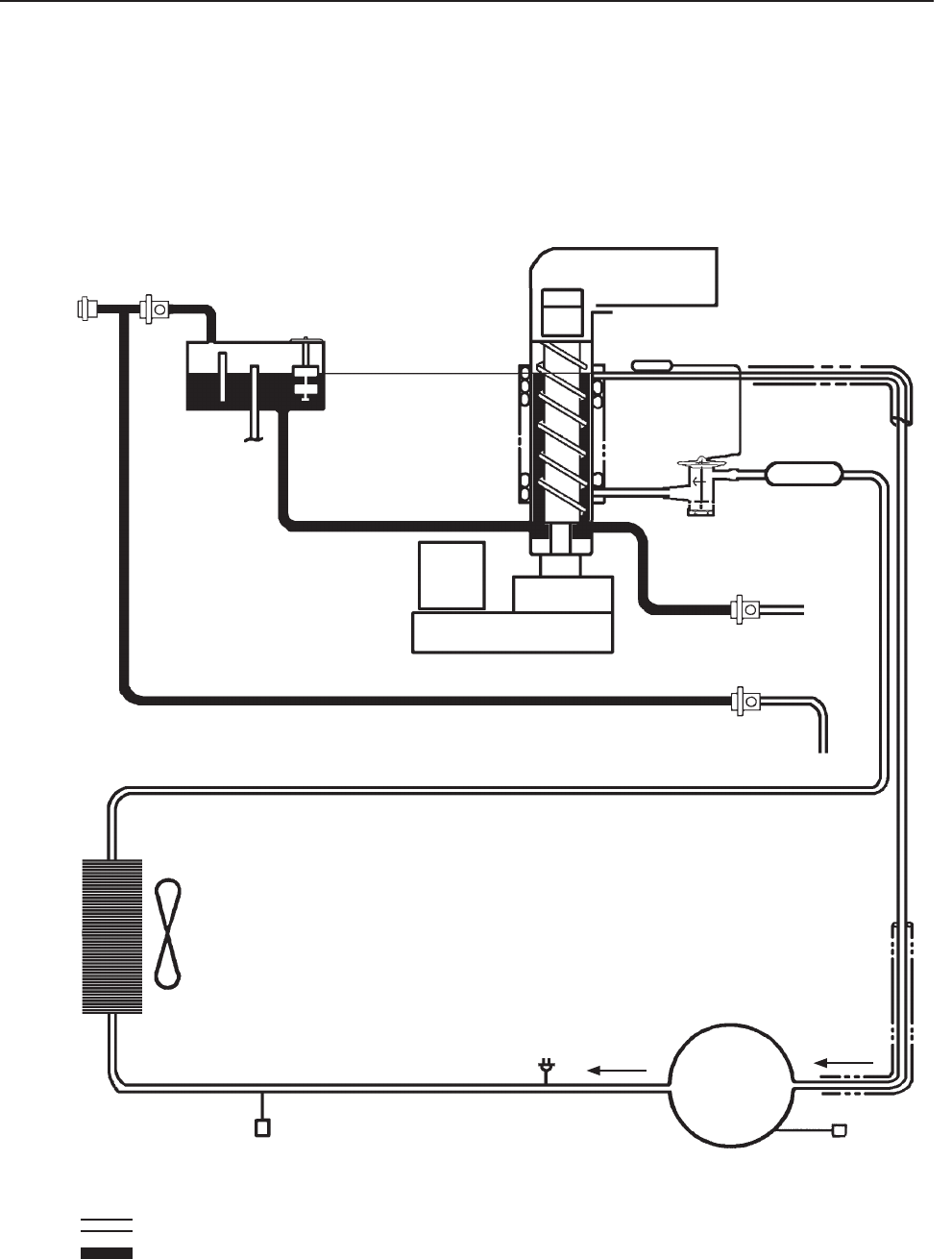

A. Water Circuit and Refrigeration Circuit
Inlet
Water
Valve
Dispense
Water Valve
Drain
Valve
Float Switch
Water Level
To Drain
Evaporator
Spout
Expansion
Valve
Gear Motor
Overow
Reservoir
Water Supply
Drier
Condenser
Fan Motor
High-Pressure Switch
Access
Valve
Access
Valve
Compressor
Refrigeration Circuit
Water Circuit
