TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
Step 1: Basic Recorder Connections (continued)

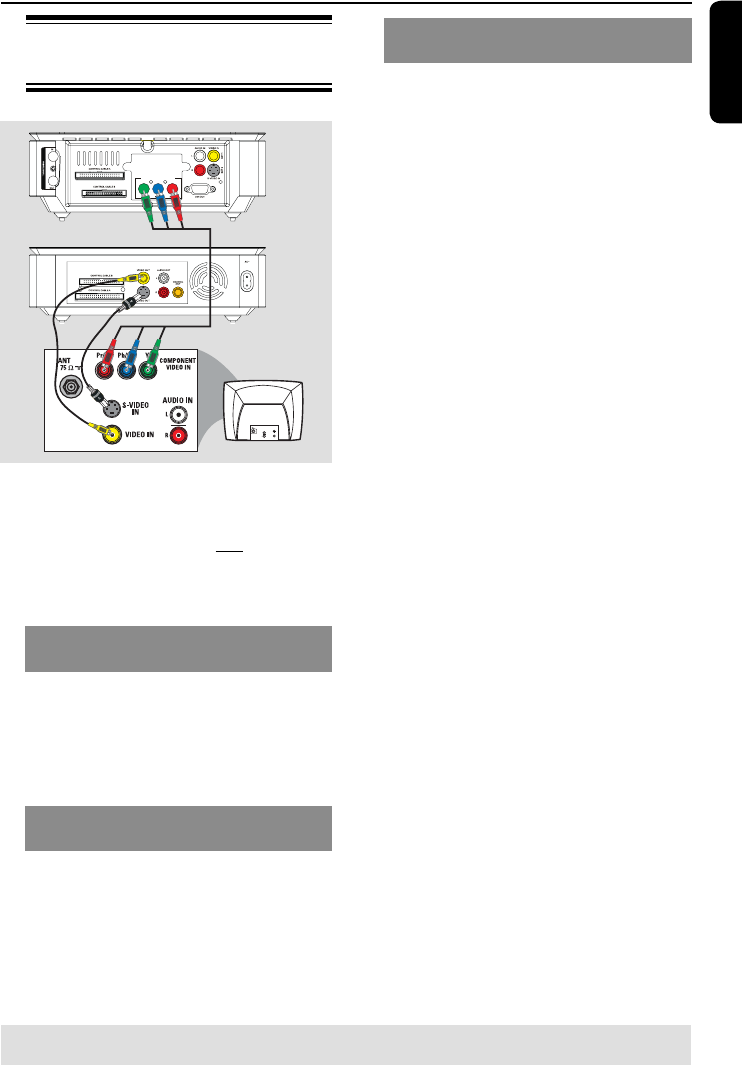

G Connecting the video
cable(s)
COMPONENT VIDEO OUT
AUDIO
OUT
S-VIDEO
IN
VIDEO IN
TV
This connection enables you to view the
disc playback from the recorder.
You only need to choose one of the
options below to make your video
connection.
(good picture quality)
Option 1: Using Video (CVBS) jack
(good picture quality)
Use the supplied composite video cable
(yellow) to connect the VIDEO OUT
jack on the recorder to the video input
jack (or labeled as A/V In, Video In or
Composite) on the TV.
Option 2: Using S-Video jack
(excellent picture quality)
Use an S-video cable (not supplied) to
connect the S-VIDEO OUT jack on the
recorder to the S-Video input
jack (or labeled as Y/C or S-VHS) on
the TV.
Option 3 : Using Component Video
jack (best picture quality)
A
Use the component video cables (red/
blue/green - not supplied) to connect the
COMPONENT VIDEO OUT (Y Pb/
Cb Pr/Cr) jacks on the recorder to the
corresponding component video input
jacks (or labeled as Y Pb/Cb Pr/Cr or
YUV) on the TV.
B
If your TV accepts Progressive Scan signal,
see “Setup Menu Options - VIDEO
settings” for detailed Progressive Scan set
up.
IMPORTANT!
The progressive scan video quality is
only available through a Y P
B
P
R
connection and a progressive TV is
required. It is strongly advised to
complete the recorder installation
rst, before enabling the progressive
scan feature.
Option 1
Option 2
Option 3
